Component Locations

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 10 .

Fig 1: Locating Engine Performance-Related Components (Diamante)
G00170007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

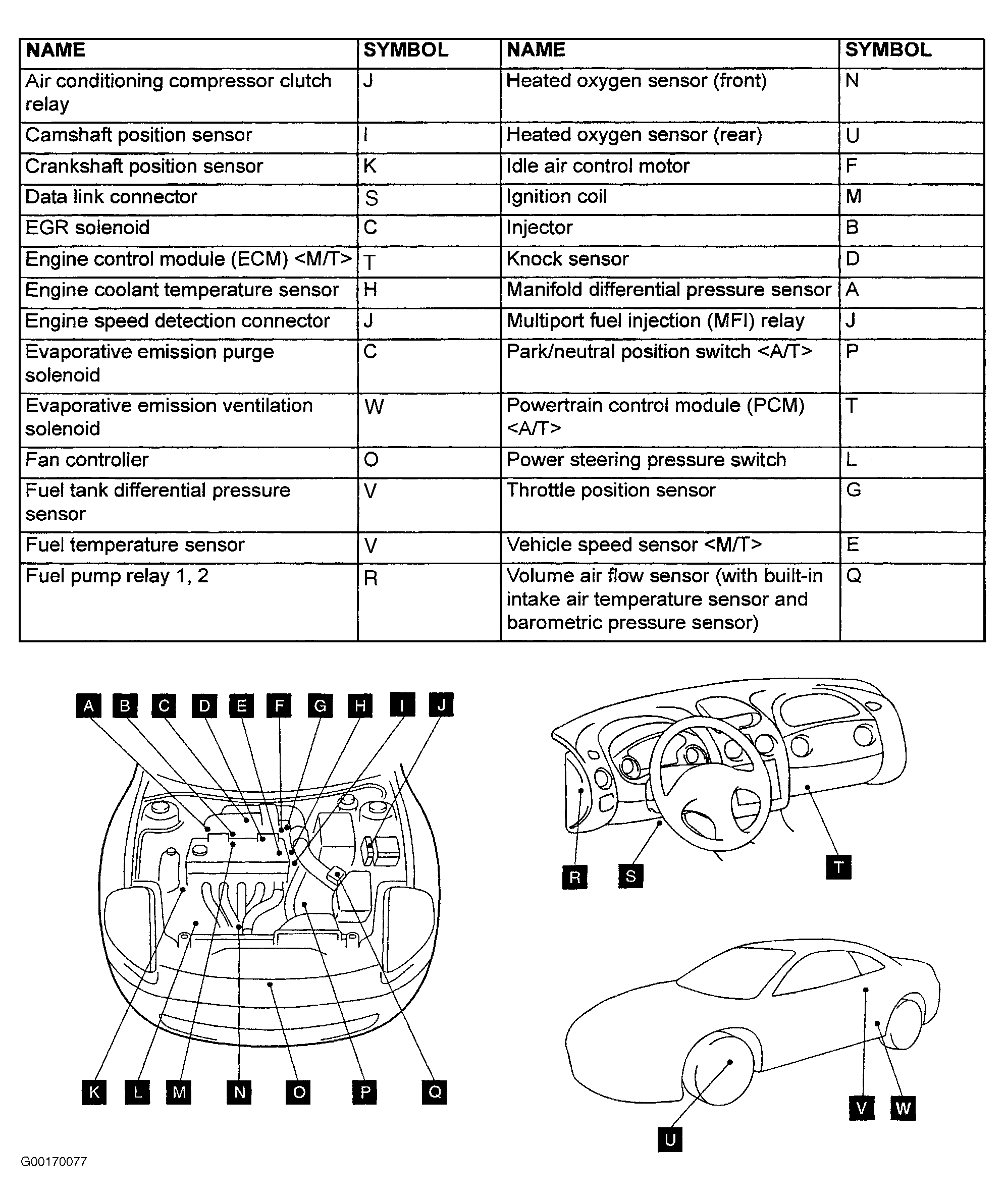

Fig 2: Locating Engine Performance-Related Components (Eclipse 2.4L)
G00170077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

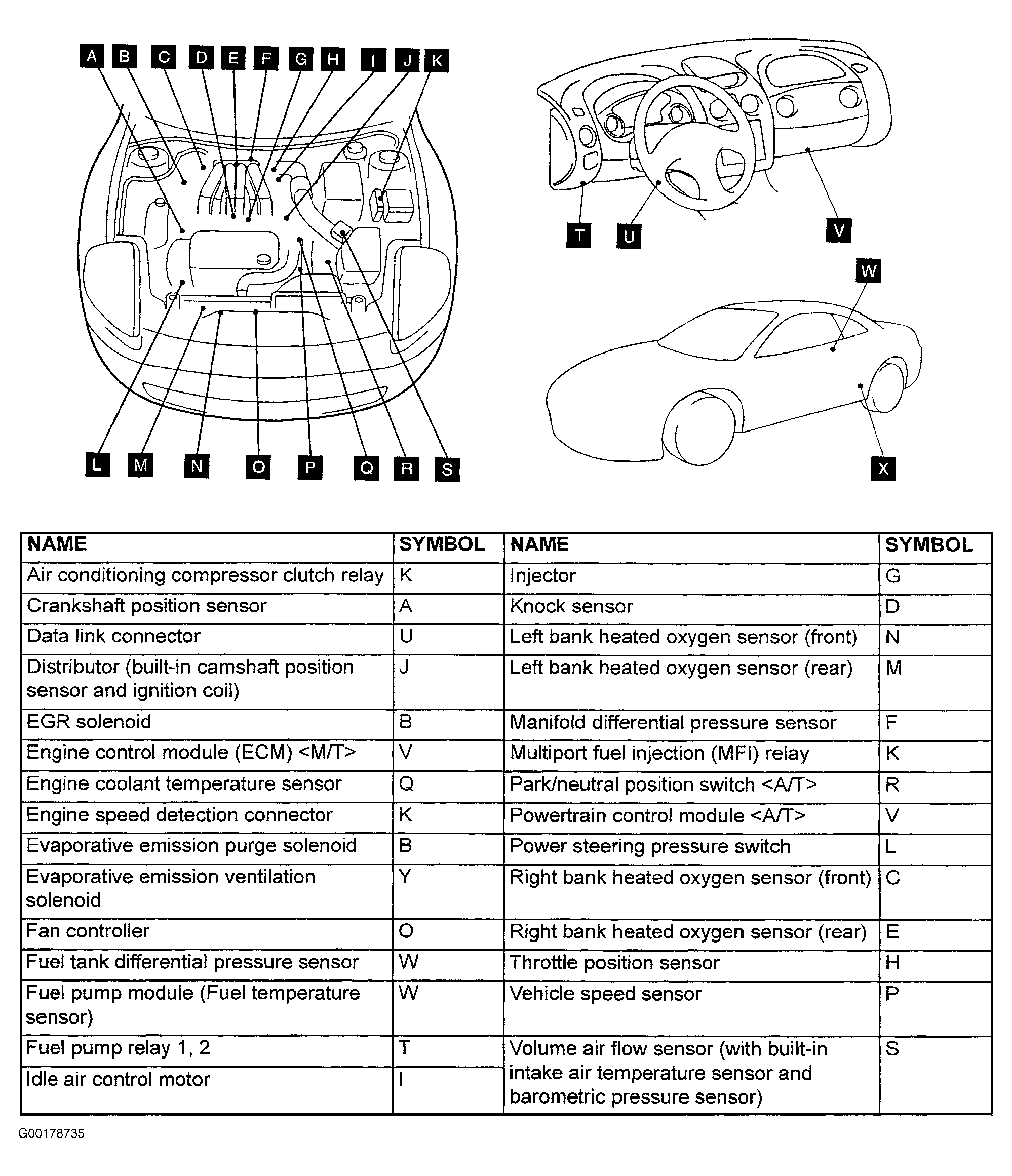

Fig 3: Locating Engine Performance-Related Components (Eclipse 3.0L)
G00178735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

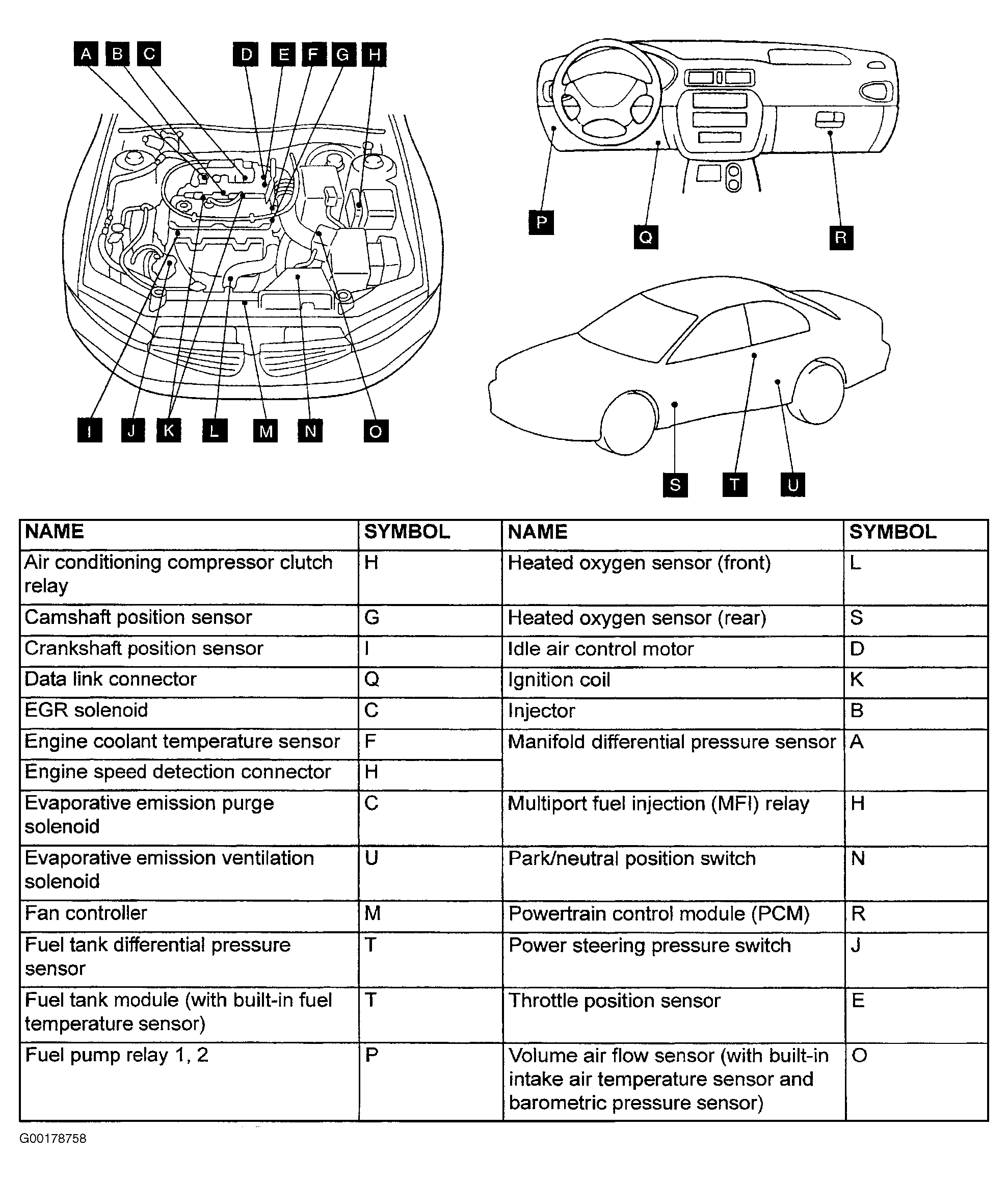

Fig 4: Locating Engine Performance-Related Components (Galant 2.4L)
G00178758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

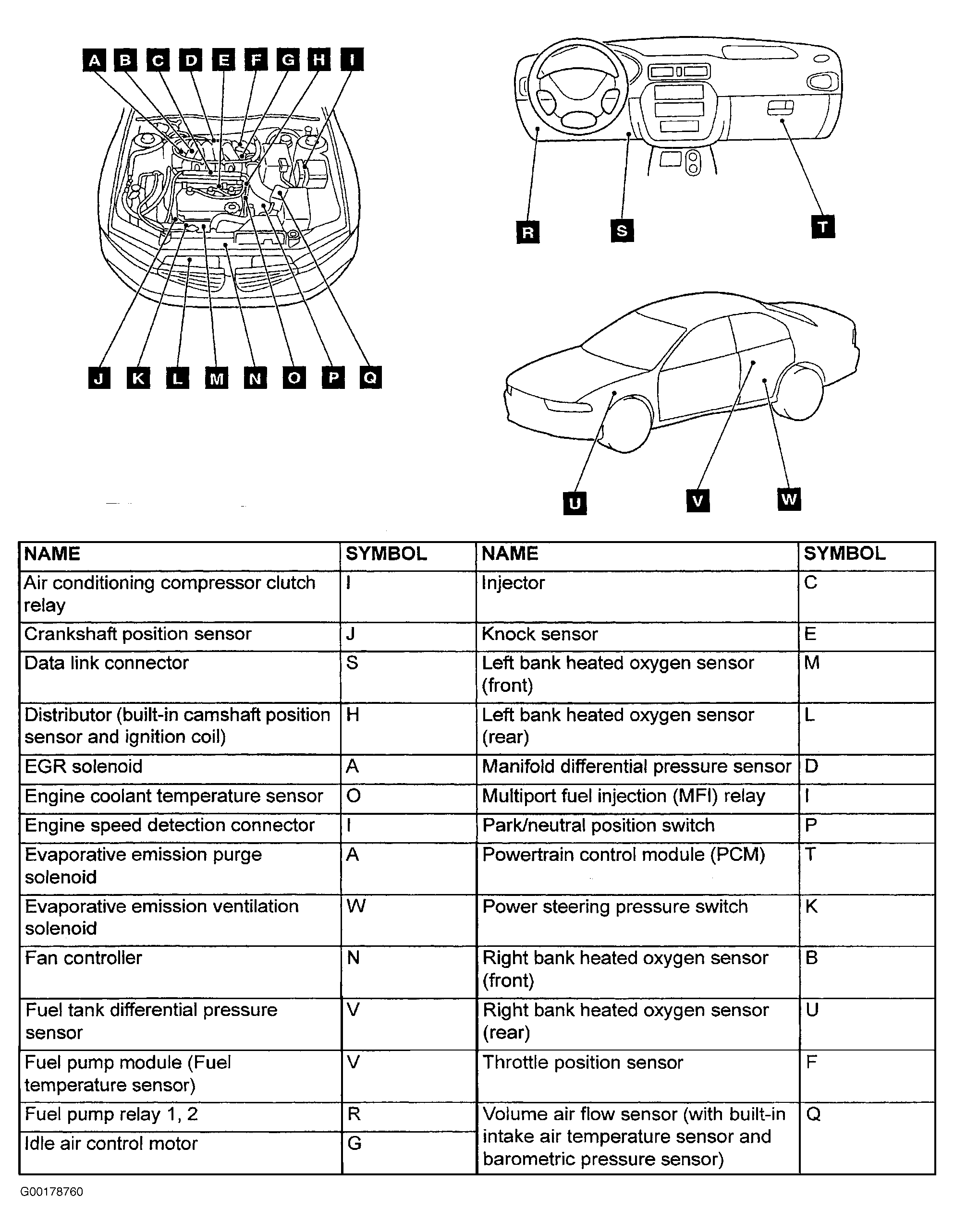

Fig 5: Locating Engine Performance-Related Components (Galant 3.0L)
G00178760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 6: Locating Engine Performance-Related Components (Lancer)
G00170056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 7: Locating Engine Performance-Related Components (Mirage 1.5L)
G00170028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

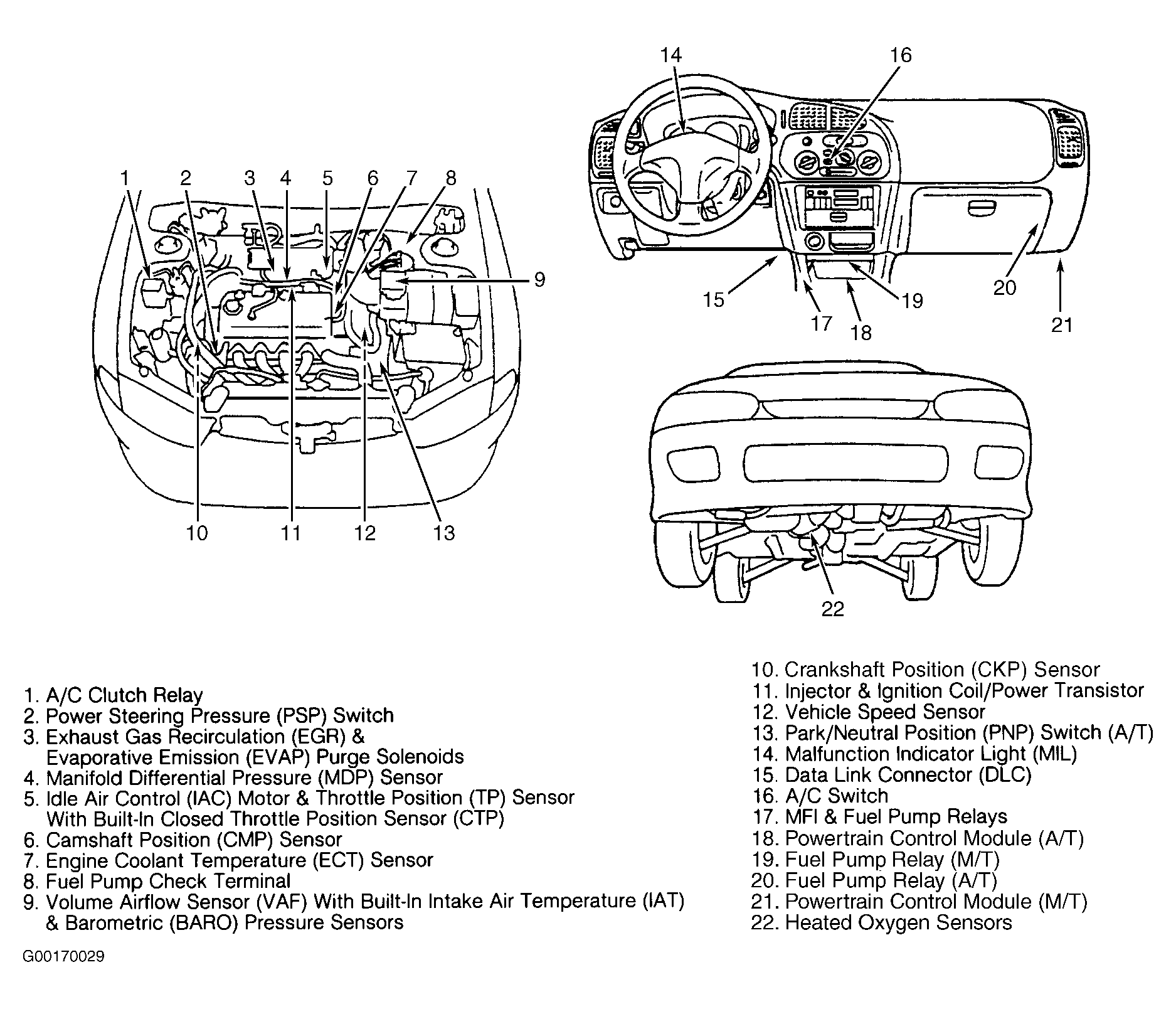

Fig 8: Locating Engine Performance-Related Components (Mirage 1.8L)
G00170029Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 9: Locating Engine Performance-Related Components (Montero)
G00156255Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

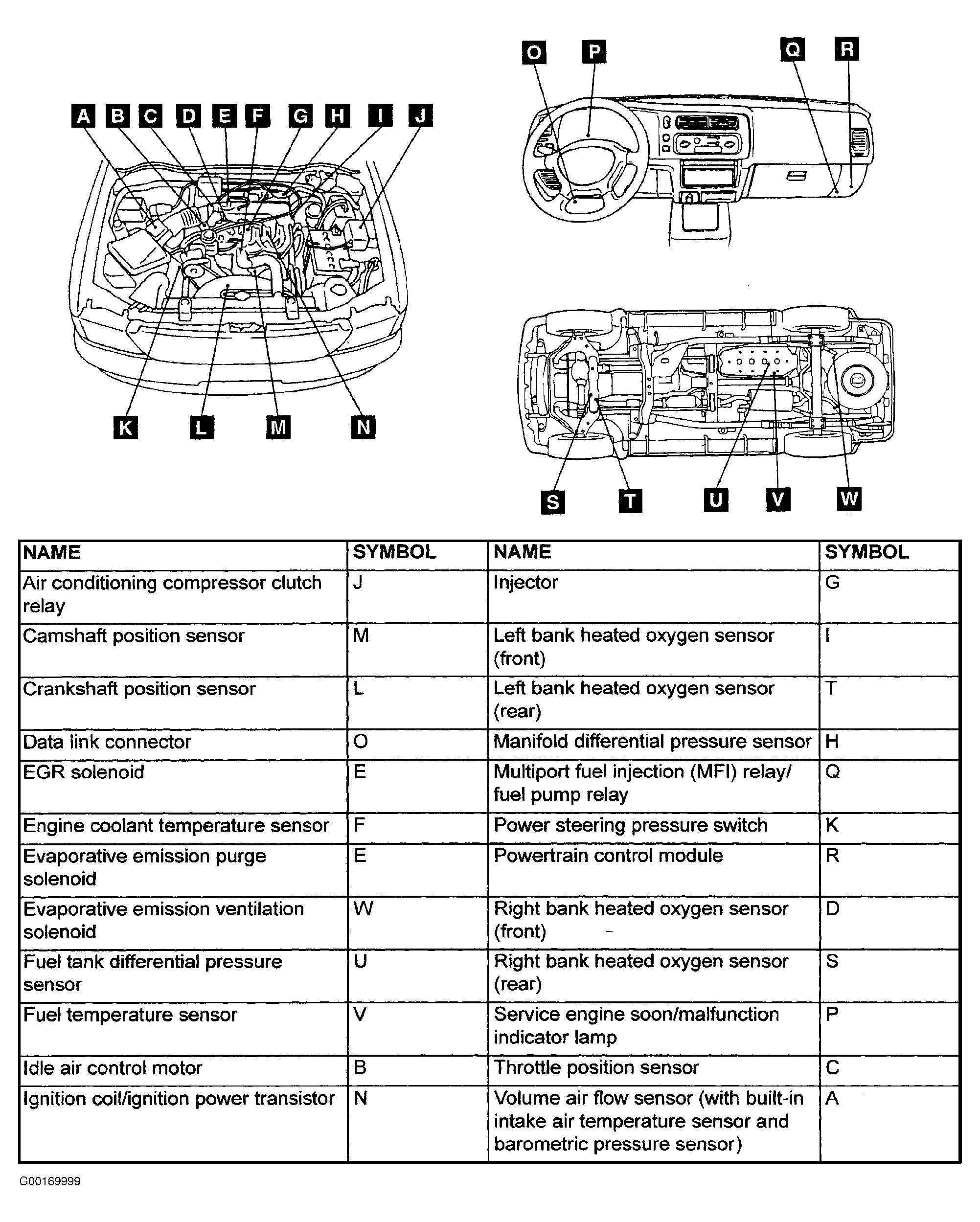

Fig 10: Locating Engine Performance-Related Components (Montero Sport)
G00169999Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
