>>P<< 5TH Speed-Reverse Synchronizer Hub Installation

Set the output shaft on the press support stand.
Make sure that the synchronizer ring is fitted correctly on the cone of the 5th speed gear.
Check that the 5th speed-reverse synchronizer hub is oriented correctly for installation, and fit it on the output shaft.

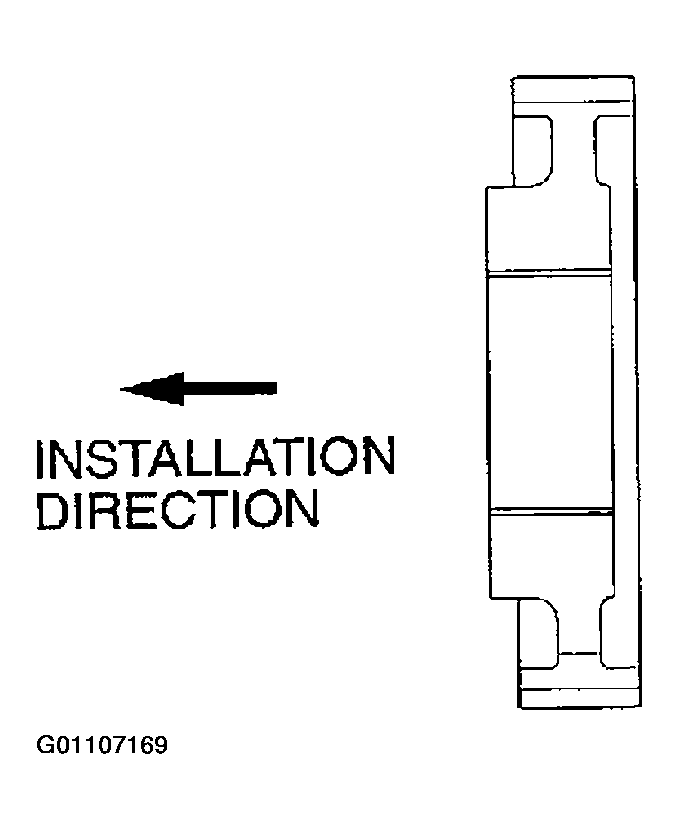

Fig 1: Identifying 5th Speed-Reverse Synchronizer Hub Installation Direction
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD98812, MD998813, MD998819 < F5M42 >, MD998821 < F5M51 > and MD998364 < F5M51 >, press install the 5th speed-reverse synchronizer hub with the press.

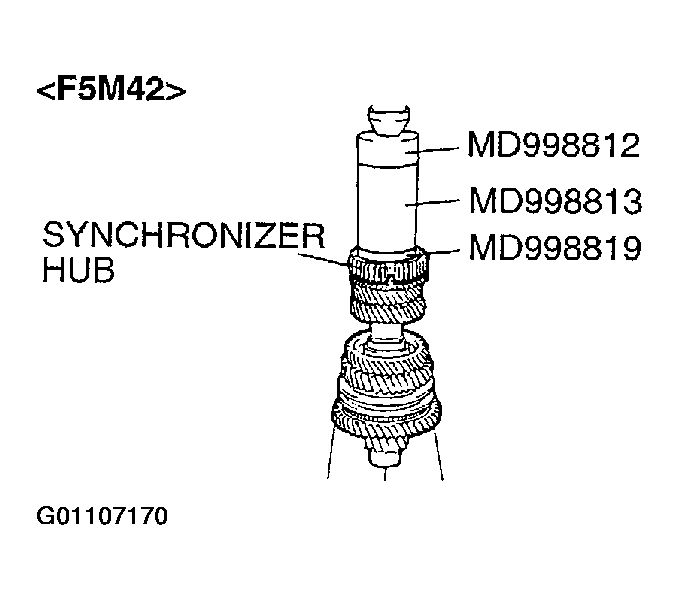

Fig 2: Installing 5th Speed-Reverse Synchronizer Hub (F5M42)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

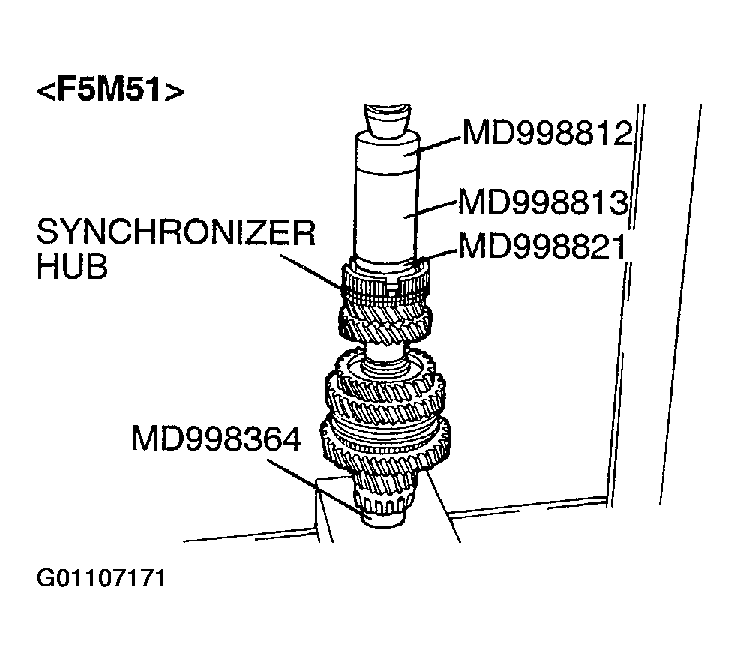

Fig 3: Installing 5th Speed-Reverse Synchronizer Hub (F5M51)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Make sure that the synchronizer ring on the 5th speed gear side can rotate freely.
