Disassembly And Assembly: Notes

For select lever disassembly procedures, follow numbered steps in illustration. See Fig 1. For select lever assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while assembling select lever. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .

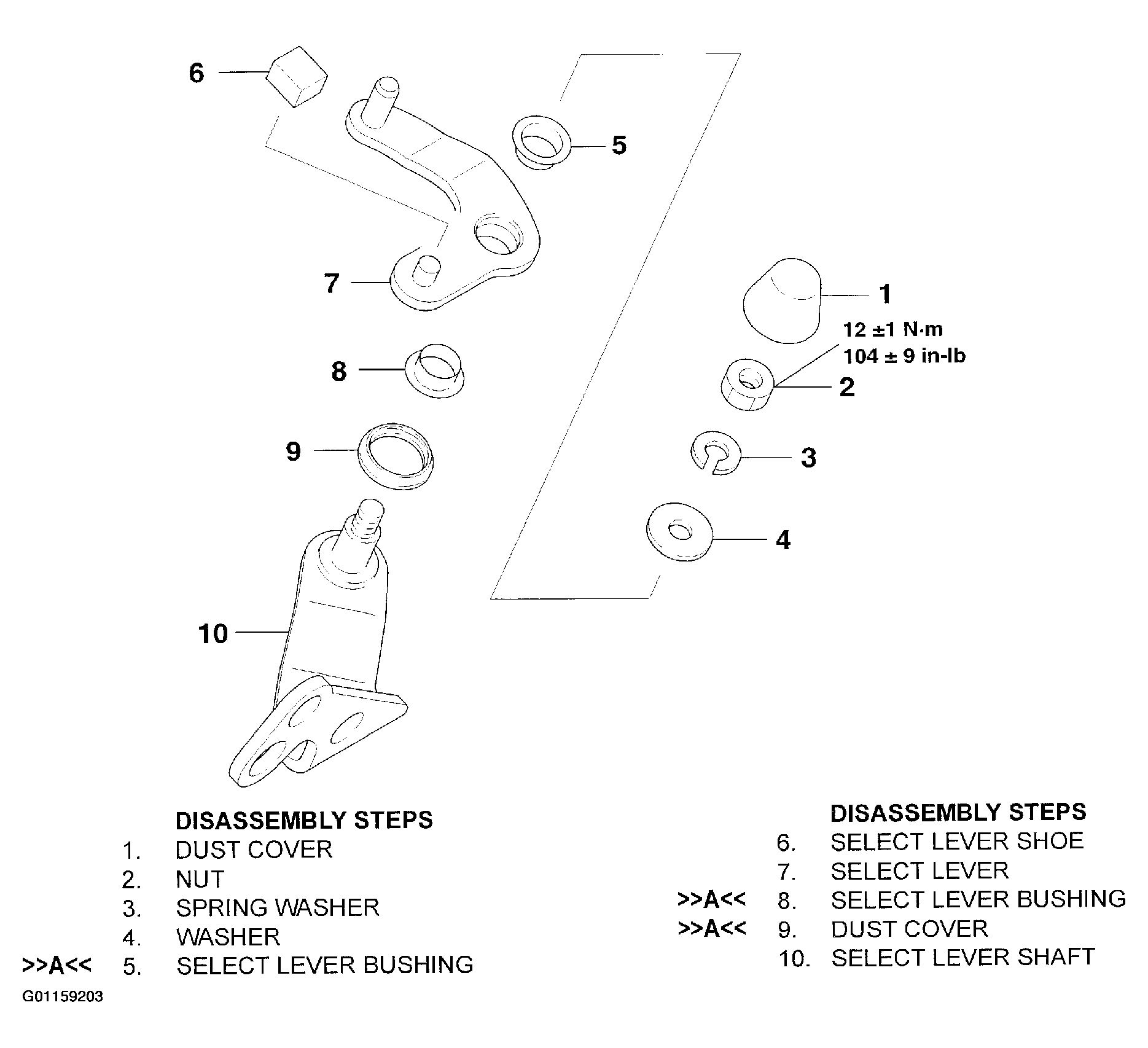

Fig 1: Exploded View Of Select Lever

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
