Interior Light Automatic Shut-Down Function Circuit Connector End Views

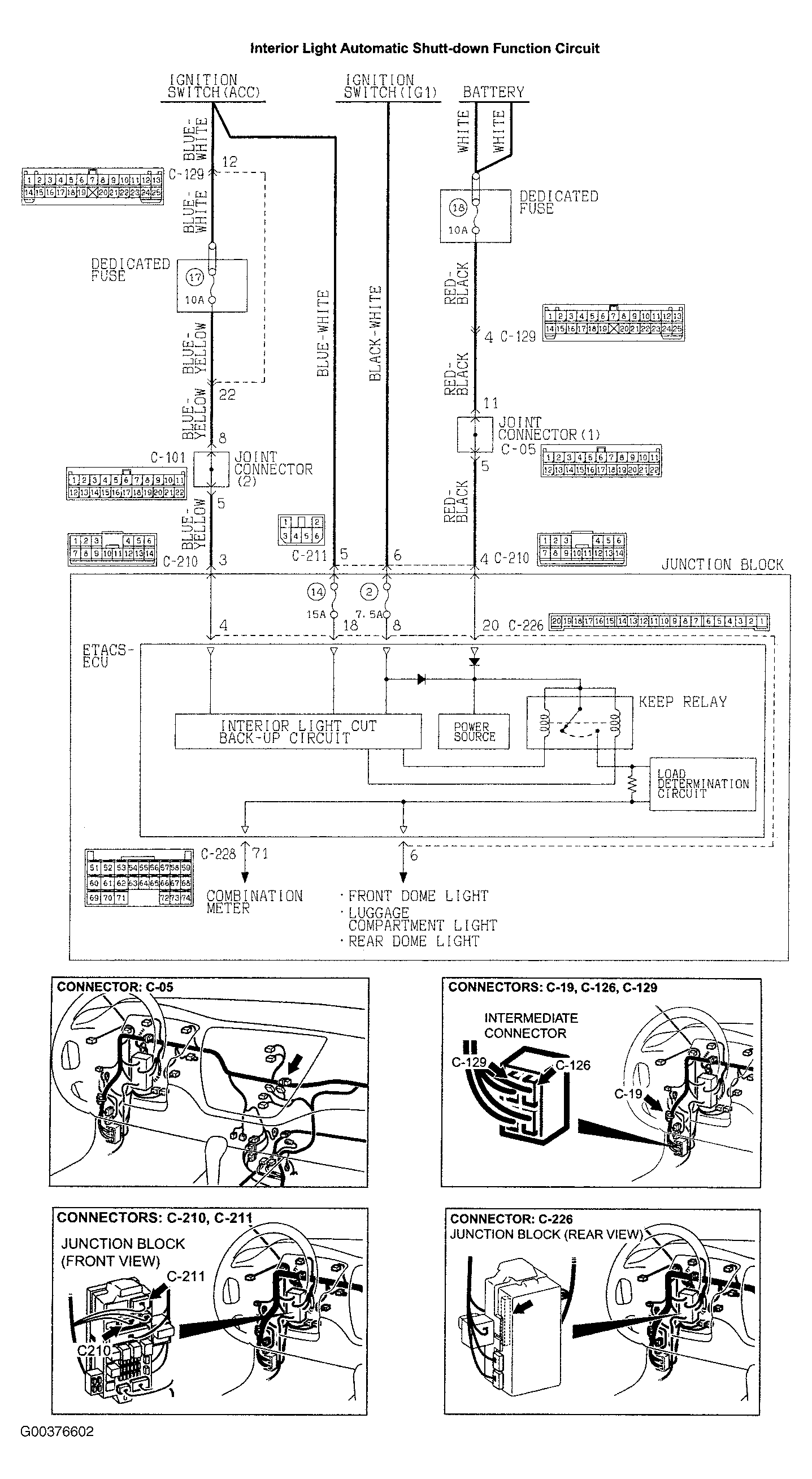

Fig 1: Interior Light Automatic Shut-Down Function Circuit Connector End Views
G00376602Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
