Removal & Installation (Mirage A/T)

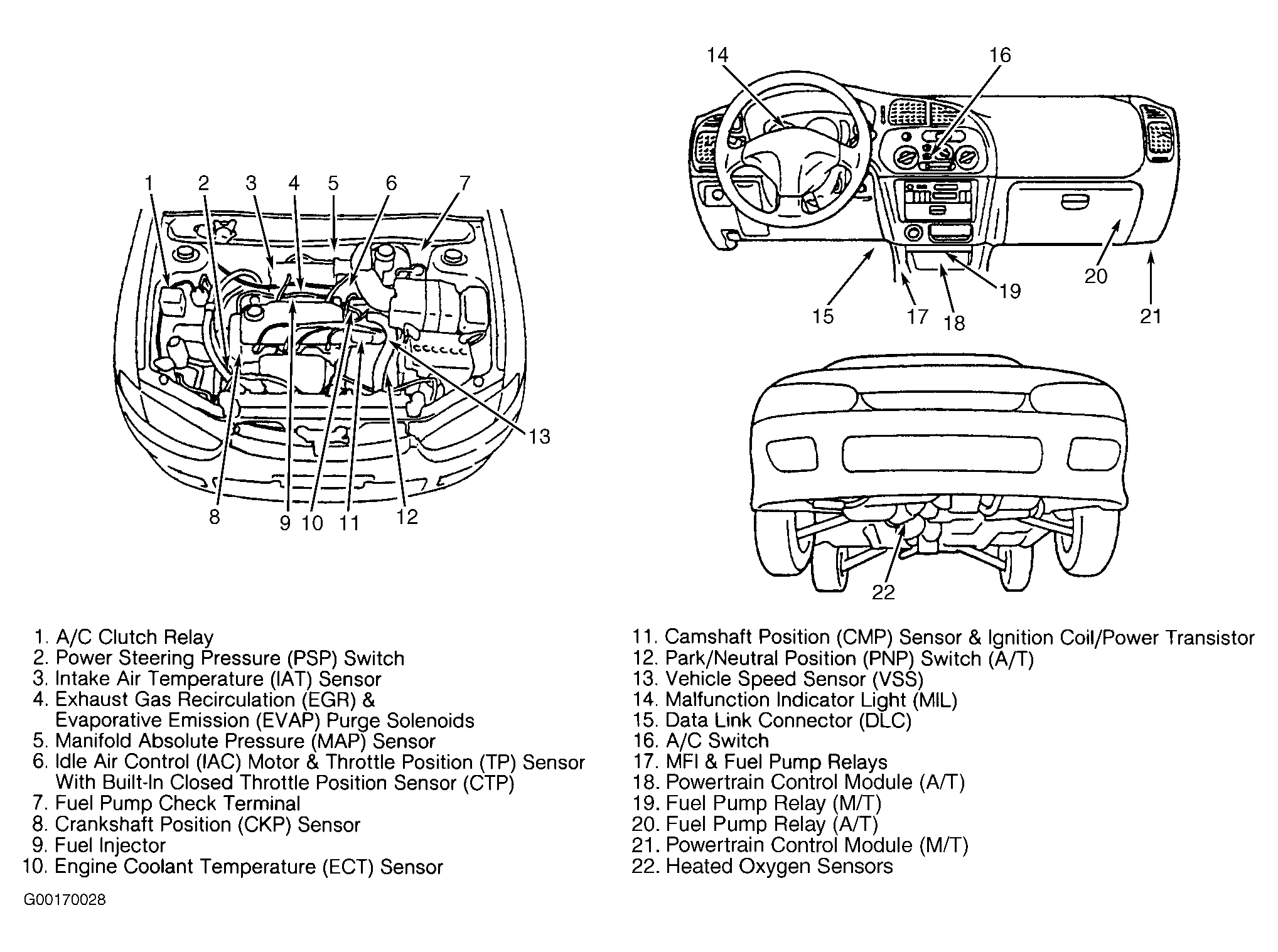

Powertrain Control Module (PCM) is located under center of instrument panel. See Figure. To remove and install PCM, see Fig 1.

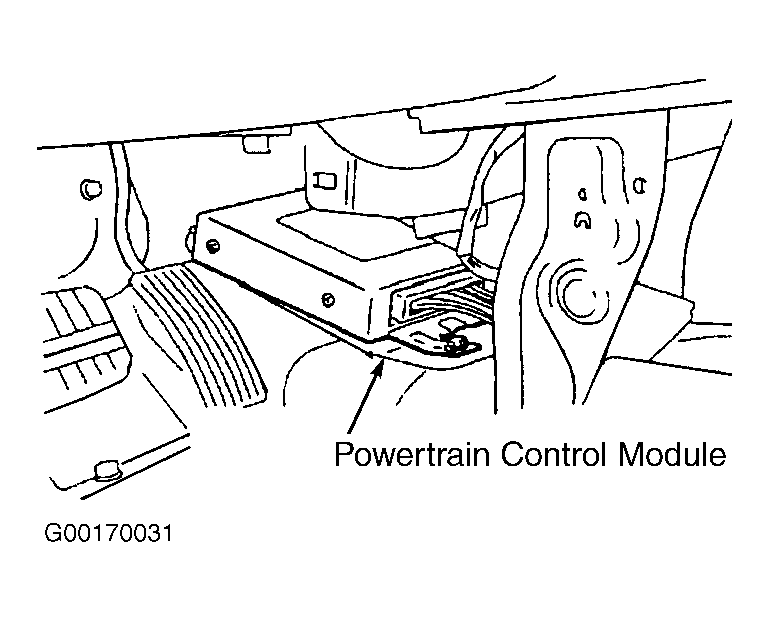

Fig 1: Removing/Installing Powertrain Control Module (Mirage A/T)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
