Removal & Installation (Mirage M/T)

Powertrain Control Module (PCM) is located behind right end of instrument panel. See Figure. To remove and install PCM, see Fig 1.

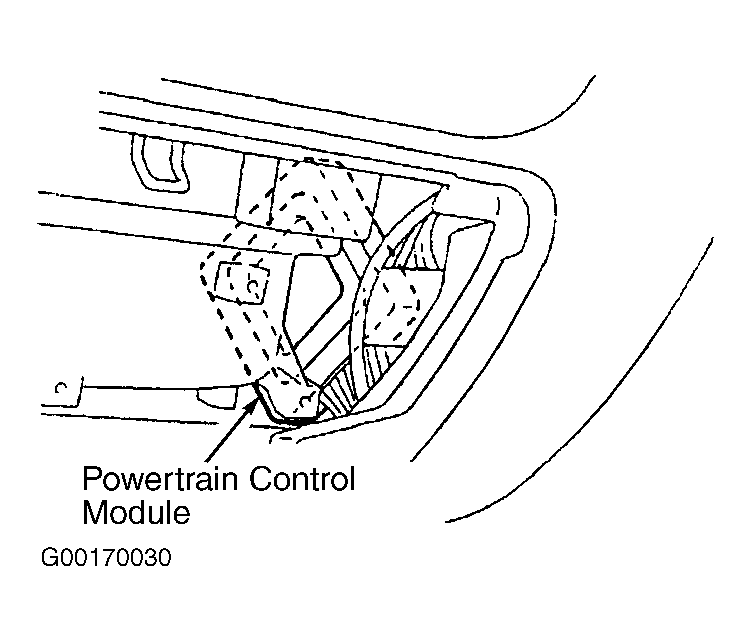

Fig 1: Removing/Installing Powertrain Control Module (Mirage M/T)
G00170030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
