Door Lock Switch Input Circuit Connector End Views

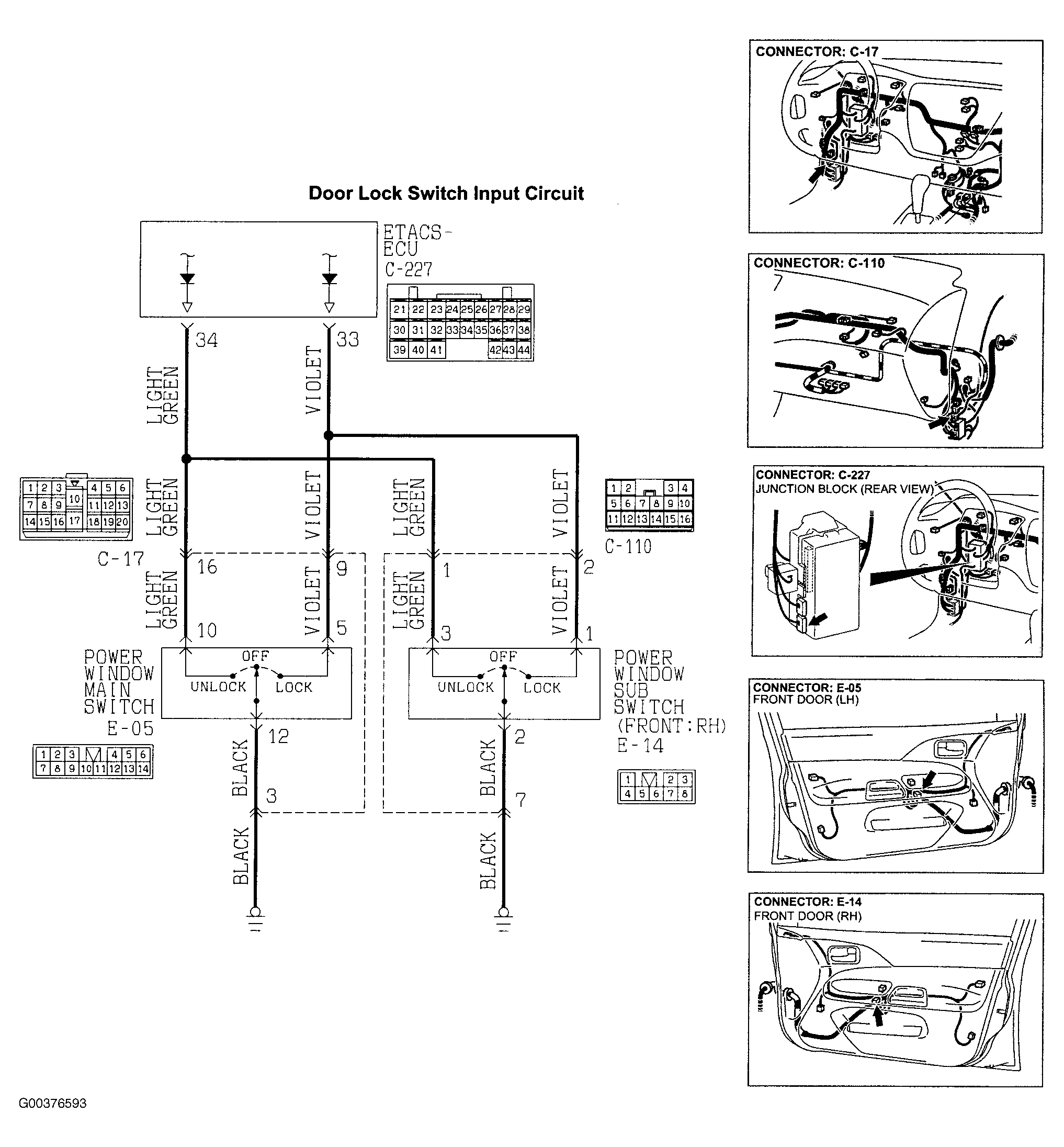

Fig 1: Door Lock Switch Input Circuit Connector End Views
G00376593Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
