Stoplight Switch Circuit Connector End Views

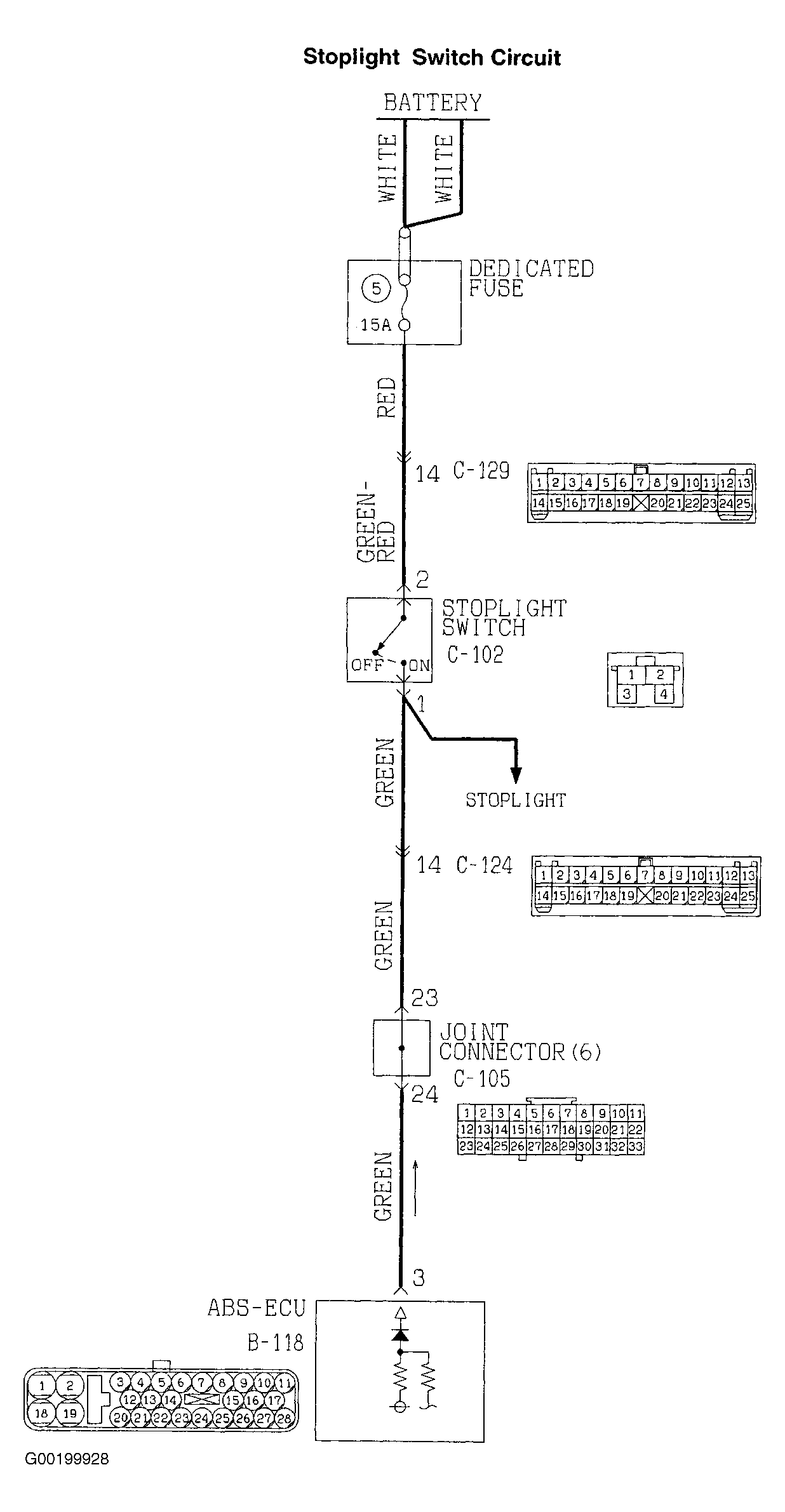

Fig 1: Stoplight Switch Circuit Connector End Views
G00199928Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
