Throttle Position Sensor System Circuit Connector End Views

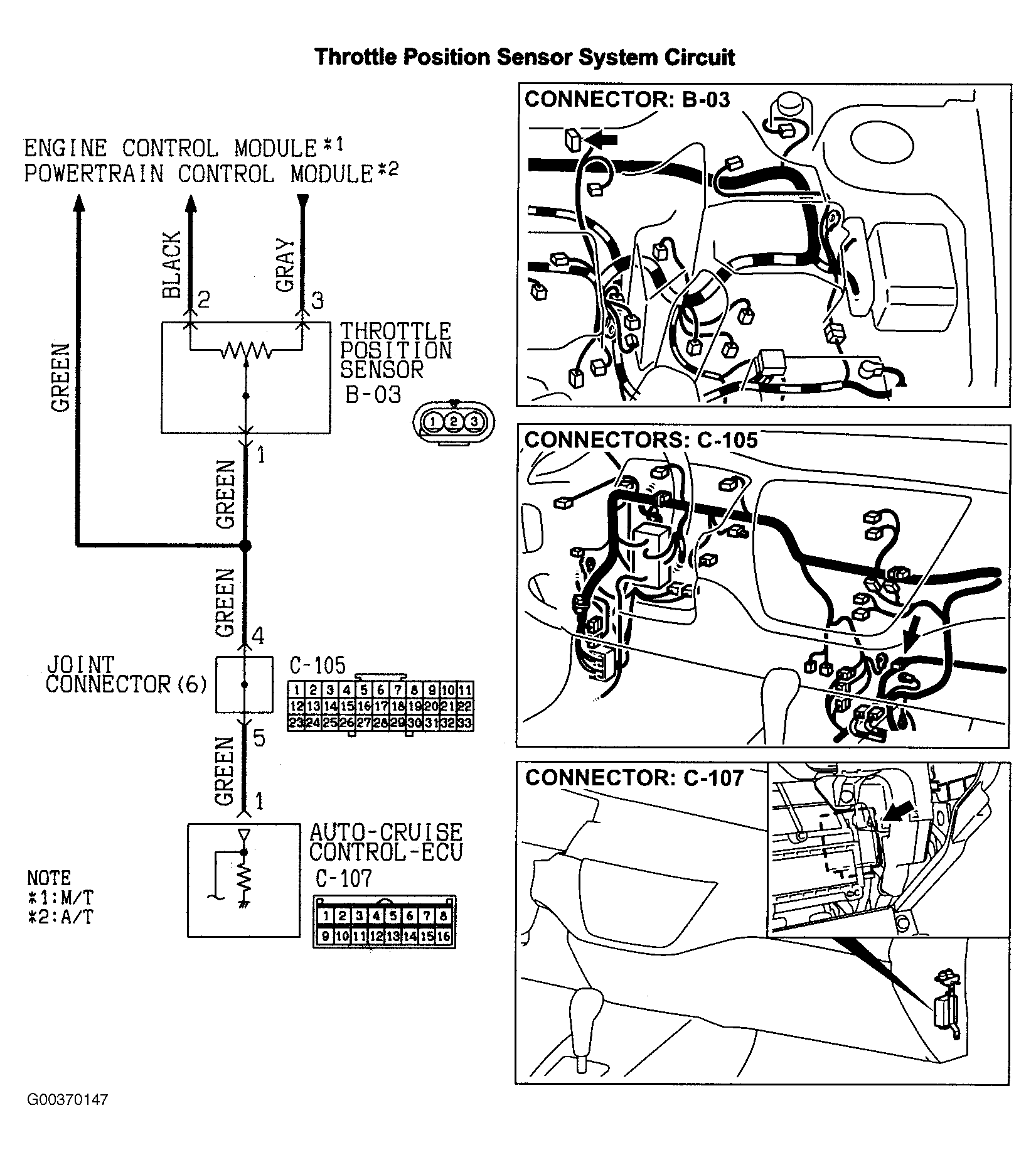

Fig 1: Throttle Position Sensor System Circuit Connector End Views
G00370147Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
