Vehicle Speed Sensor Input Circuit Connector End Views

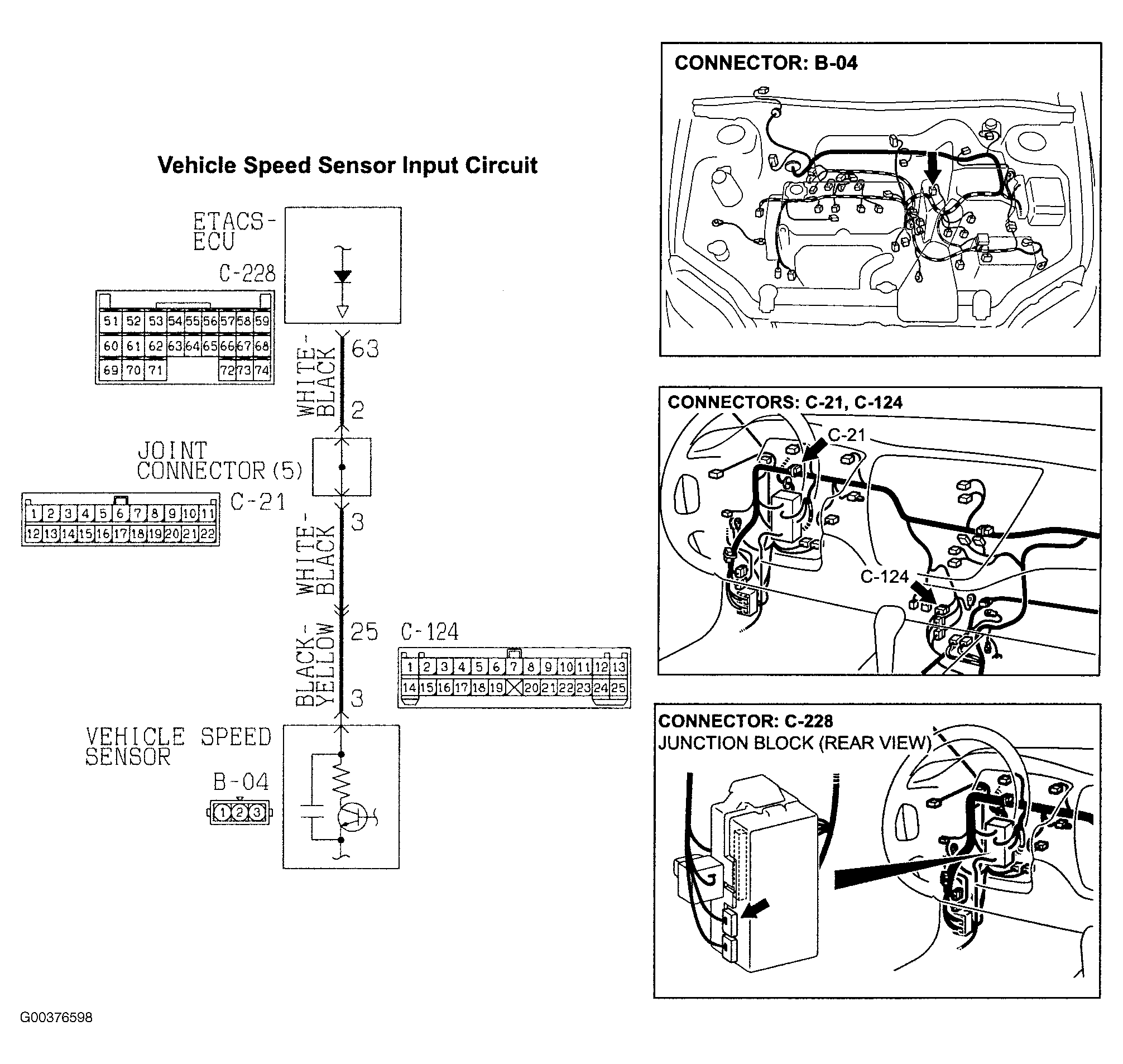

Fig 1: Vehicle Speed Sensor Input Circuit Connector End Views
G00376598Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
