A/T Control Relay Check

  1. Remove the A/T control relay.
  2. Use jumper wires to connect the A/T control relay terminal 2 to the positive battery terminal and terminal 3 to the negative battery terminal.
  3. Check the continuity between terminal 1 and terminal 4 of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

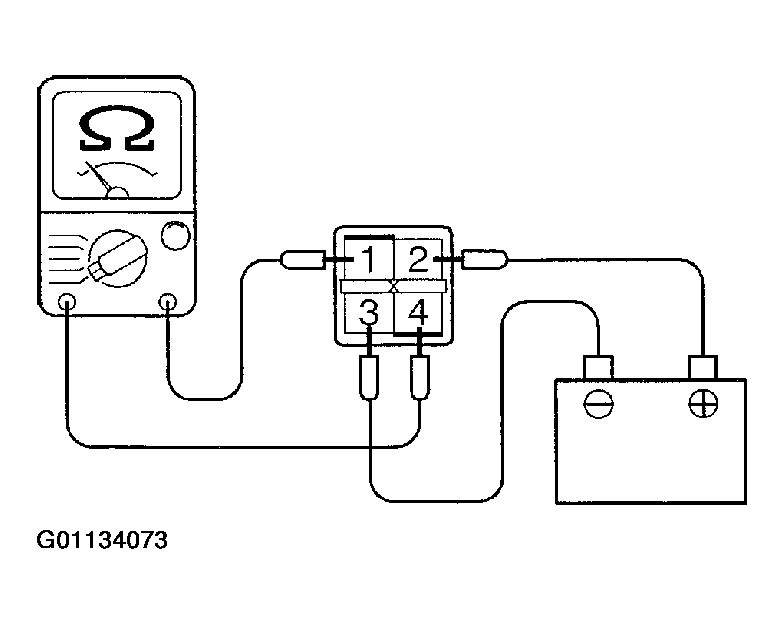

    Fig 1: Checking Automatic Transaxle Control Relay (1 Of 2)
    G01134073Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

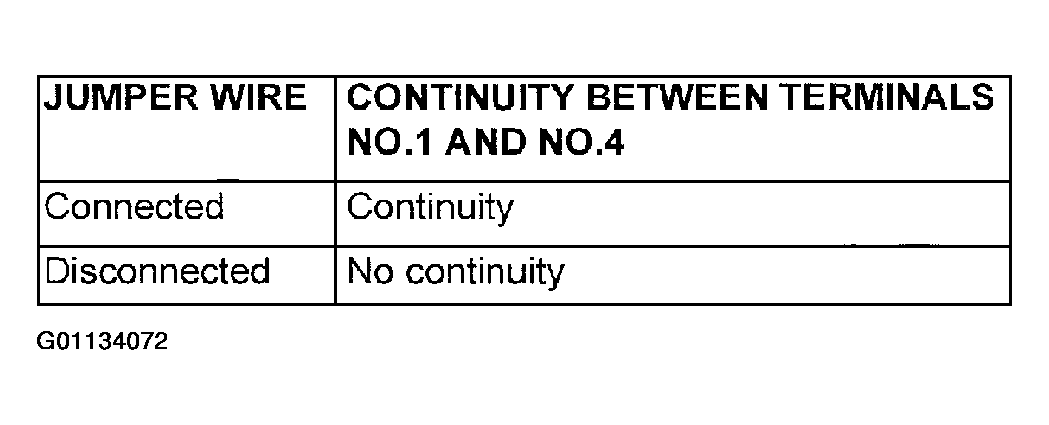

    Fig 2: Checking Automatic Transaxle Control Relay (2 Of 2)
    G01134072Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is any problem with the A/T control relay, replace it.
