Key Interlock Mechanism Check

Carry out the following inspection.

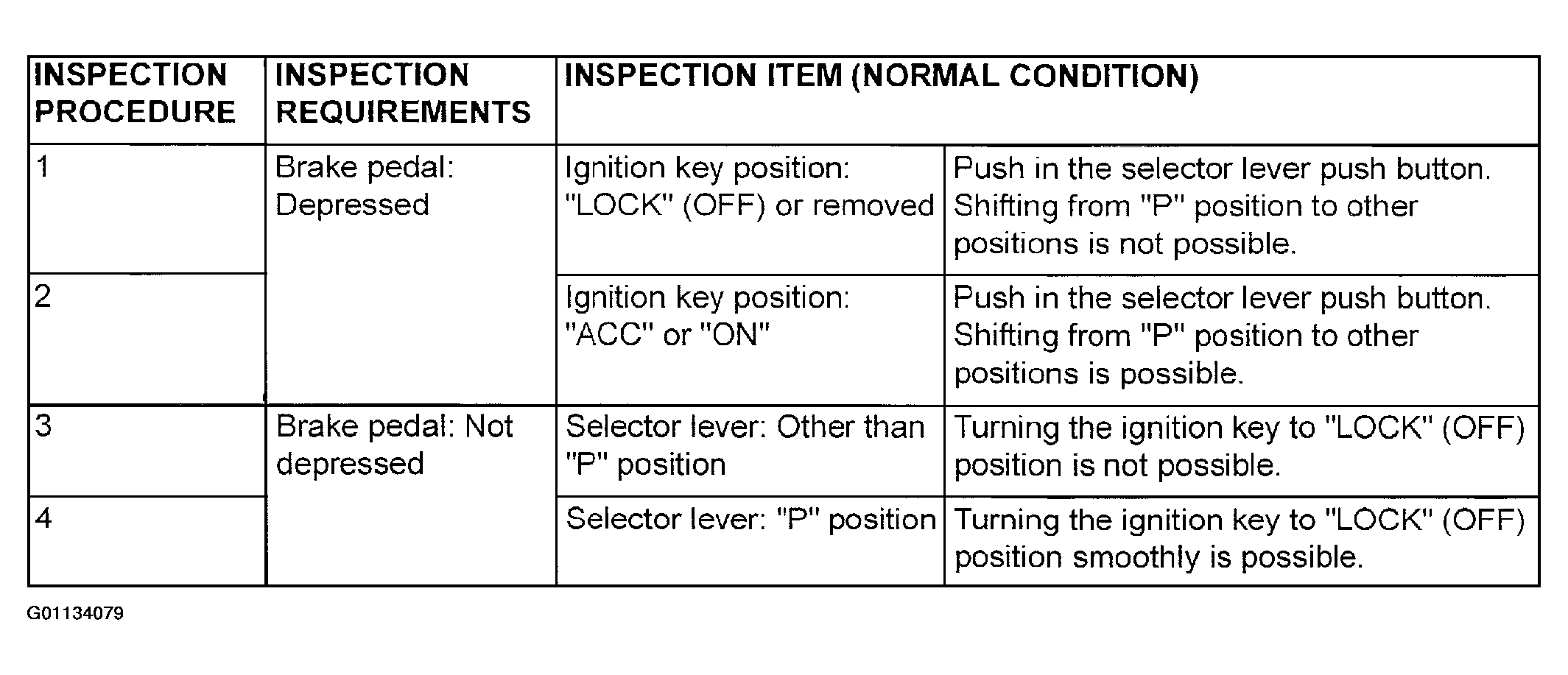

Fig 1: Checking Key Interlock Mechanism
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When any of the above checks are not normal, adjust the key interlock cable by following procedure.
1. Remove the floor console. Refer to FRONT FLOOR CONSOLE .
2. Shift the selector lever to "P" position.
3. Turn the ignition key to the "LOCK" (OFF) position.
4. Loosen the locking nut of the key interlock cable.

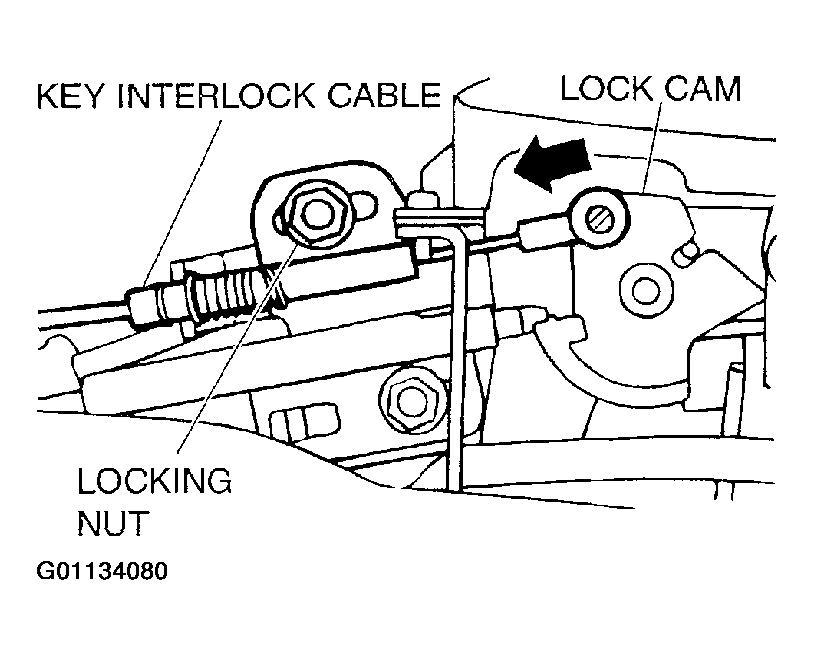

  Fig 2: Adjusting Key Interlock Cable
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Push the cable joint on the lock cam gently toward the arrow until the cable stops. Tighten the locking nut.
  Tightening torque: 12 +/- 2 N.m (107 +/- 17 in-lb)
6. Install the floor console. Refer to FRONT FLOOR CONSOLE .
After adjusting, check the operation once more. If the operation is still incorrect, replace the key interlock cable. Refer to A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS .
