Stoplight Switch Check

  1. Connect an ohmmeter between the stoplight switch connector terminals.
  2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.

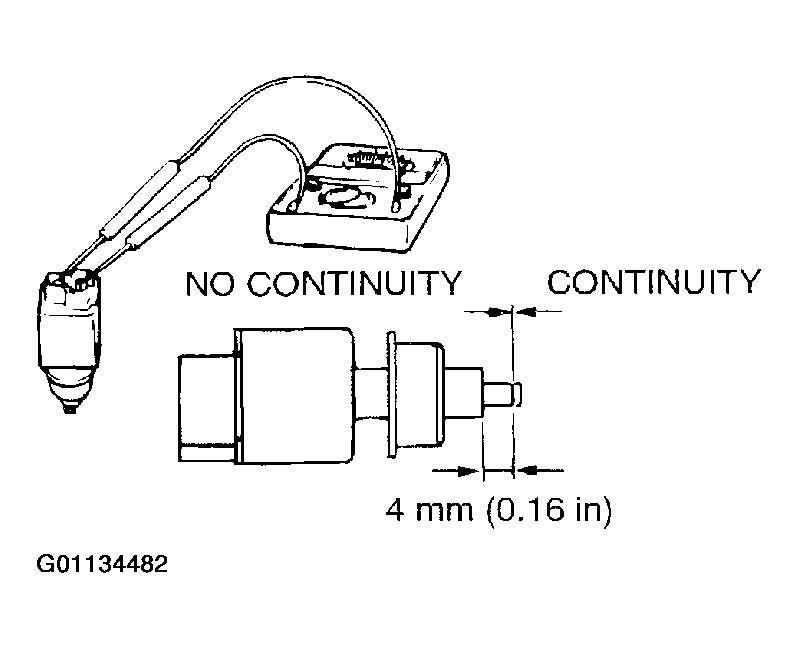

    Fig 1: Checking Stoplight Switch
    G01134482Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
