Simplified Wiring System (SWS) - Except Evolution
>>
Input Signal Procedures
>>
Inspection Procedure M-6: Column Switch: ETACS-Ecu Does Not Receive Any Signal From Windshield Mist Wiper Switch, Windshield Intermittent Wiper Switch, Windshield Low-Speed Wiper Switch, Windshield High-Speed Wiper Switch, Windshield Washer Switch, Rear Wiper Switch Or Rear Washer Switch
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

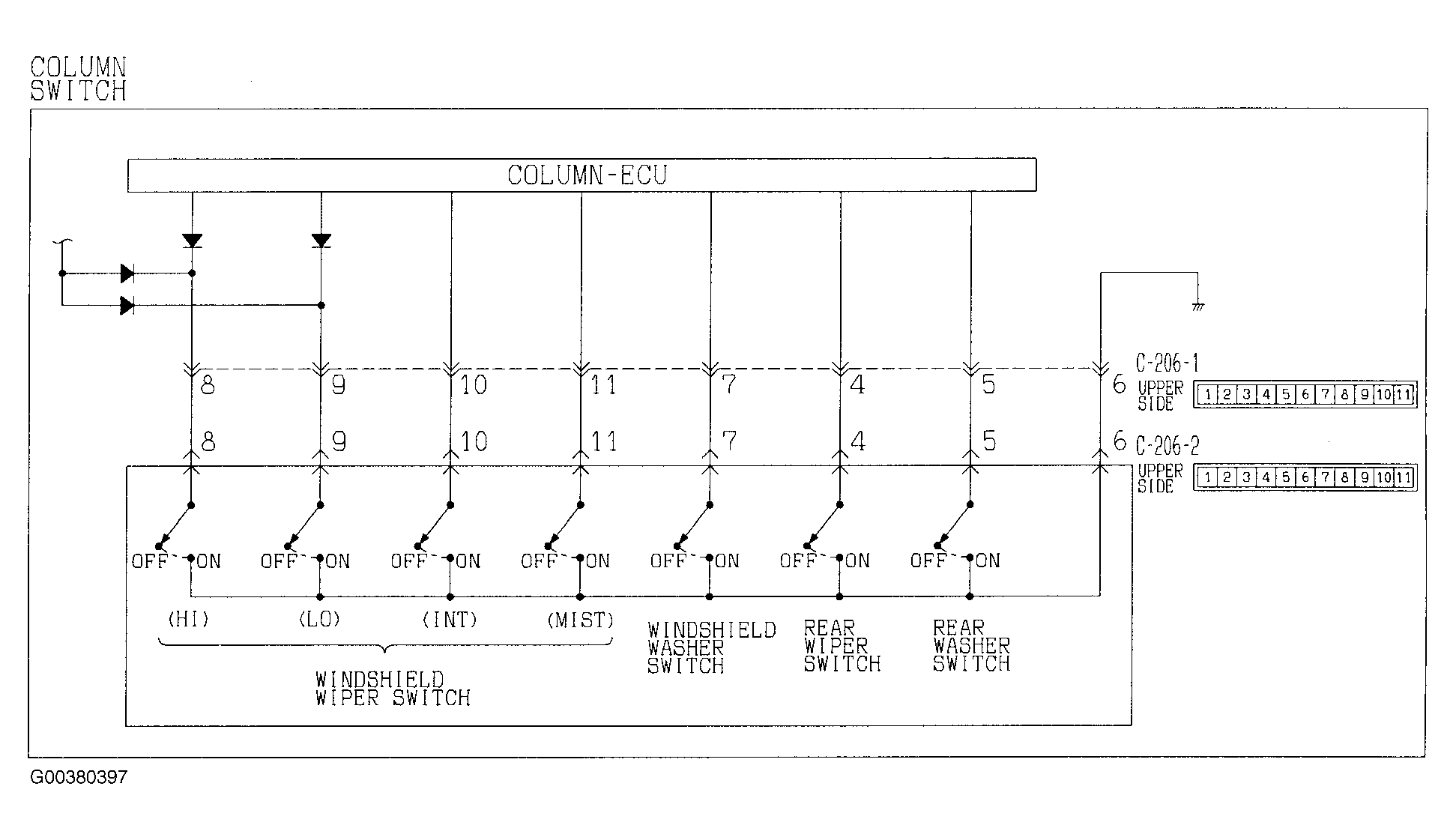

Fig 1: Windshield Wiper & Washer Switch Input Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
