Operating The Transmitter Lock Switch

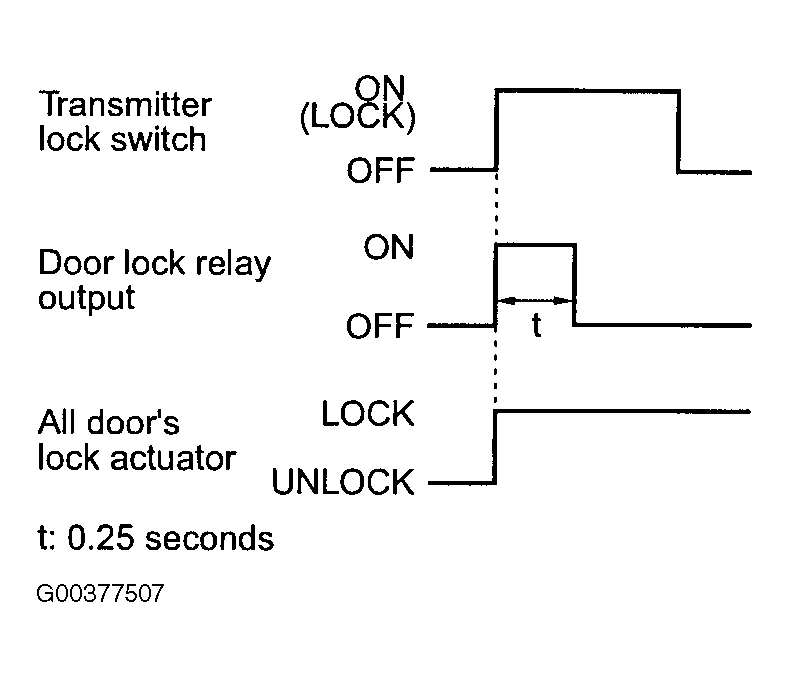

When the transmitter lock switch is pressed, the ETACS-ECU energizes its door lock relay to operate all the door lock actuators for 0.25 second thus causing all doors to be locked. See Fig 1.
When the transmitter lock switch is pressed, the ETACS-ECU energizes its door lock relay to operate all the door lock actuators for 0.25 second thus causing all doors to be locked. See Fig 1.
