Circuit Diagram

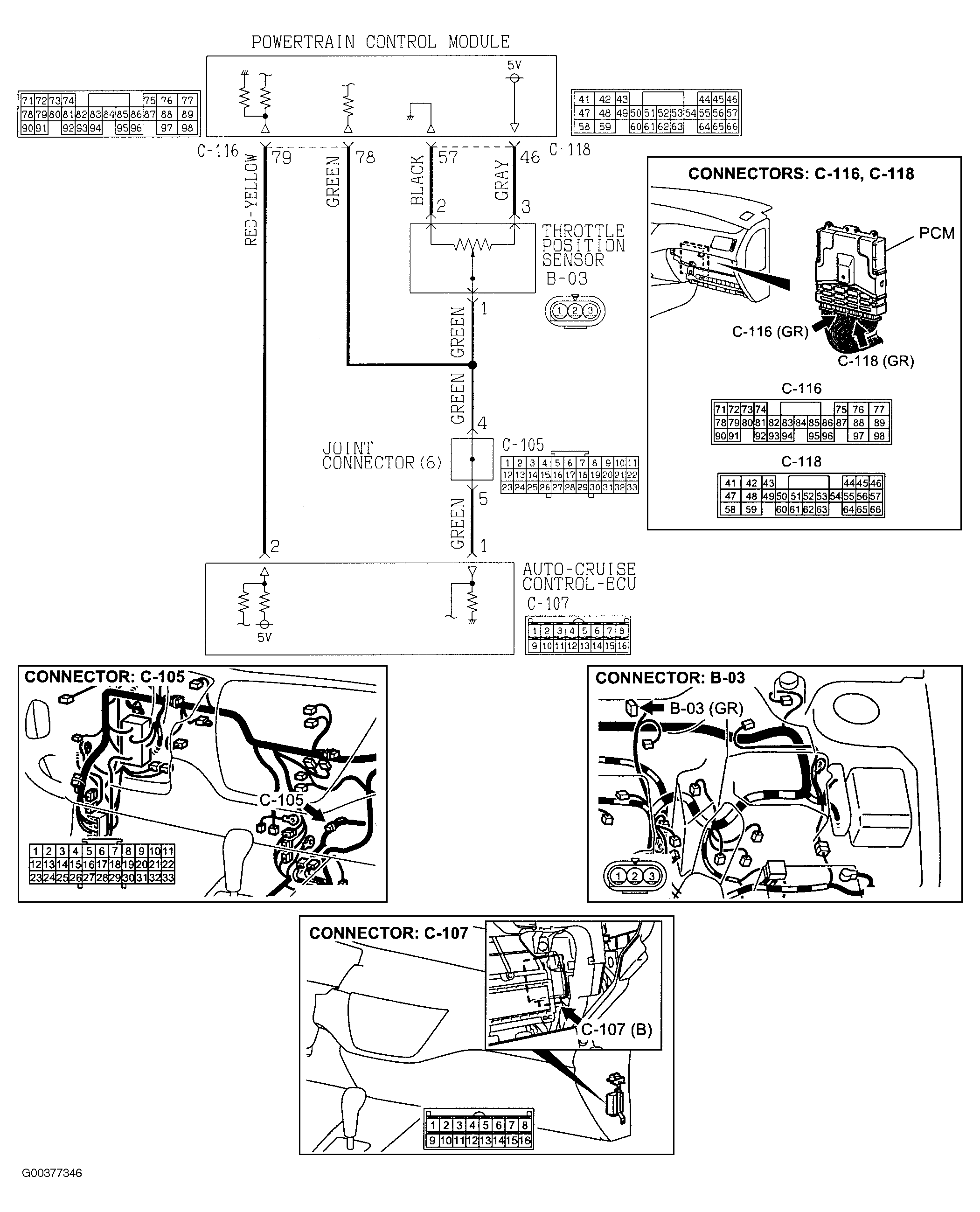

Fig 1: Throttle Position Sensor & Idle Position Signal System Circuit Diagram & Connector Identification (A/T)
G00377346Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
