DTC 33: Stoplight Switch System: Notes

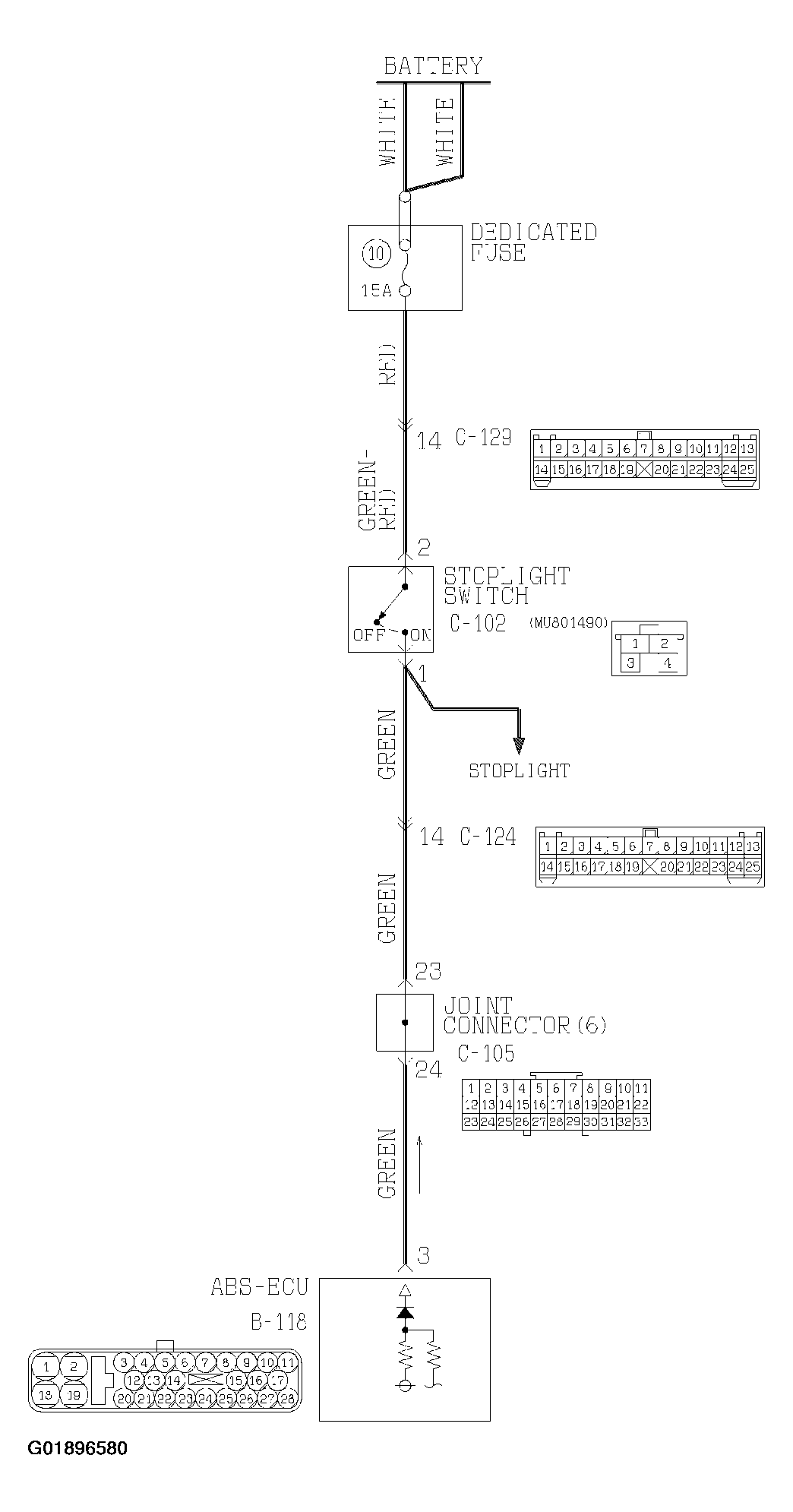

Fig 1: Stoplight Switch Circuit (1 Of 2)
G01896580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

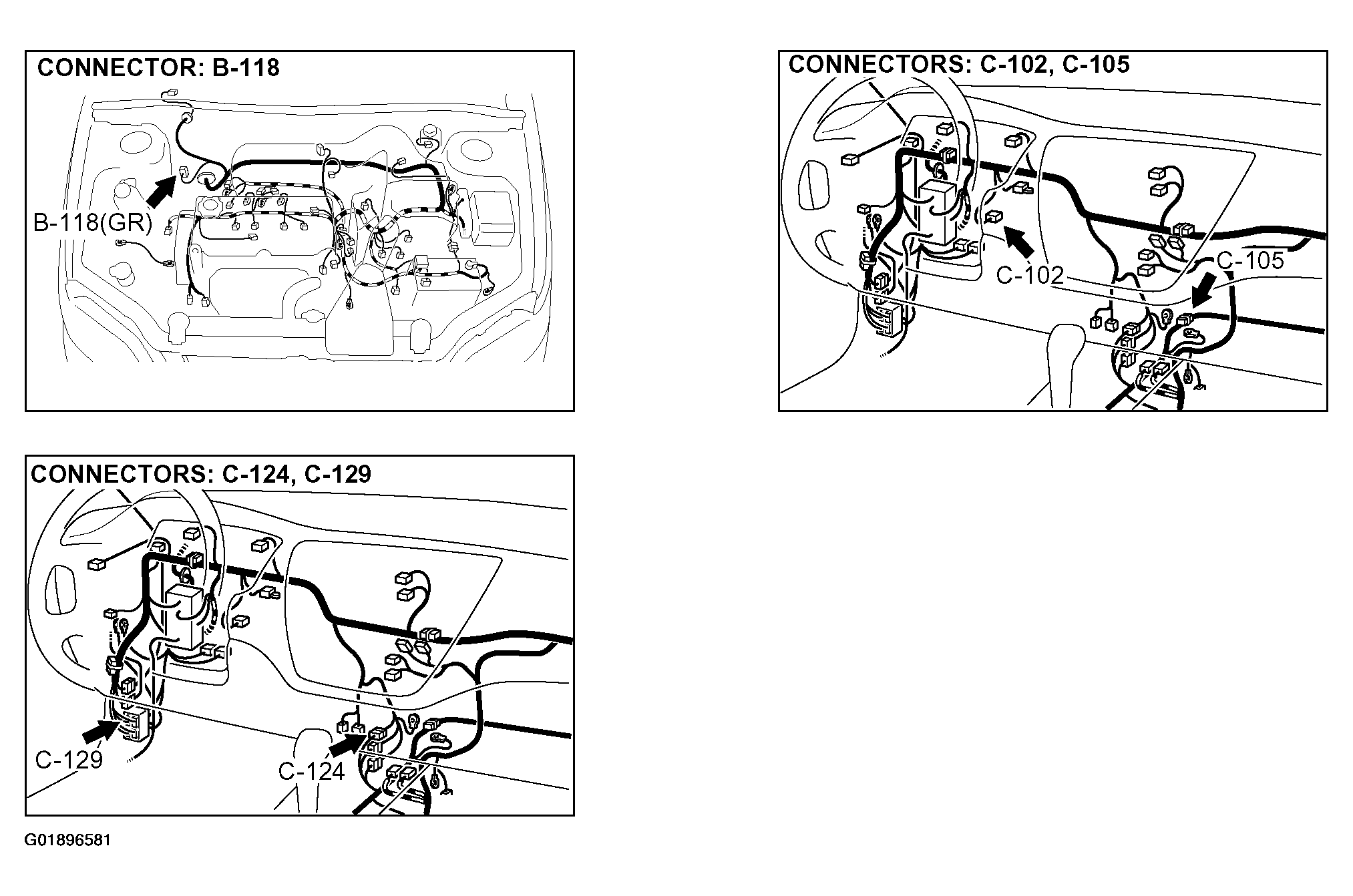

Fig 2: Stoplight Switch Circuit (2 Of 2)
G01896581Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
