Disassembly And Reassembly: Notes

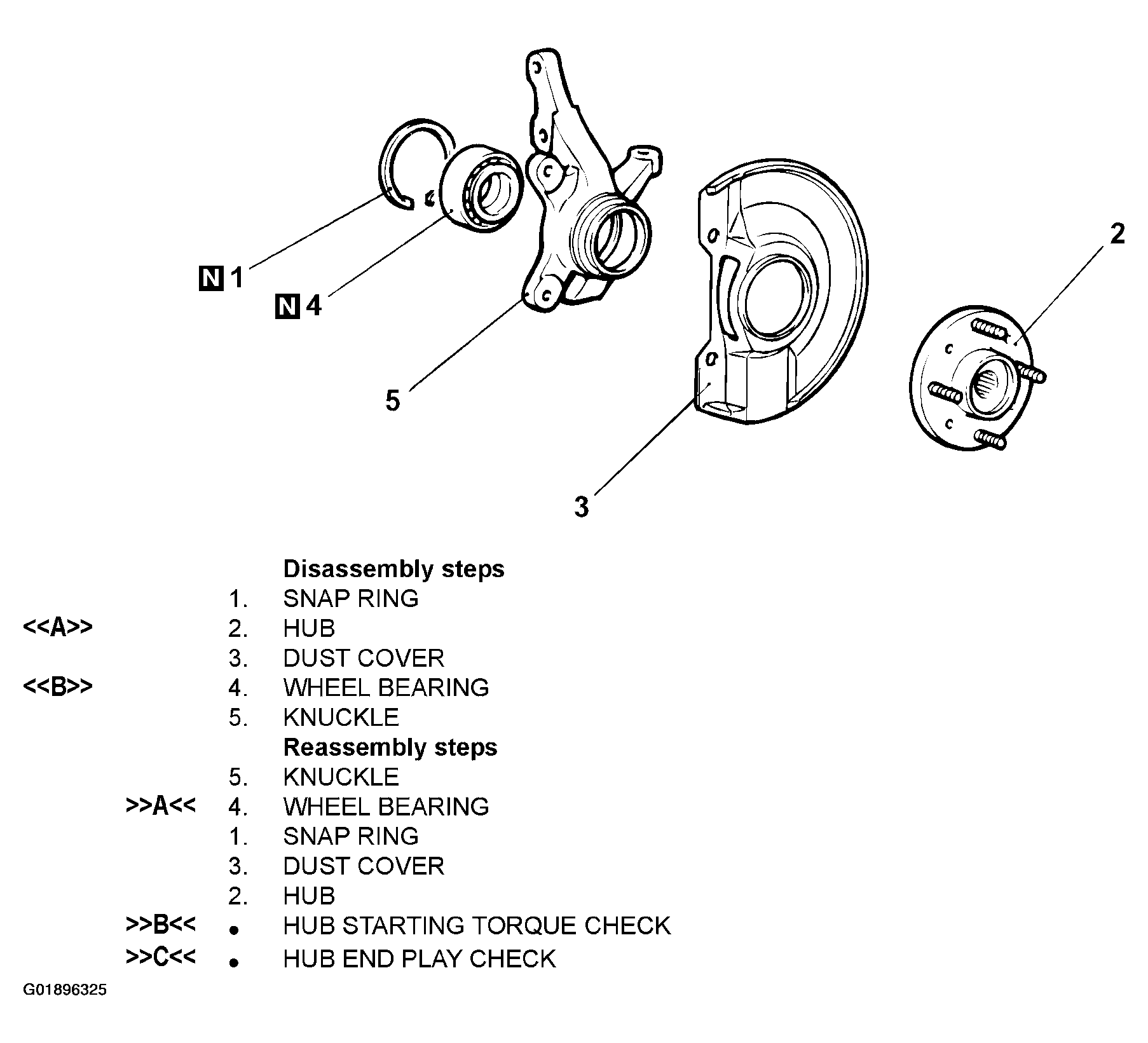

Fig 1: Disassembling/Reassembling Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990326: Preload Socket
• MB990685: Torque Wrench
• MB990810: Side bearing puller
• MB990933: Installer Adapter
• MB990938: Brass Bar
• MB991001 (MB990998): Front Hub Remover and Installer
• MB991017: Front Hub Remover and Installer
• MB991050: Rear Suspension Bush Remover and Install Base
• MB991056 or MB991355: Knuckle arm bridge
