Removal And Installation: Notes

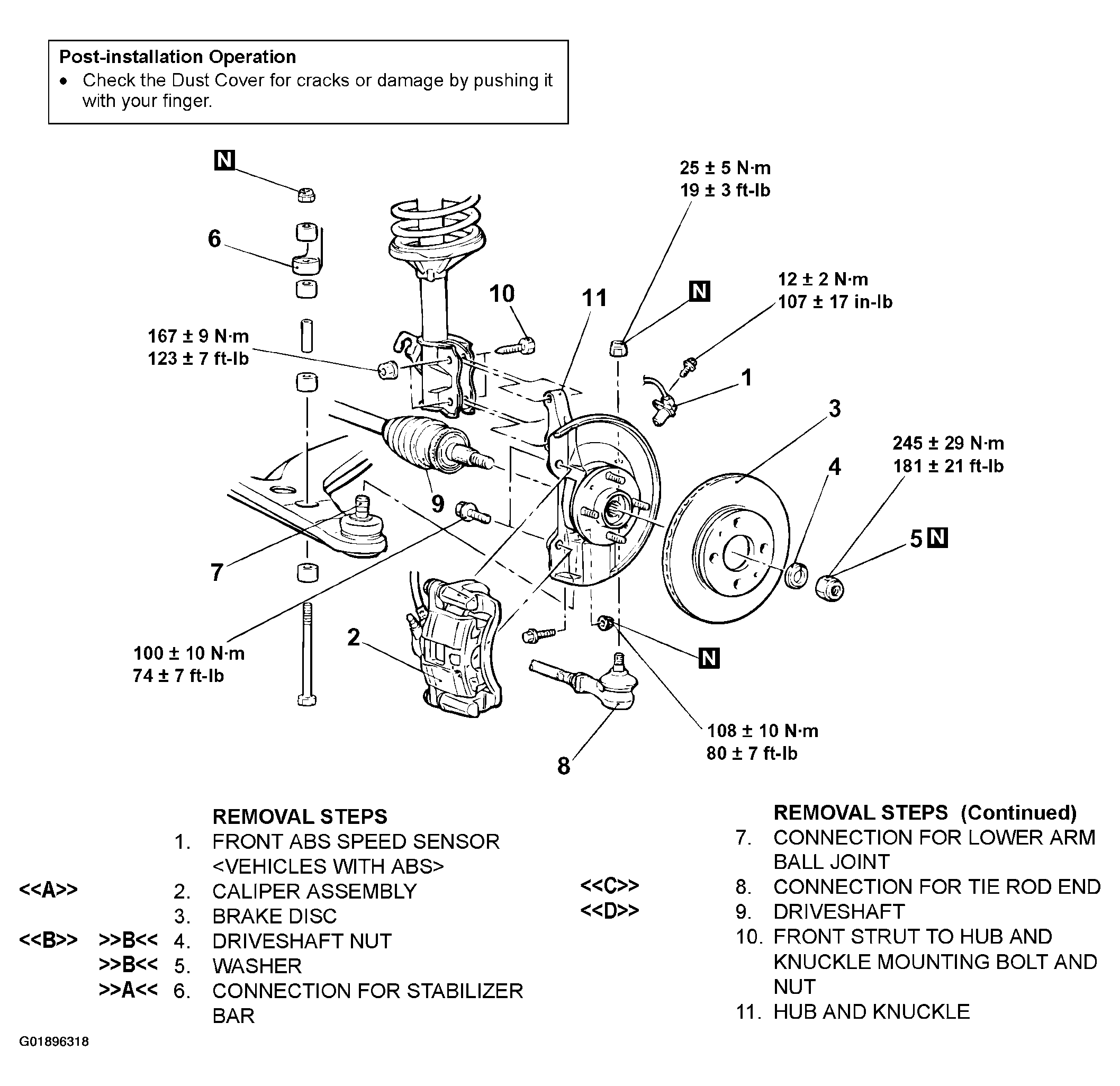

Fig 1: Removing/Installing Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990241: Axle shaft puller
• MB990326: Preload Socket
• MB990767: End Yoke Holder
• MB990998: Front Hub Remover and Installer
• MB991897: Ball Joint Remover
