Assembly Service Points

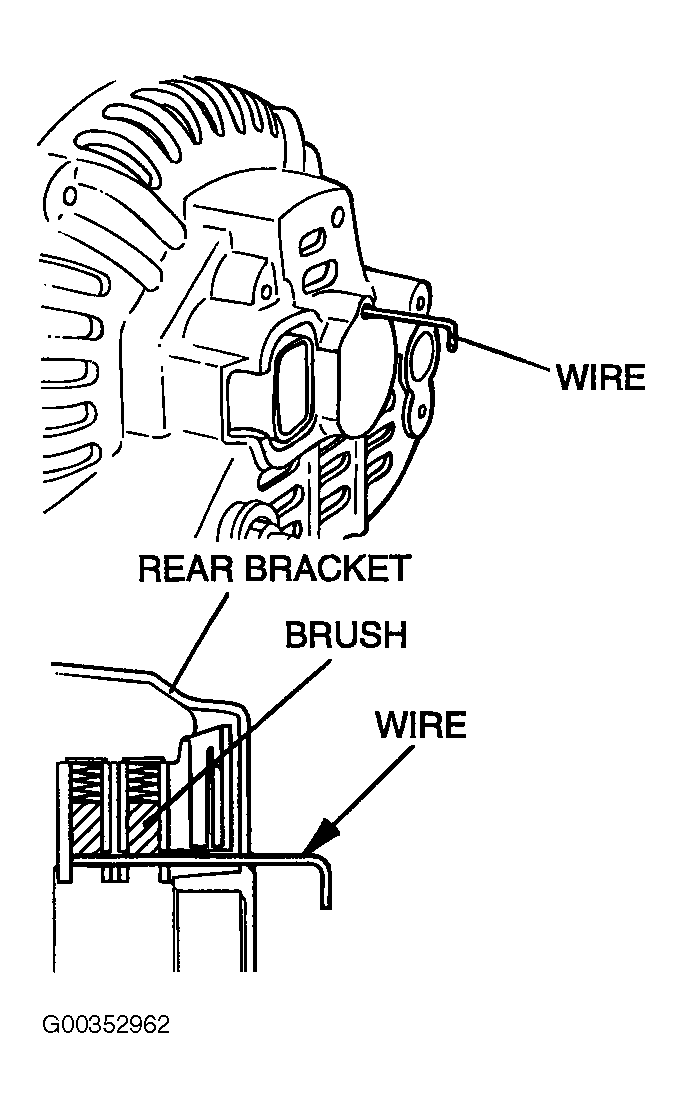

- A) Regulator Assembly Installation - After installing the regulator assembly, insert a wire through the hold provided on the rear bracket while pressing down on the brush, and secure the brush. See Fig 1 .
- B) Rotor Assembly Installation - After installing the rotor, remove the wire used to secure the brush.
NOTE:
By inserting a wire, the brush will be secured in place, and the installation of the rotor will be easier.
