Removal & Installation (Diamante)

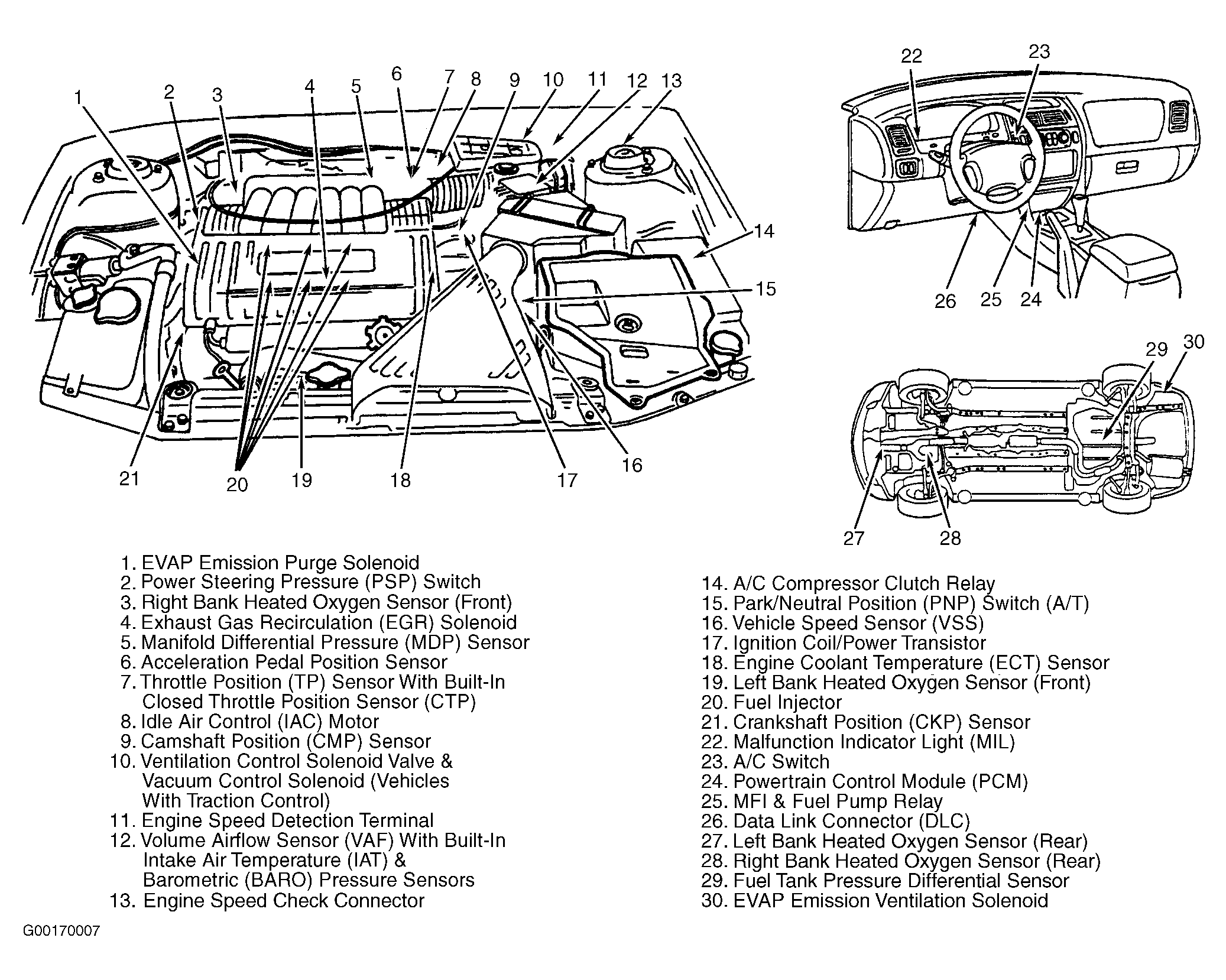

  1. Powertrain Control Module (PCM) is located under front of center console. See Figure. Remove center console as necessary for access to PCM. To remove PCM, see Fig 1.
  2. To install PCM, reverse removal procedure. Program new PCM. See PROGRAMMING .

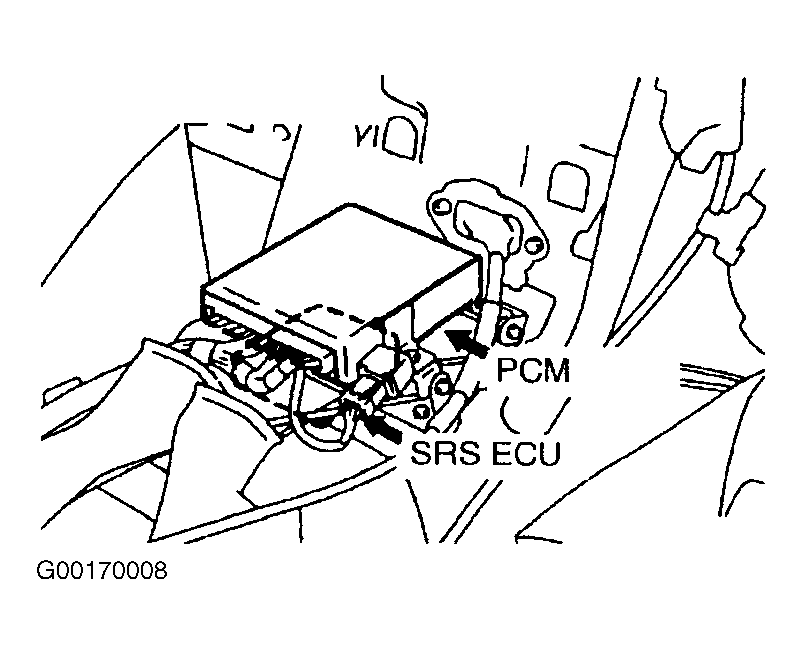

Fig 1: Removing Powertrain Control Module (Diamante)
G00170008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
