INSPECTION PROCEDURE 3: Inside/Outside Air Changeover is not possible.: Notes

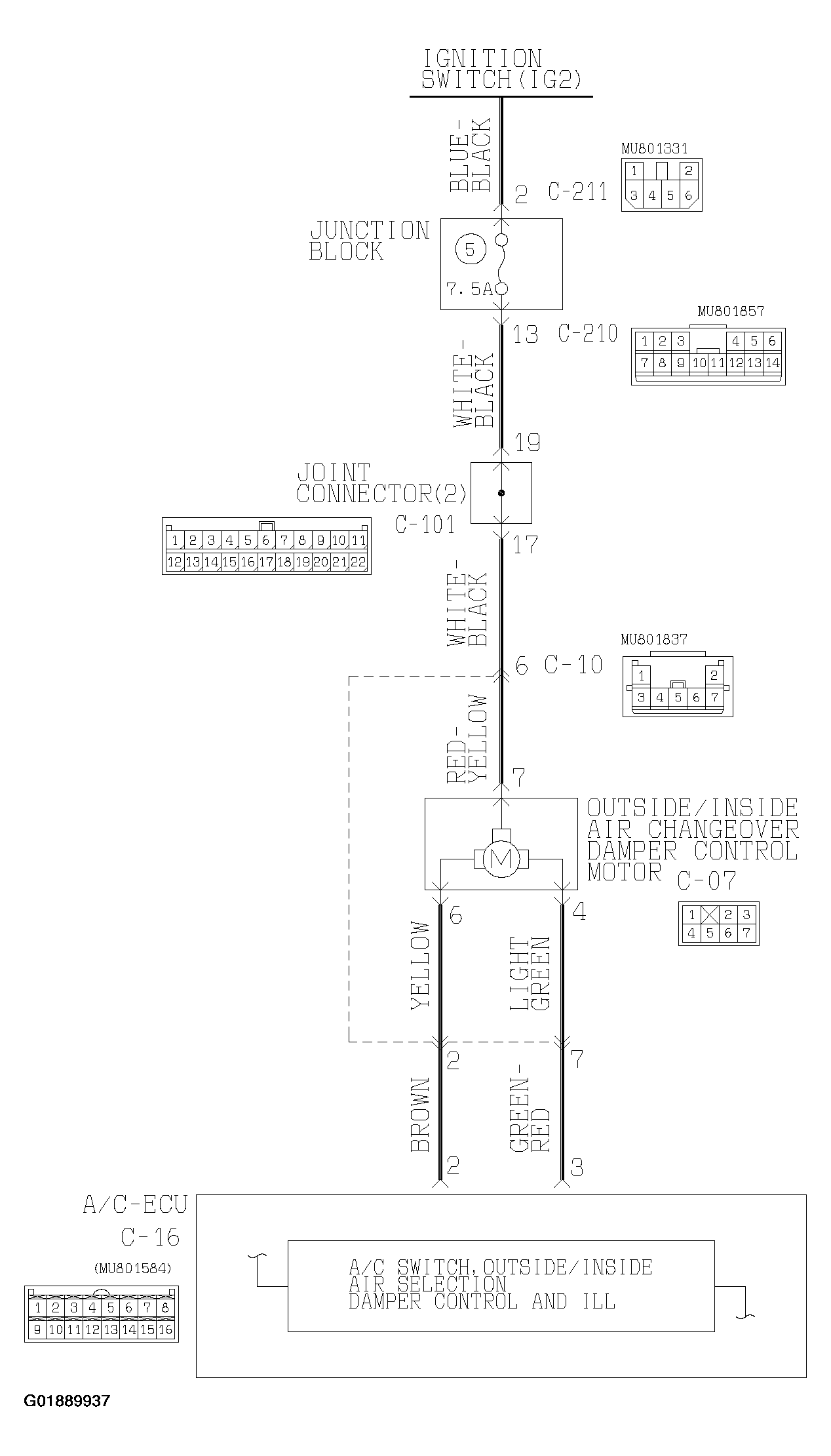

Fig 1: Inside/Outside Air Changeover Damper Motor Circuit Diagram
G01889937Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

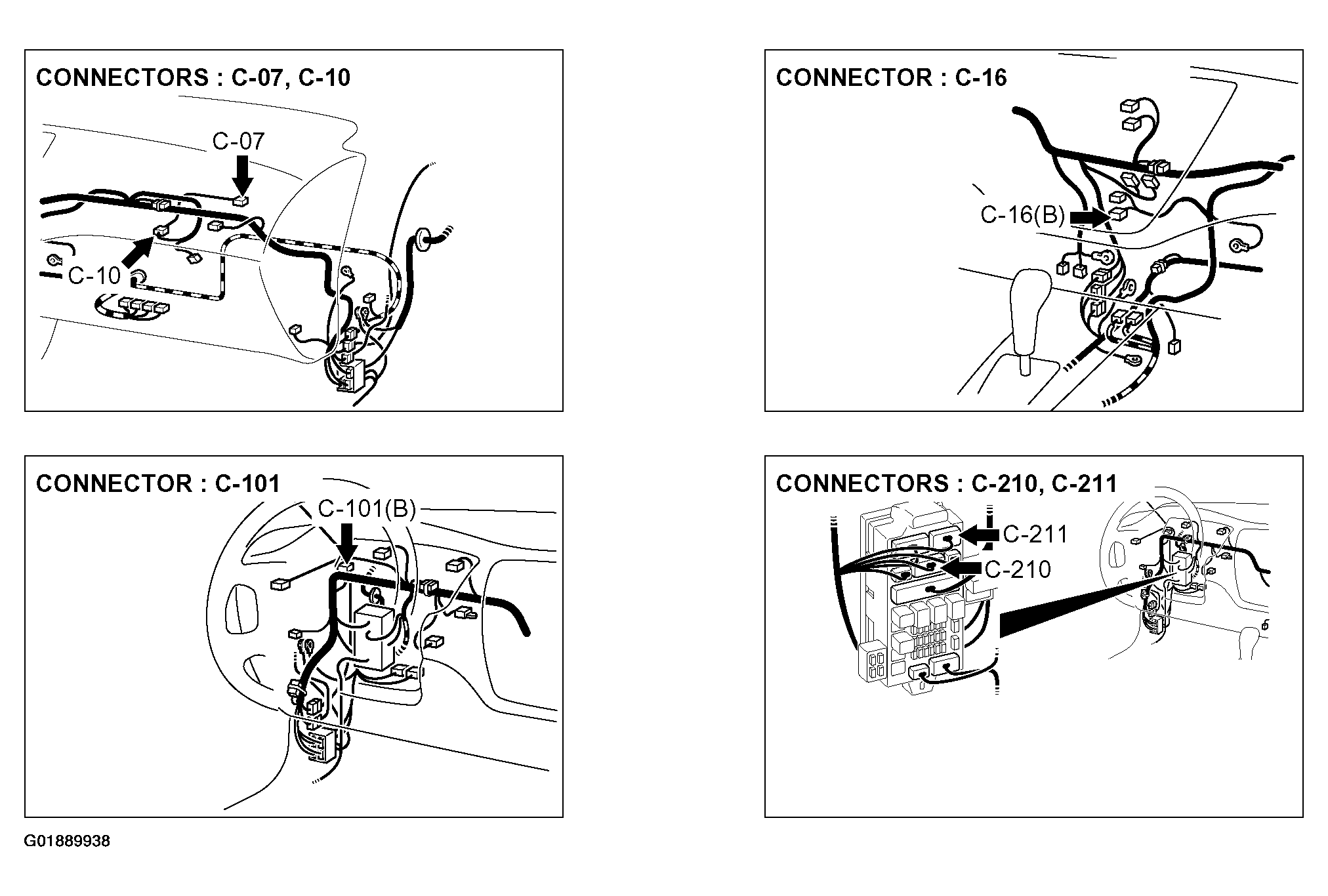

Fig 2: Identifying Inside/Outside Air Changeover Damper Motor Circuit Harness Connectors
G01889938Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
