INSPECTION PROCEDURE 7: Defroster Function does not Operate.: Notes

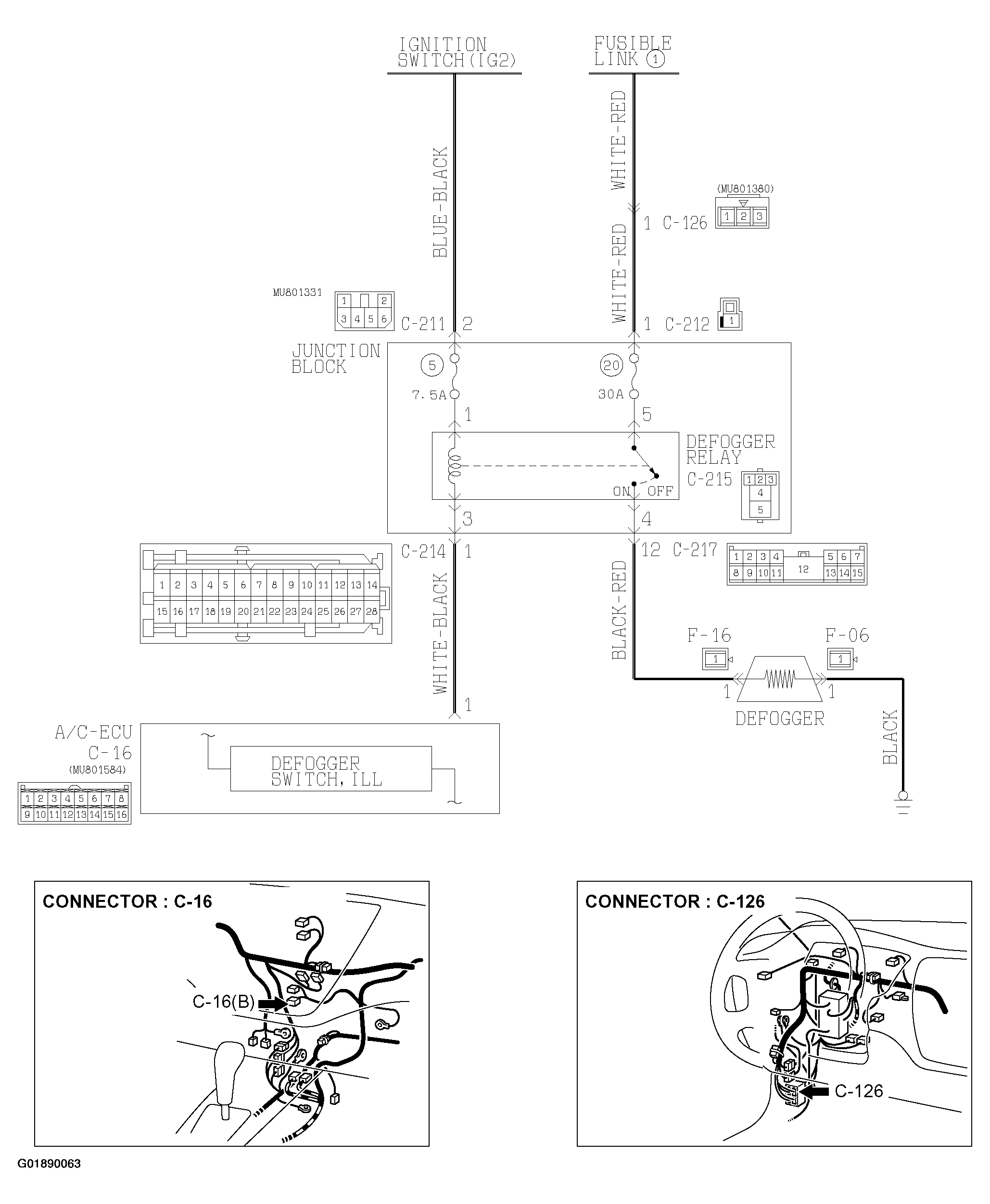

Fig 1: Defogger Circuit Diagram
G01890063Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

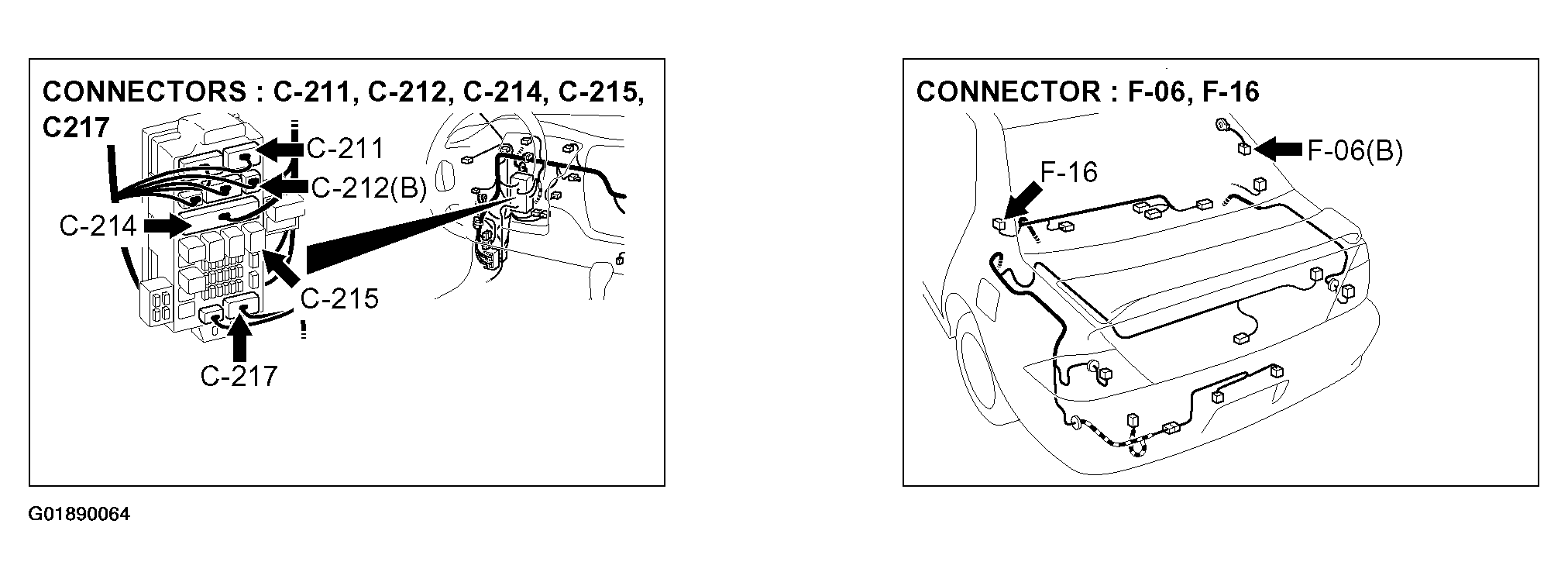

Fig 2: Defogger Circuit Harness Connectors
G01890064Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
