Removal & Installation (Lancer)

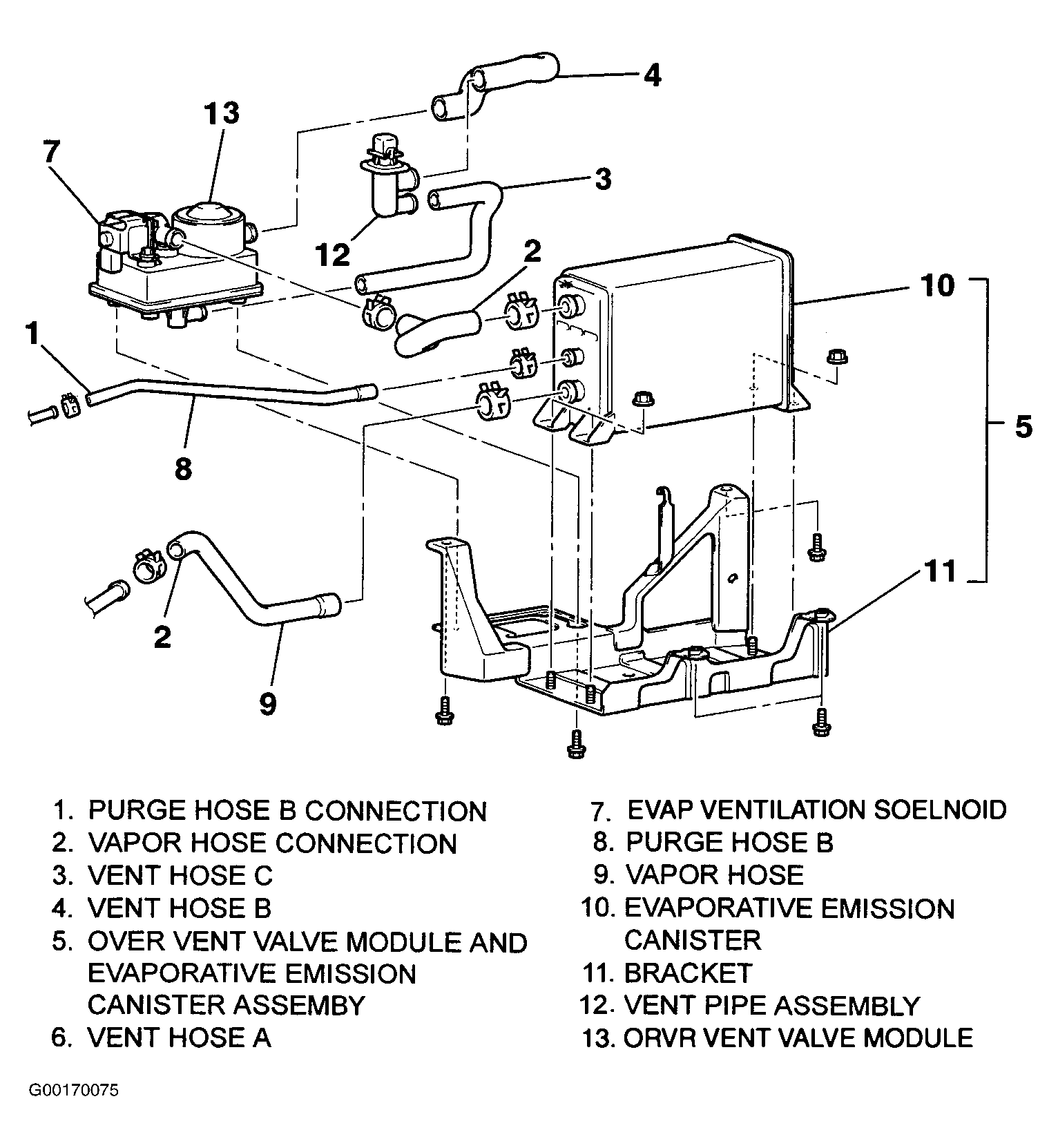

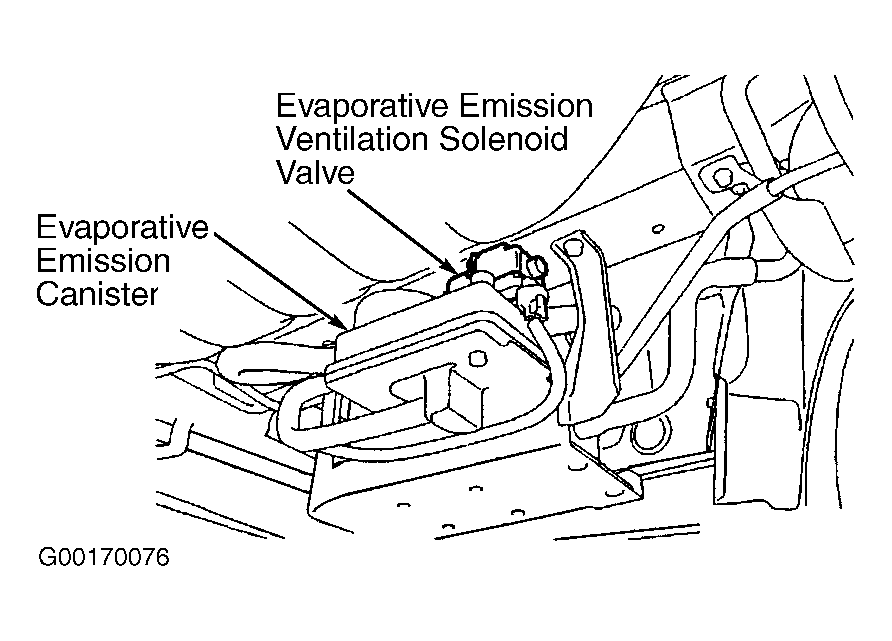

Raise and support vehicle. Locate EVAP canister, under left rear corner of vehicle. See Figure. Disconnect purge hose "B" and vapor hose. See Figure. Remove vent hoses "B" and "C". Remove EVAP emission ventilation solenoid and EVAP canister assembly. Disconnect vent hose "A". Remove EVAP emission ventilation solenoid and ORVR vent valve module assembly. Remove ORVR vent valve module. To install, reverse removal procedure.
