Removal (Diamante)

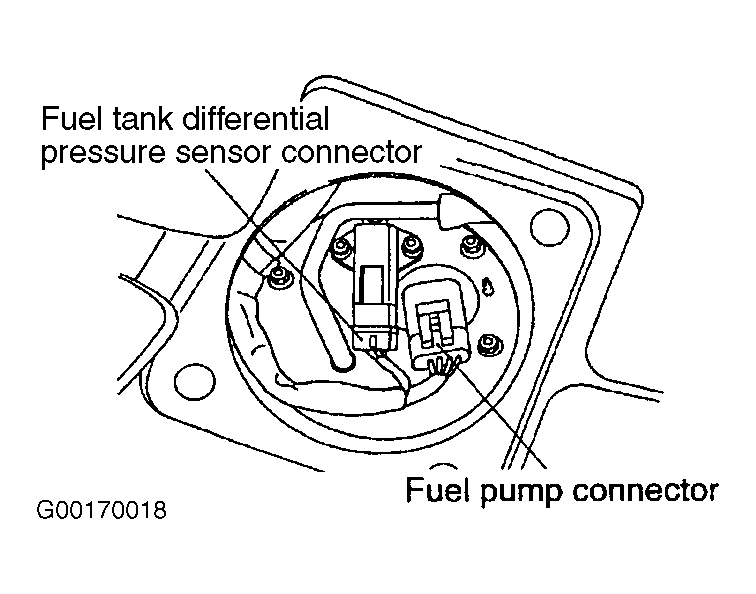

Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Working through access hole, cover fuel hose with a shop towel and disconnect fuel hoses at fuel pump module. Disconnect pressure sensor connector. See Figure. Remove fuel pump module fasteners. Remove fuel pump module assembly. See Figure.
