Diagnostic Procedure (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For component inspection, see COMPONENT INSPECTION , EVAP canister vent control valve DTC confirmation procedure, see DTC CONFIRMATION PROCEDURE  under DTC P1446: EVAP CANISTER VENT CONTROL VALVE, for EVAP canister purge volume control solenoid valve component inspection, see COMPONENT INSPECTION  under DTC P0444 OR DTC P0445: EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE, for absolute pressure sensor component inspection, see DTC CONFIRMATION PROCEDURE  under DTC P0102 OR DTC P0103: MASS AIRFLOW SENSOR, for fuel tank temperature sensor component inspection, see COMPONENT INSPECTION  under DTC P0181: FUEL TANK TEMPERATURE SENSOR, for EVAP control system pressure sensor component inspection, see COMPONENT INSPECTION  or COMPONENT INSPECTION (3.5L)  under DTC P0452: EVAP CONTROL SYSTEM PRESSURE SENSOR, for fuel level sensor check, see FUEL LEVEL SENSOR UNIT CHECK under COMPONENT TESTS in INSTRUMENT PANELS - ALTIMA article and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1 - Fig 6.

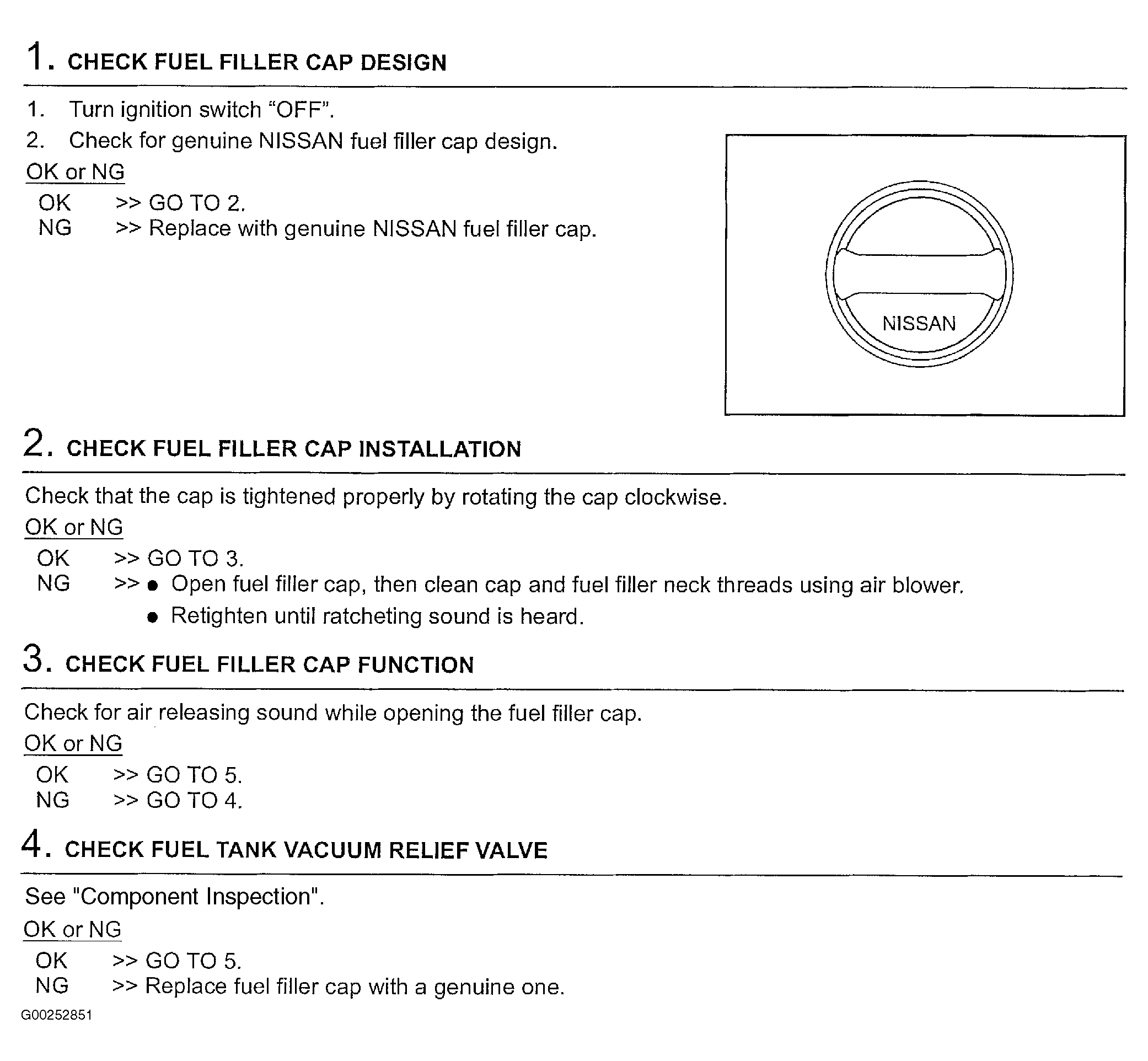

Fig 1: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 1-4 Of 25 - 3.5L)
G00252851Courtesy of NISSAN MOTOR CO., U.S.A.

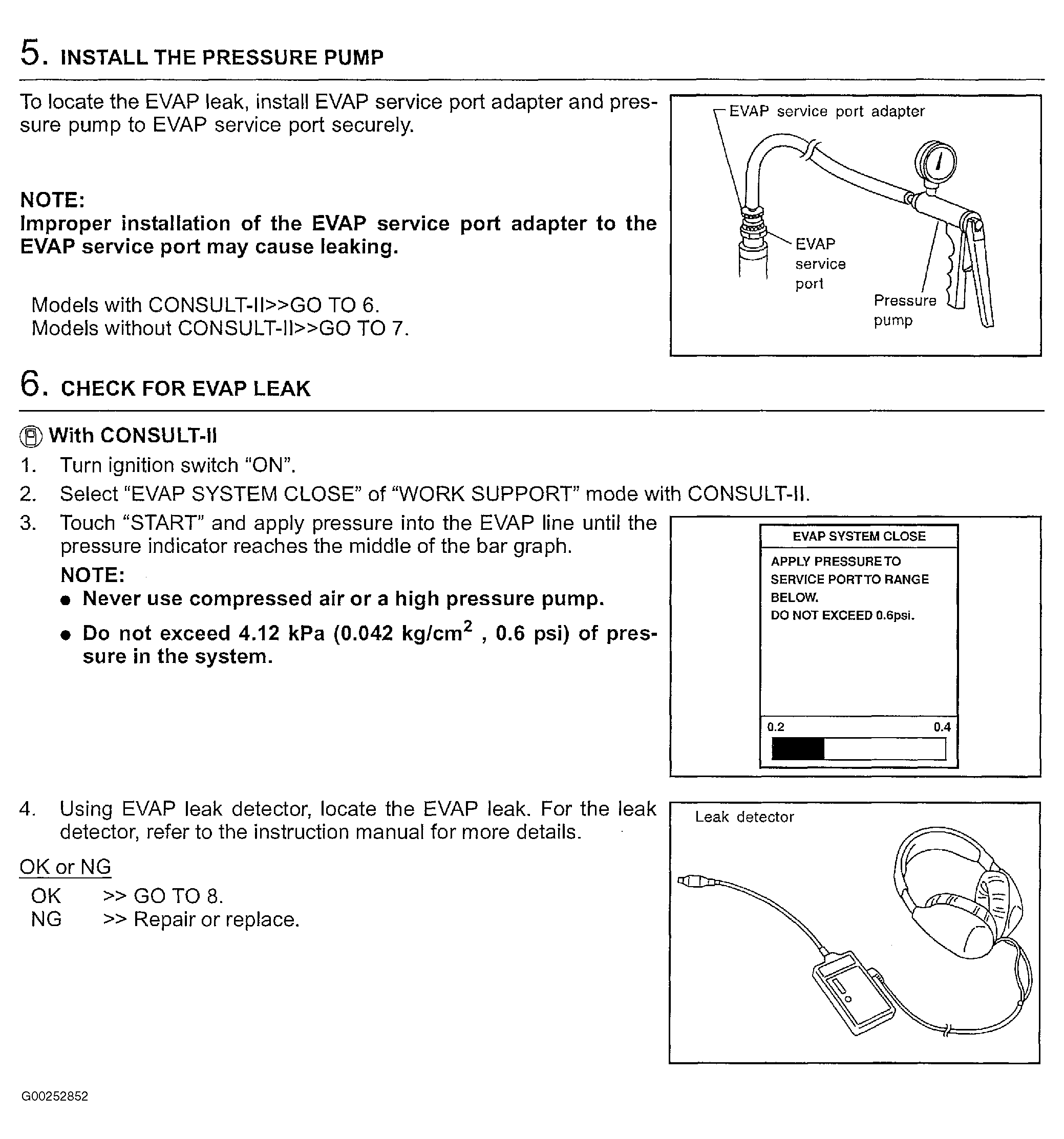

Fig 2: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 5-6 Of 25 - 3.5L)
G00252852Courtesy of NISSAN MOTOR CO., U.S.A.

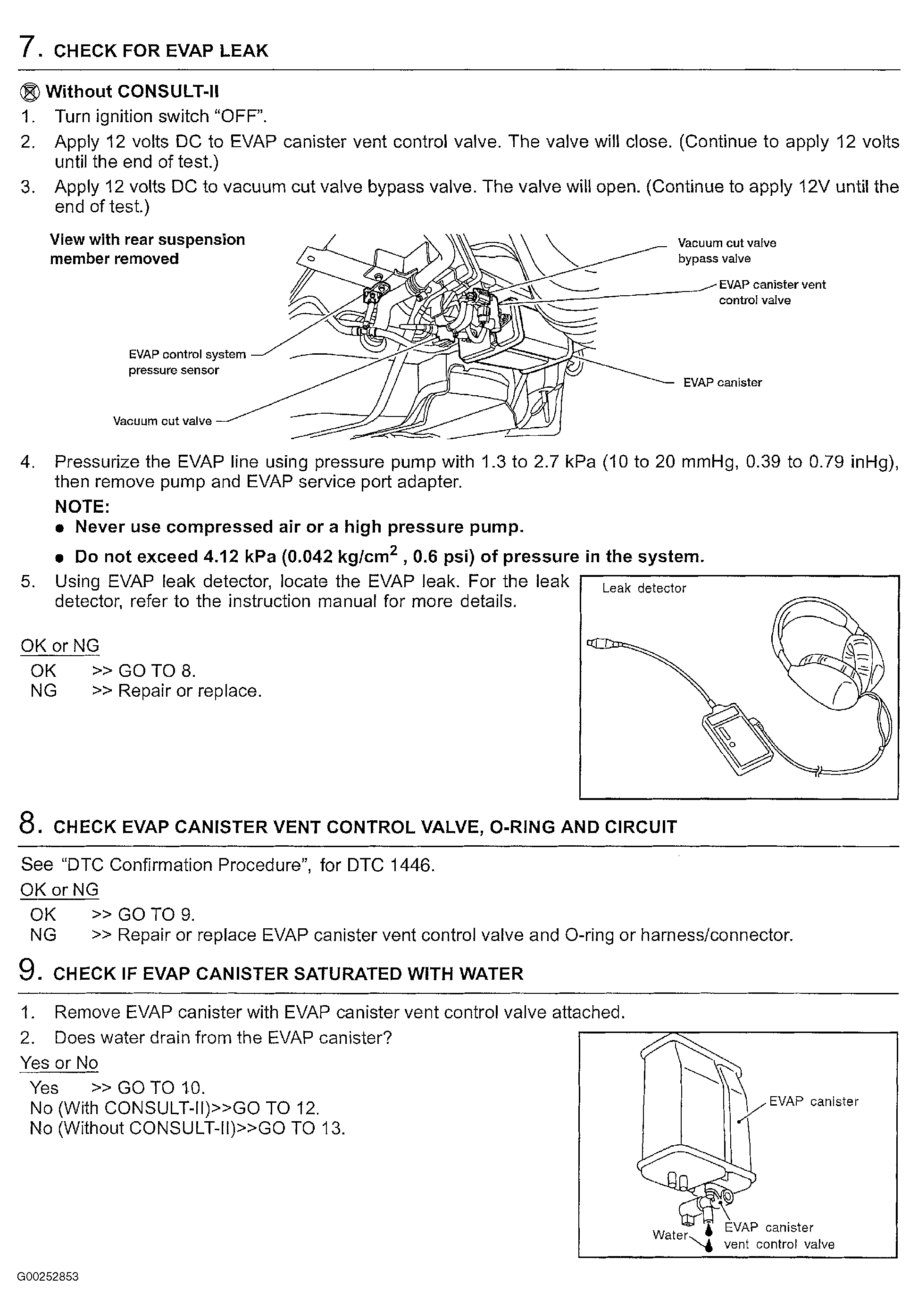

Fig 3: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 7-9 Of 25 - 3.5L)
G00252853Courtesy of NISSAN MOTOR CO., U.S.A.

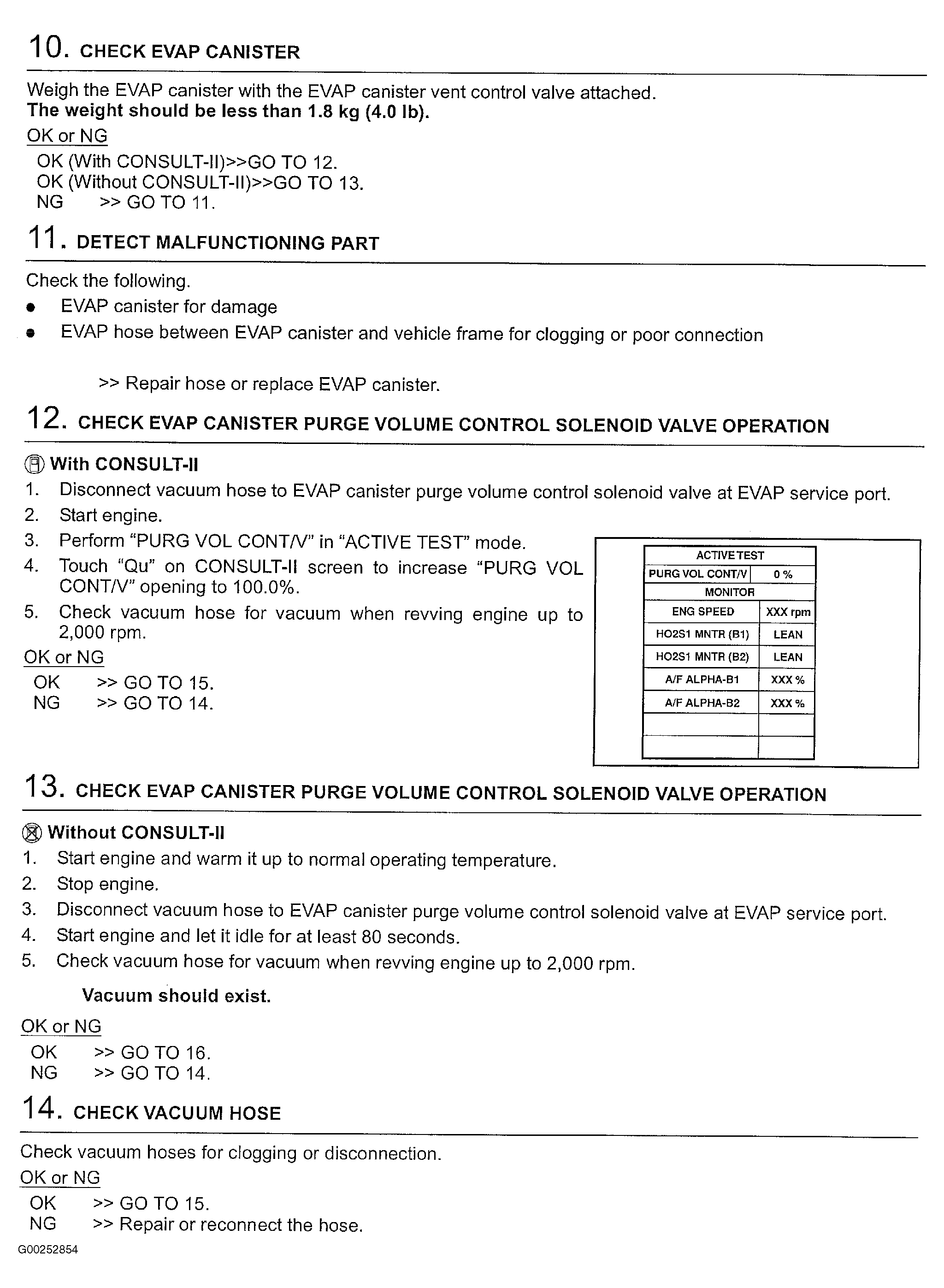

Fig 4: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 10-14 Of 25 - 3.5L)
G00252854Courtesy of NISSAN MOTOR CO., U.S.A.

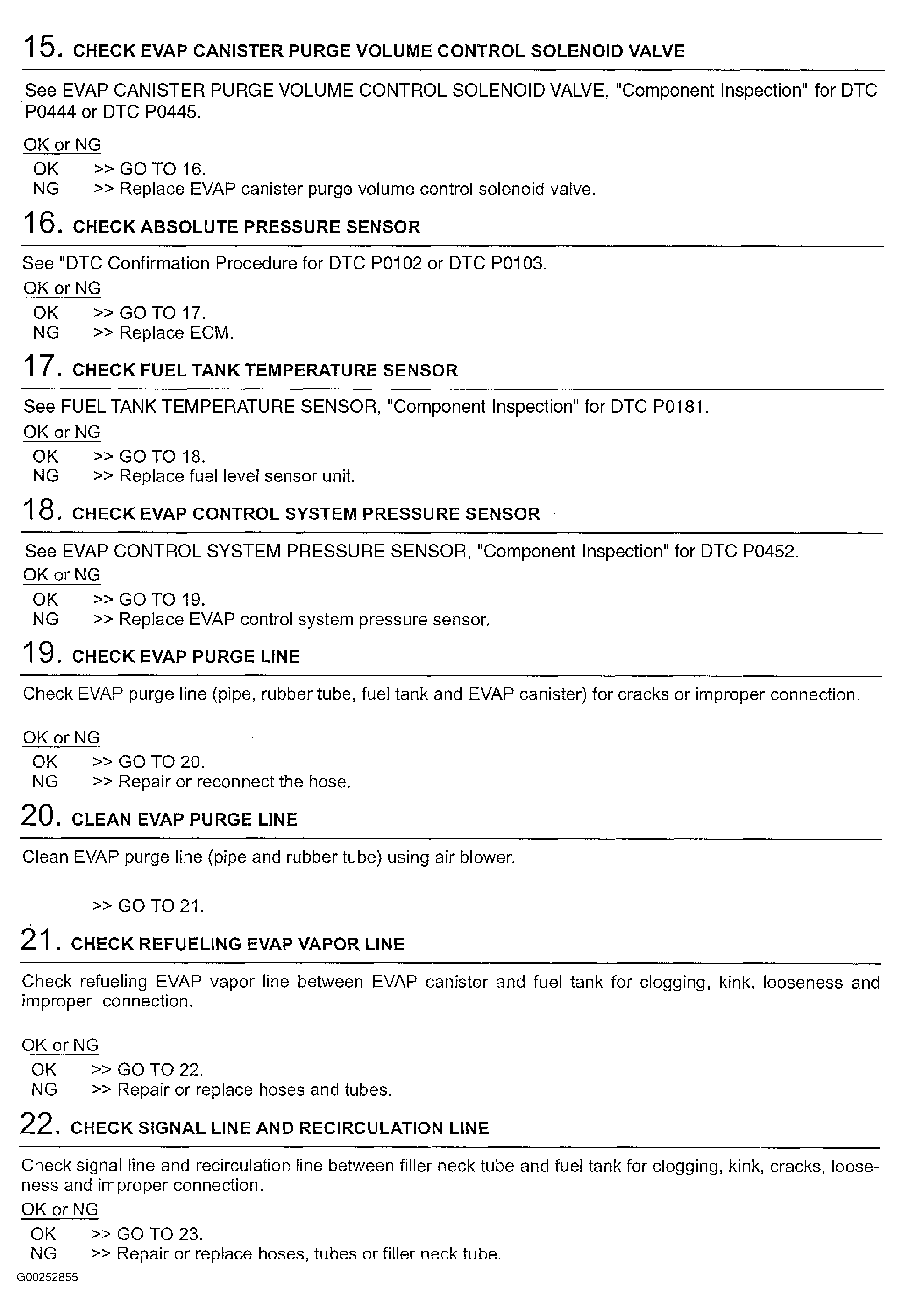

Fig 5: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 15-22 Of 25 - 3.5L)
G00252855Courtesy of NISSAN MOTOR CO., U.S.A.

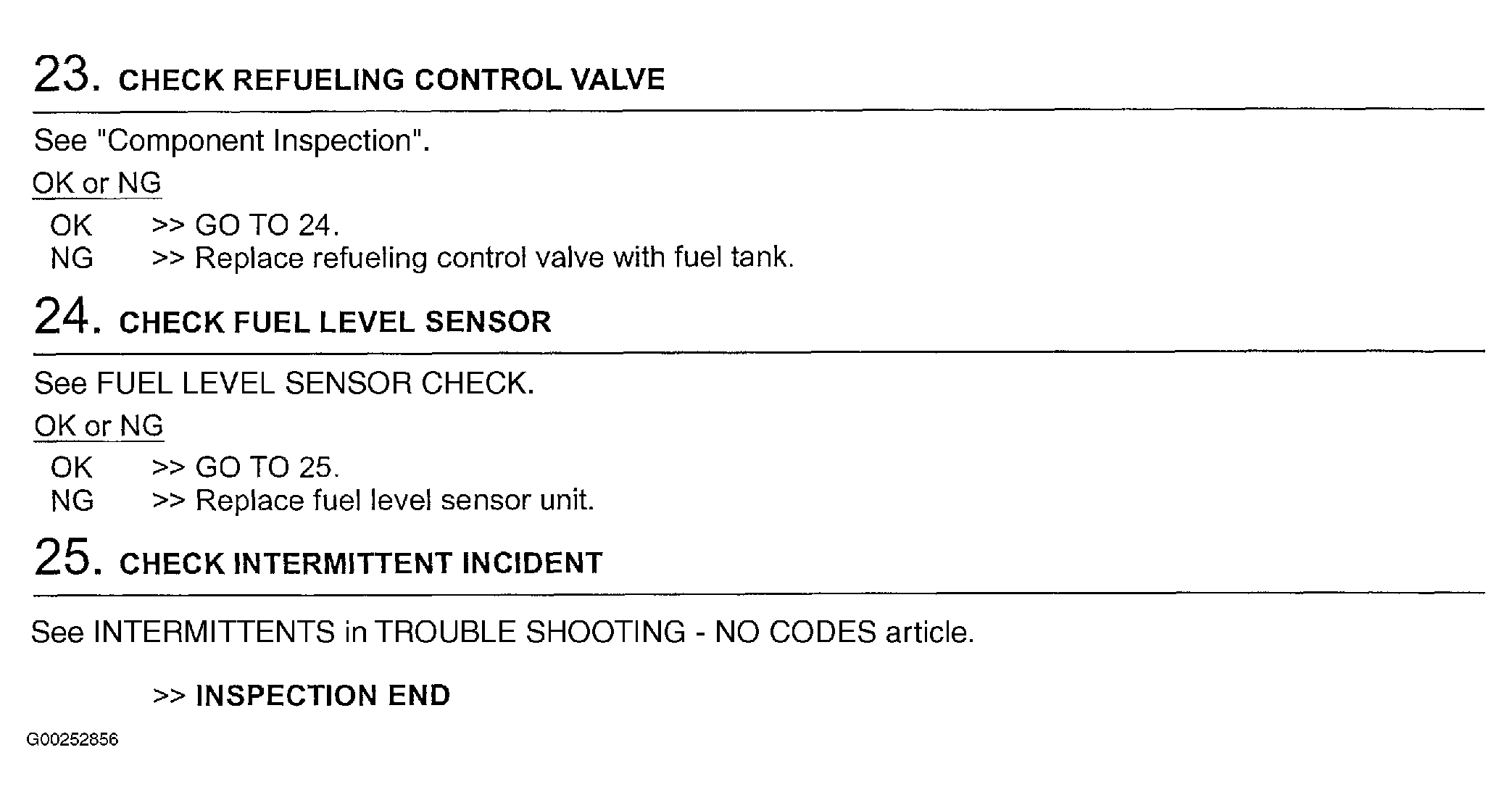

Fig 6: Identifying Diagnostic Procedure For DTC P0442: EVAP Control System (Steps 23-25 Of 25 - 3.5L)
G00252856Courtesy of NISSAN MOTOR CO., U.S.A.
