DTC Confirmation Procedure (DTC P1126)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

For DTC P1126 confirmation procedure, see Fig 1.

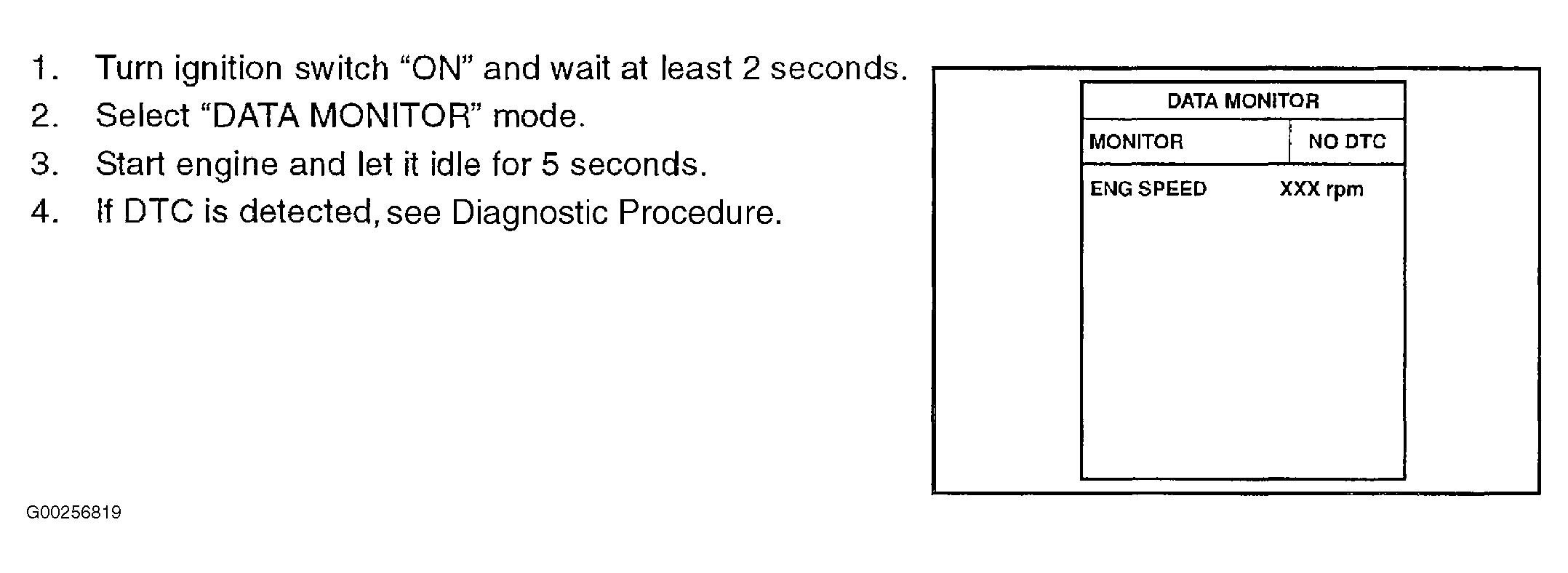

Fig 1: Identifying DTC Confirmation Procedure For DTC P1126: Throttle Control Motor Relay
G00256819Courtesy of NISSAN MOTOR CO., U.S.A.
