Diagnostic Procedure (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component inspection, see COMPONENT INSPECTION and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1-Fig 2 .

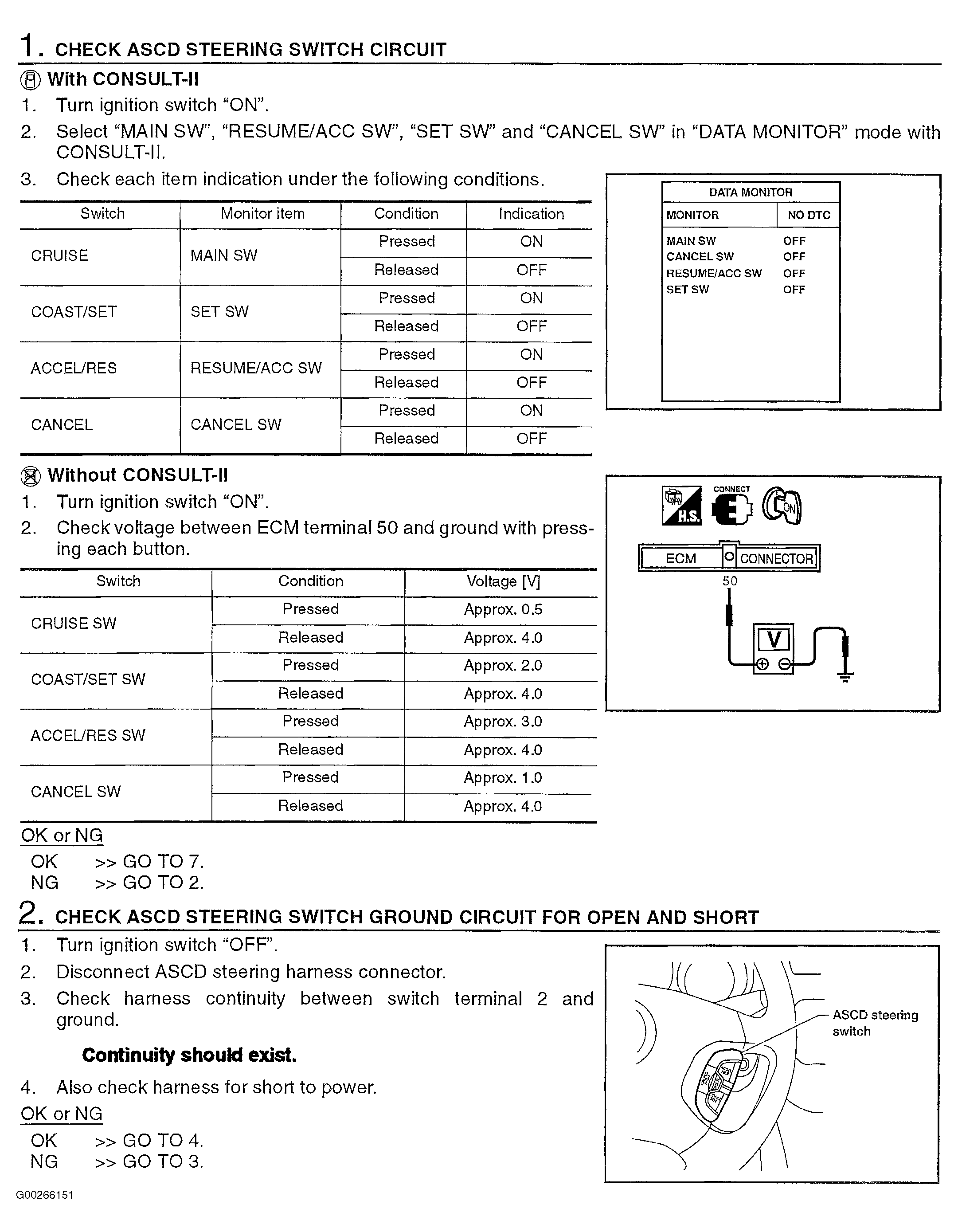

Fig 1: Identifying Diagnostic Procedure For DTC P1564: ASCD Steering Switch (Steps 1-2 Of 7 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

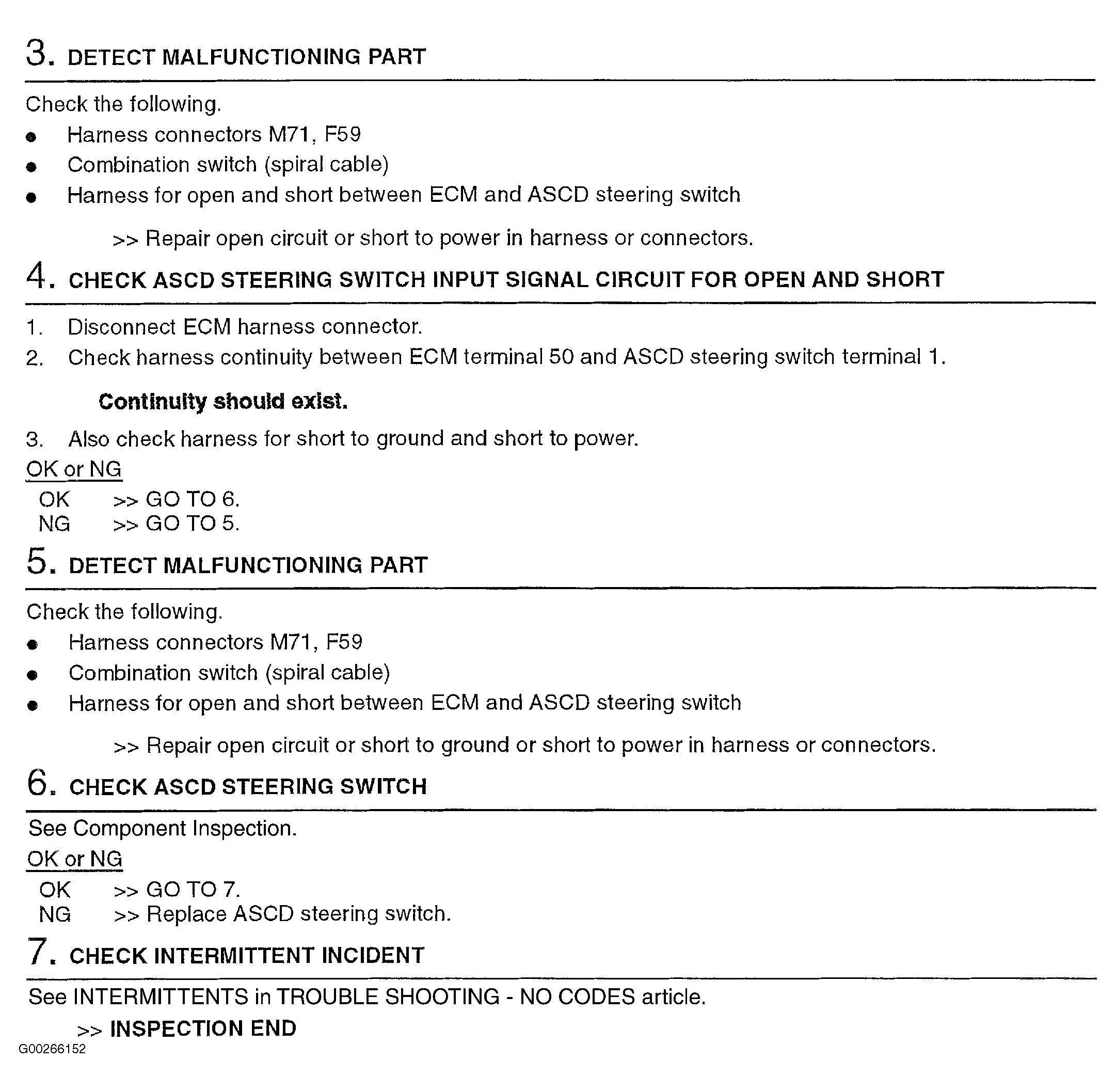

Fig 2: Identifying Diagnostic Procedure For DTC P1564: ASCD Steering Switch (Steps 3-7 Of 7 - 3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
