Entering Diagnostic Test Modes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For work support, see WORK SUPPORT MODE , for self-diagnostic results, see SELF-DIAGNOSTIC RESULTS MODE , for data monitor, see DATA MONITOR MODE , for data monitor (Spec), see DATA MONITOR (SPEC) MODE , for active test, see ACTIVE TEST MODE  and for DTC and SRT confirmation, see DTC & SRT CONFIRMATION MODE .
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under left dash panel near the fuse box cover. See Fig 1.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
  5. Touch "ENGINE".
  6. Perform each diagnostic test mode according to each service procedure. See Fig 2. For further information, see the CONSULT-II operation manual.
Fig 1: Locating Data Link Connector
G00147138Courtesy of NISSAN MOTOR CO., U.S.A.

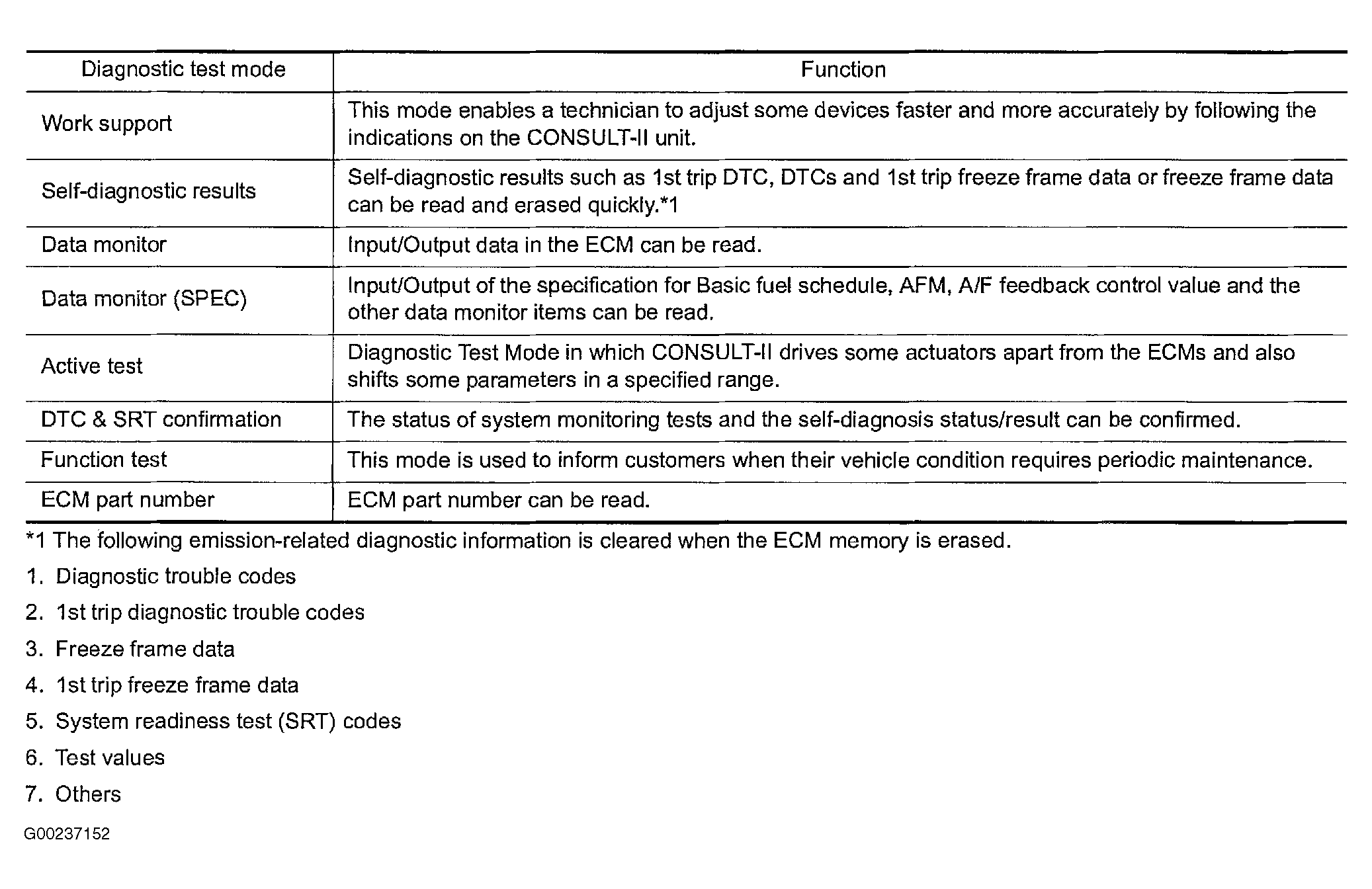

Fig 2: Identifying Diagnostic Test Modes
G00237152Courtesy of NISSAN MOTOR CO., U.S.A.
