DTC 11, 12, 13, 14: ABS Sensor (Open Circuit or Short Circuit): Notes

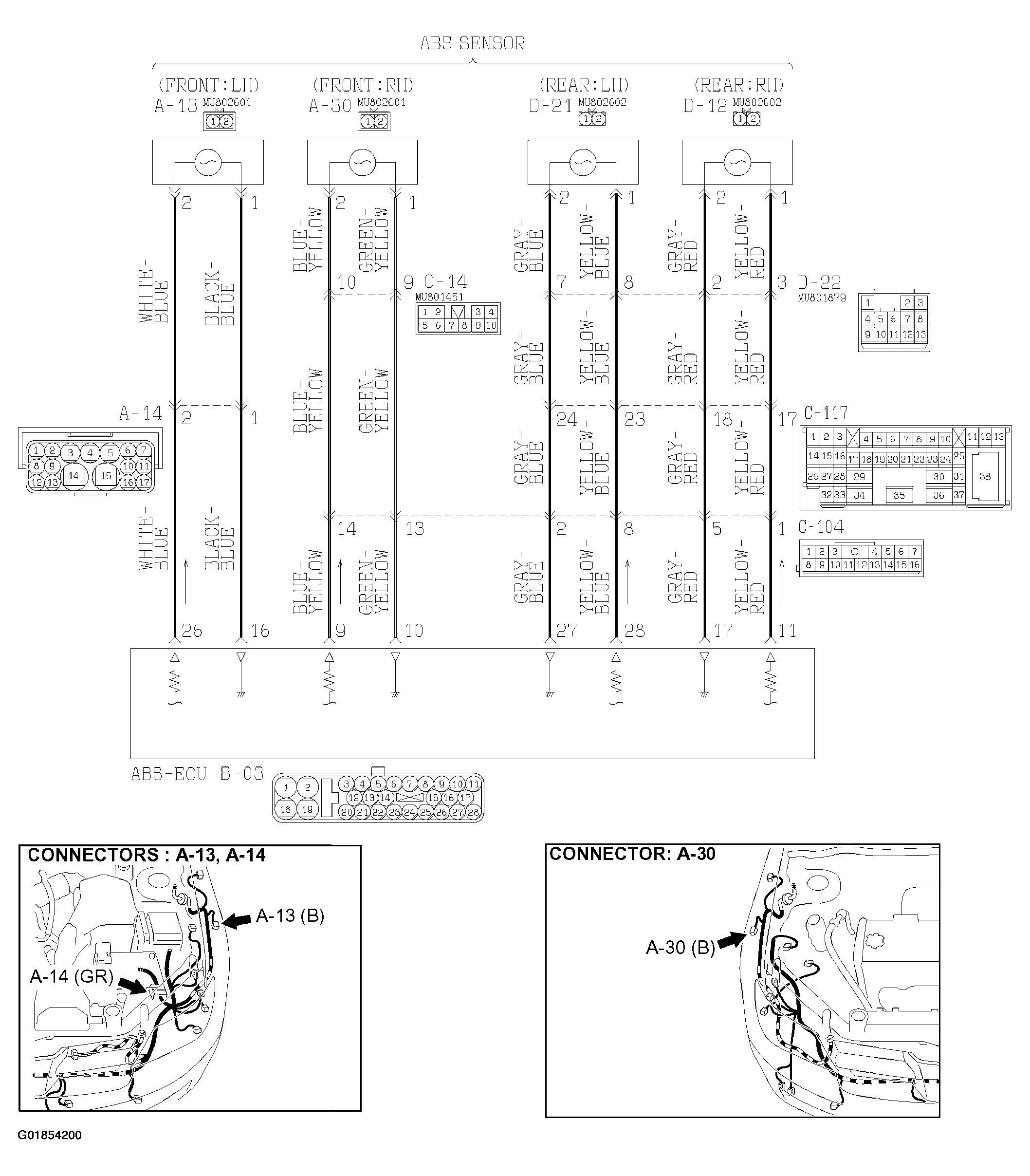

Fig 1: ABS Sensor Circuit Diagram
G01854200Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

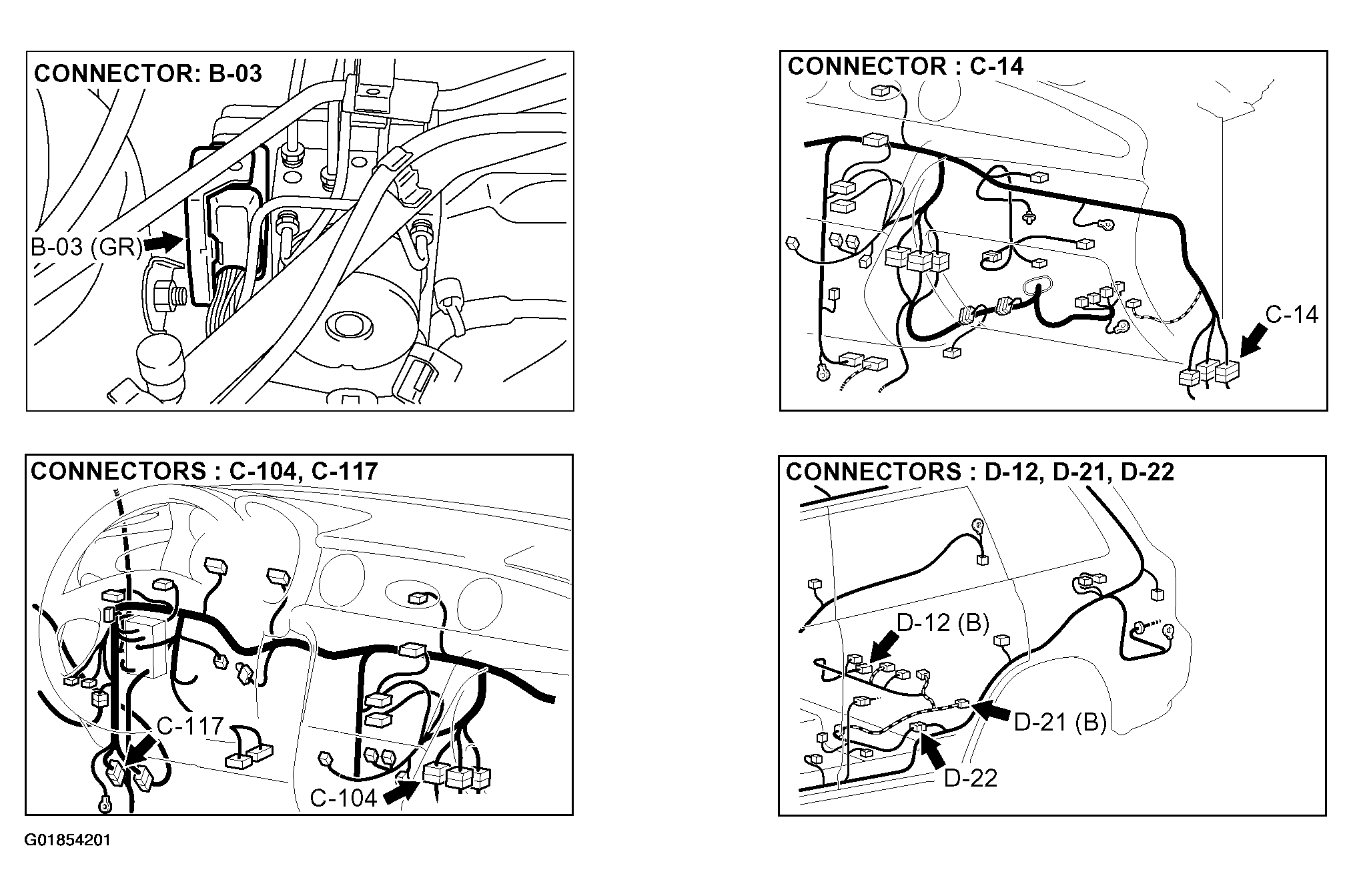

Fig 2: ABS Sensor Circuit Harness Connectors
G01854201Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
