Removal And Installation: Notes

CAUTION: For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.

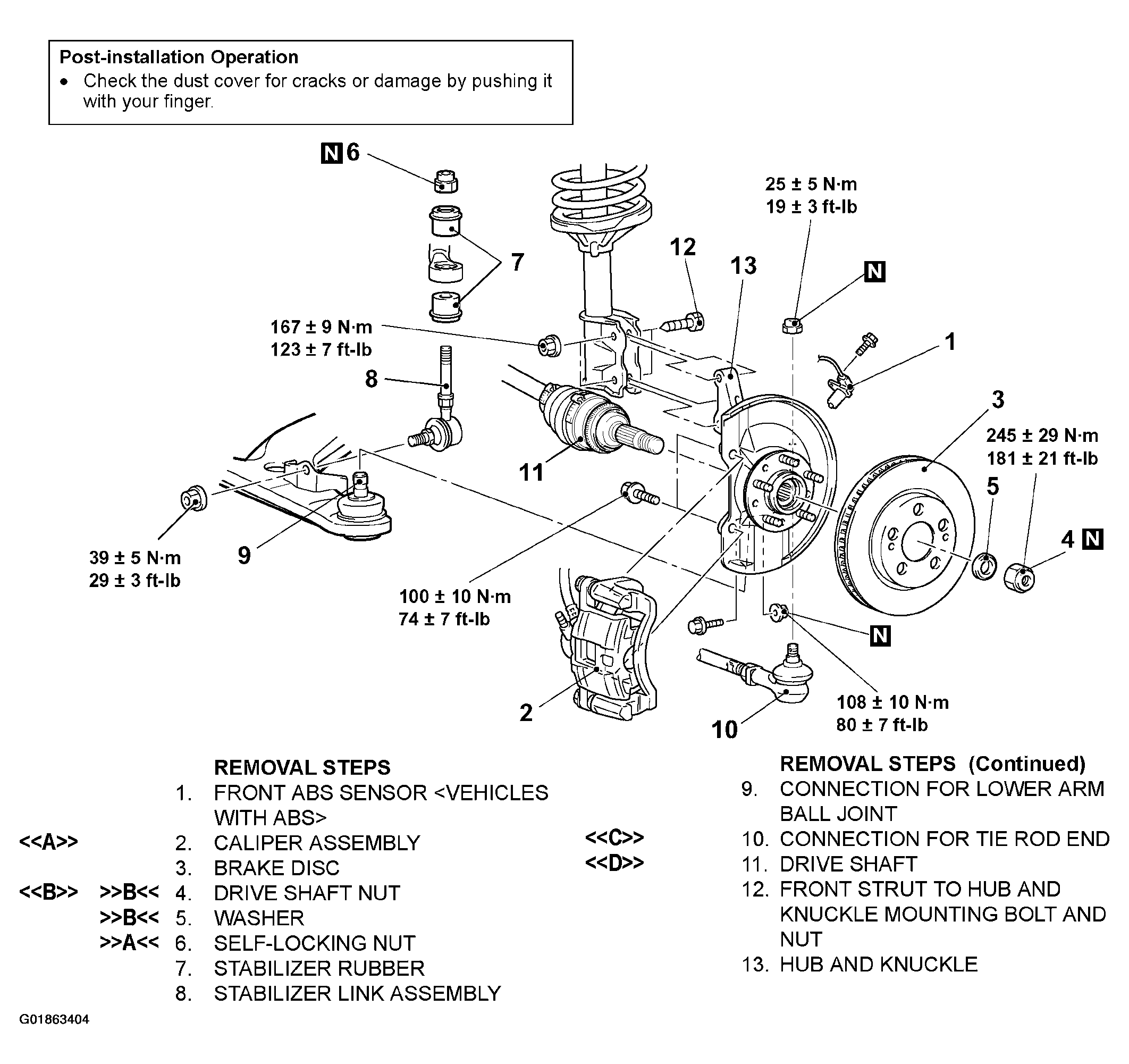

Fig 1: Removing & Installing Front Axle Hub Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools :

MB990767: End Yoke Holder
MB991897: Ball Joint Remover
MB990241: Axle Shaft Puller
MB991354: Puller Body
