Circuit Operation

If the select switch of the shift switch assembly is set to the sport mode, battery positive voltage will be applied to the PCM (terminal 109). If the shift switch of the shift switch assembly is set to "UP" or "DOWN" position, battery positive voltage will be applied to the PCM (terminal 122, 110).

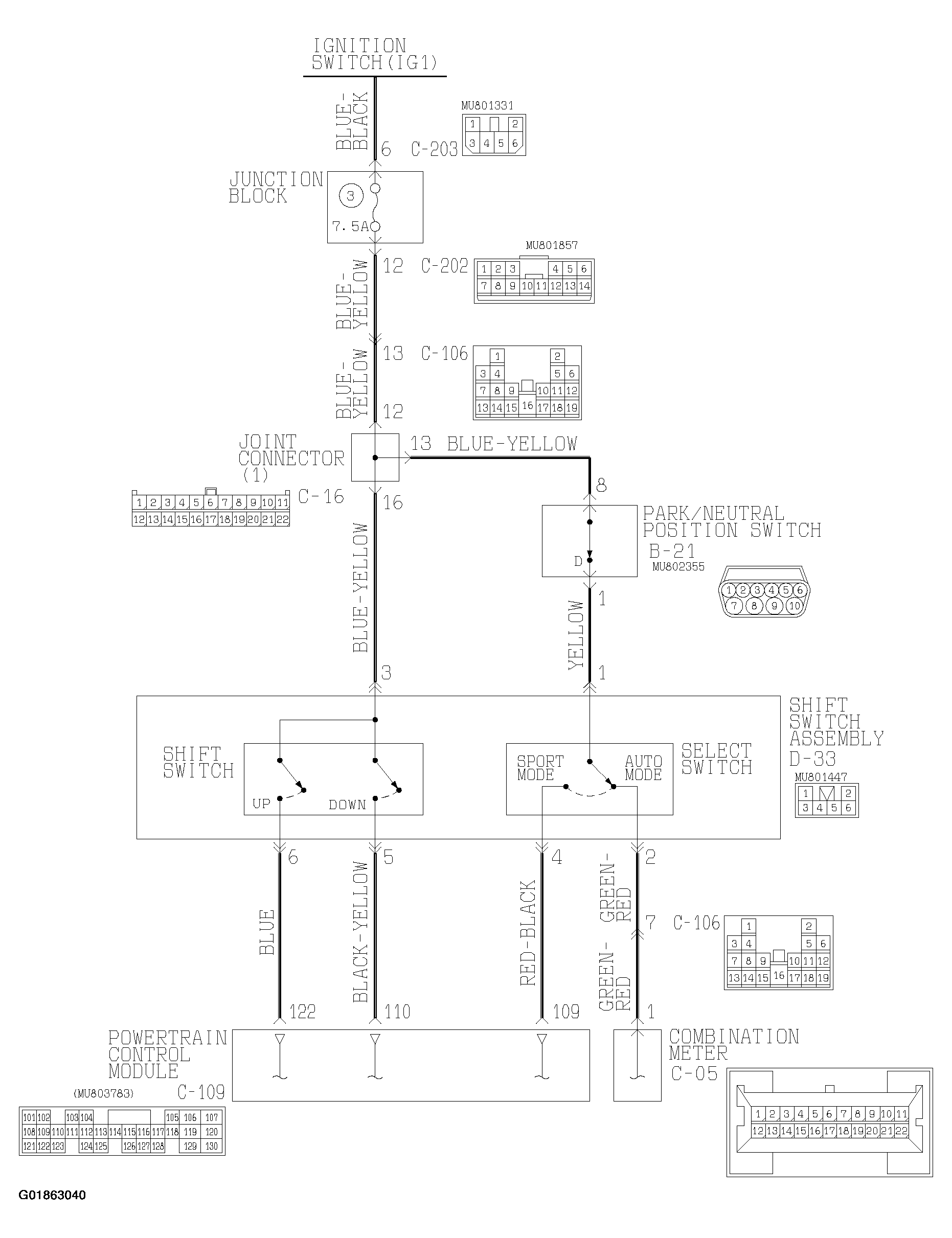

Fig 1: Identifying Shift Switch Assembly System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

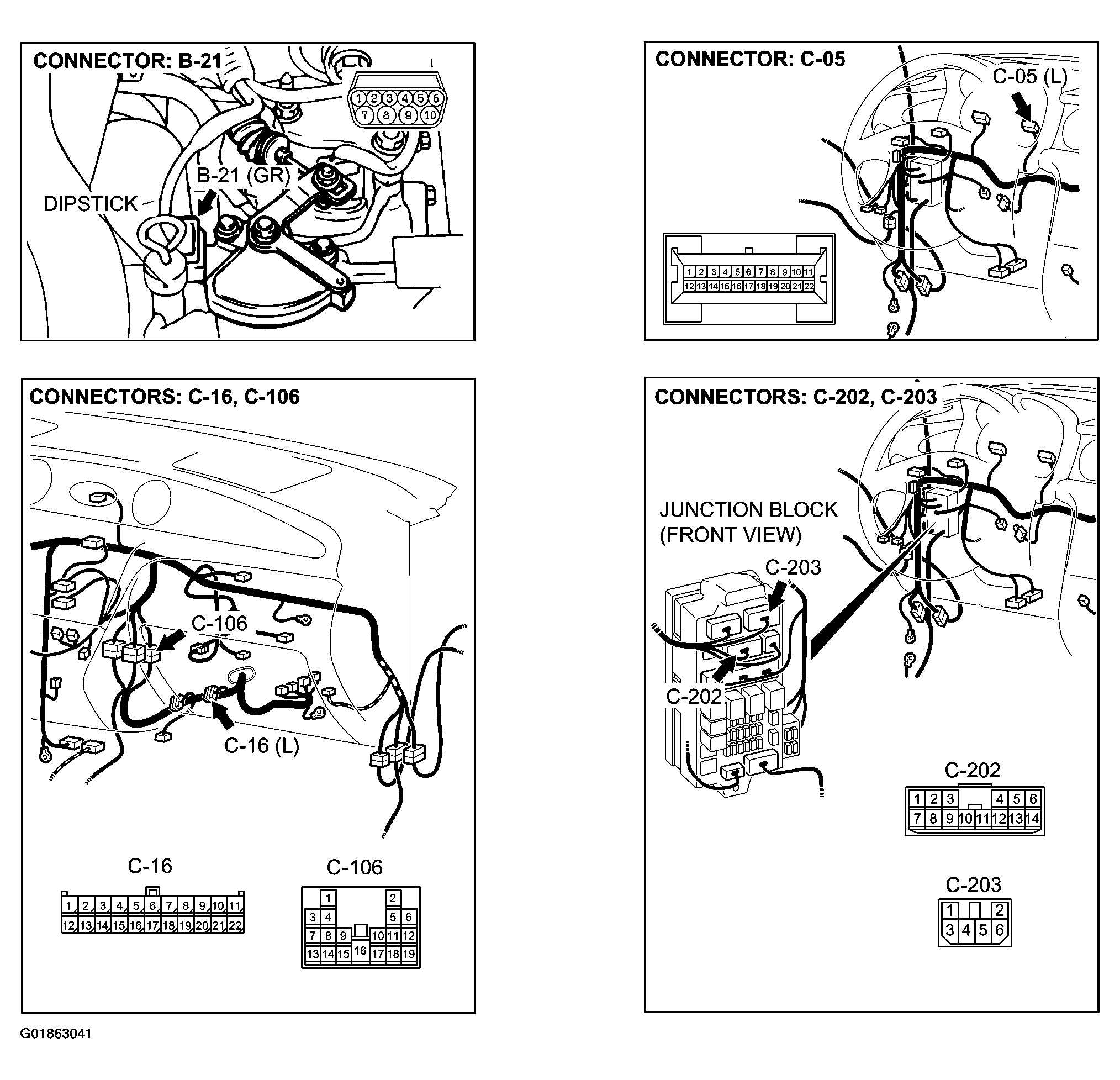

Fig 2: Identifying Shift Switch Assembly Connectors (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

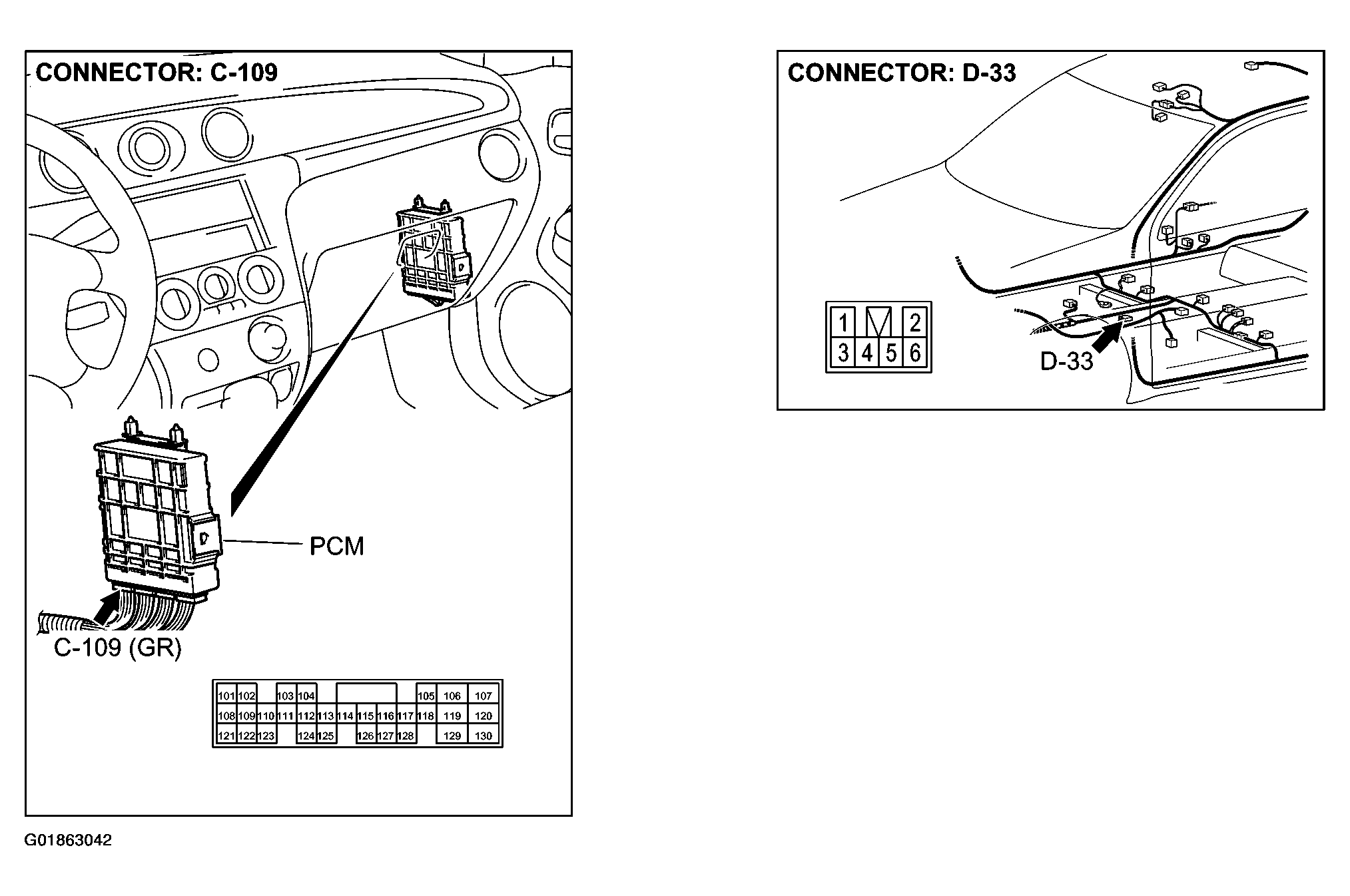

Fig 3: Identifying Shift Switch Assembly Connectors (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
