>> C << Transaxle Assembly Upper Part Coupling Bolts Installation

Assemble the harness clamp as shown in the illustration of the instructions. The bolts A shown in the illustration of the instructions should then be tightened along with the grounding.

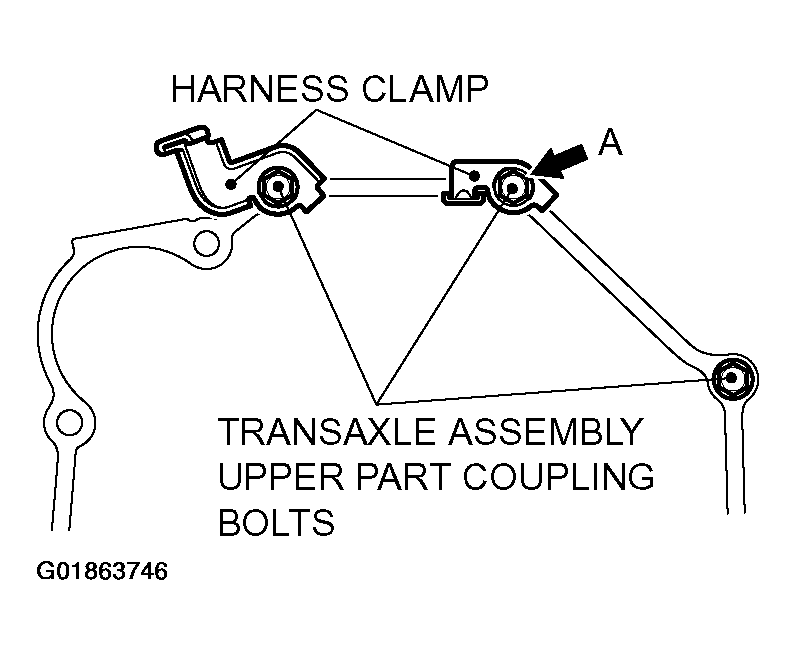

Fig 1: Assembling Harness Clamps
G01863746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
