<< D >> Engine Assembly Supporting

Set the special tool MB991895 to the front fender assembling bolt (A, B) and radiator upper insulator assembling bolt (C, D) inside the engine room, as shown in the Figure of the instructions.

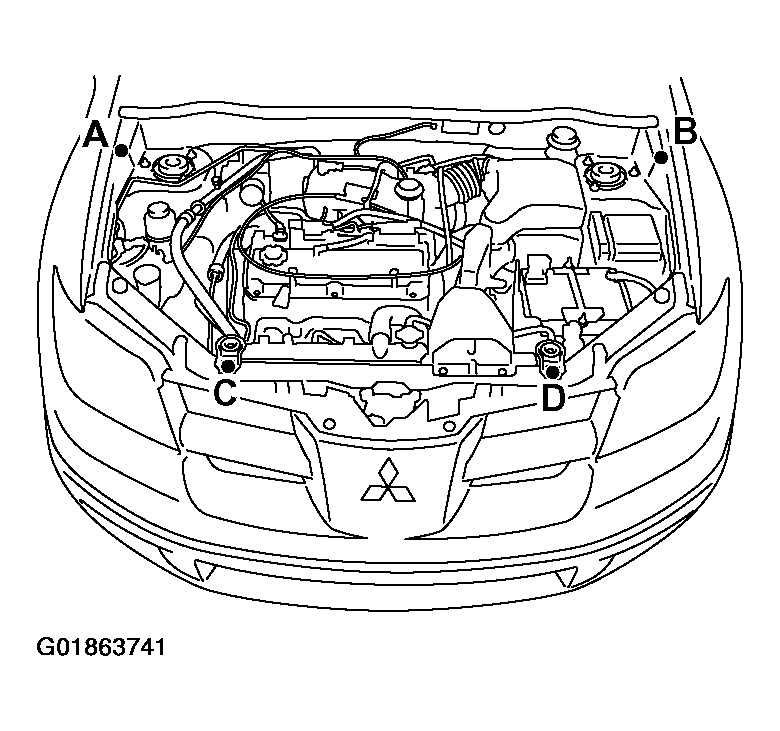

Fig 1: Identifying Front Fender Assembling Bolt A, B, C And D
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

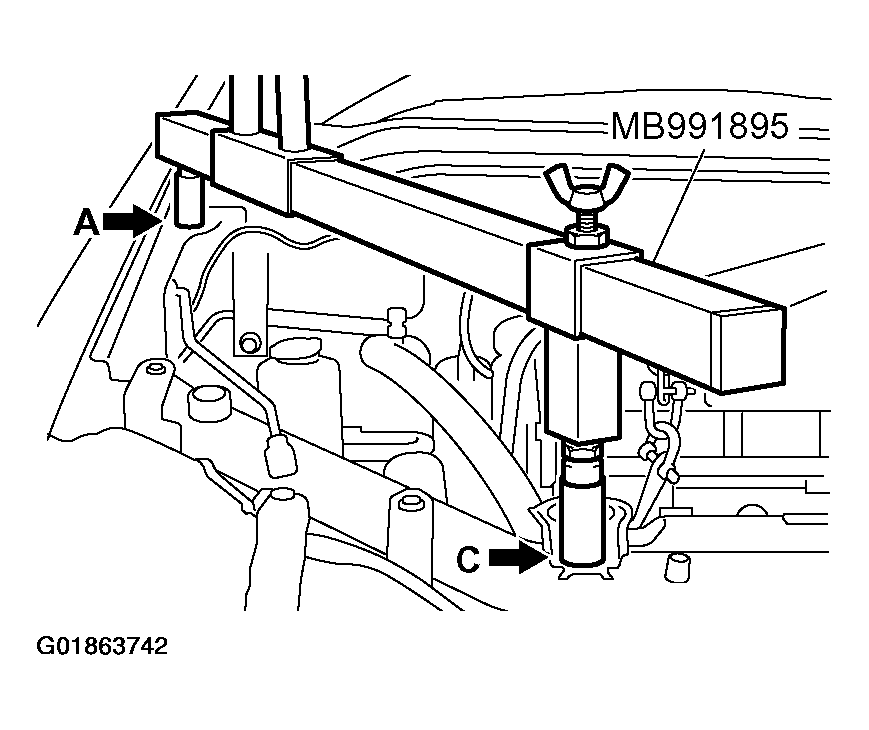

Fig 2: Setting Special Tool To Front Fender Assembling Bolt A And C
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

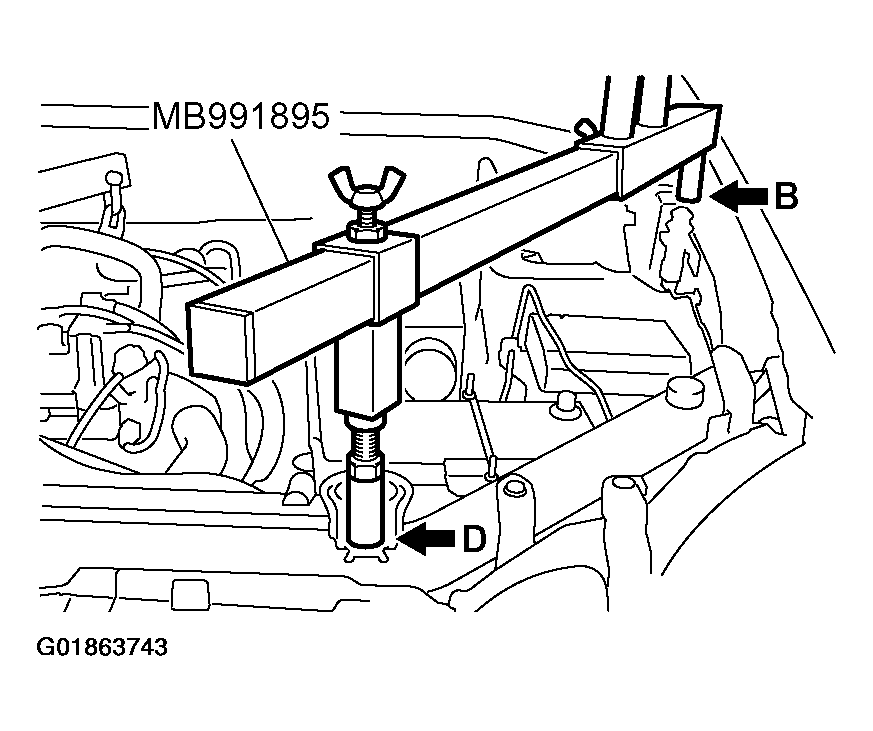

Fig 3: Setting Special Tool To Front Fender Assembling Bolt B And D
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the special tools MB991454 and MB991527, support the engine Trans-axle assembly, and unscrew the Trans-axle assembly upper part coupling bolts that were priority loosened.

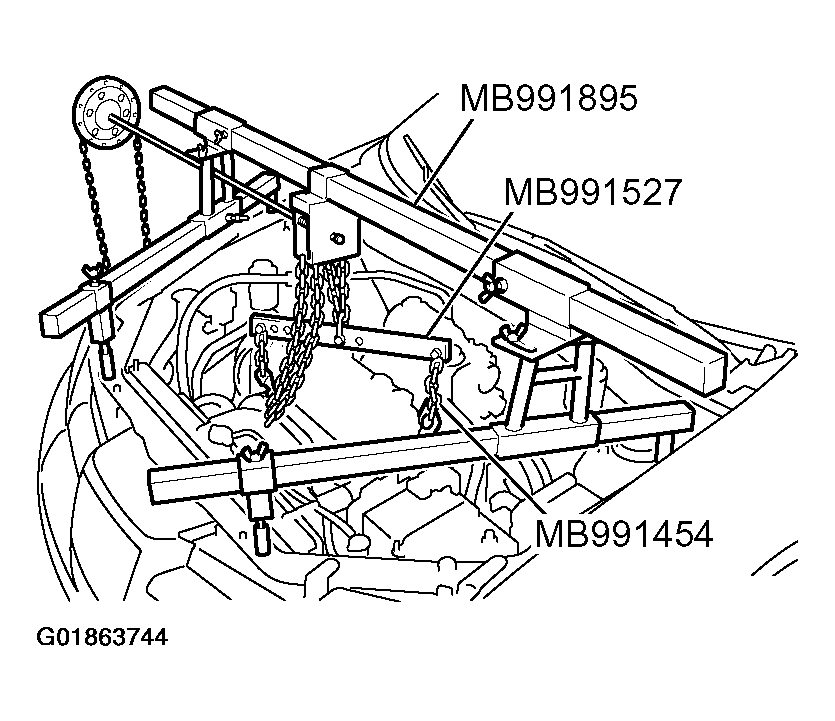

Fig 4: Supporting Engine Trans-Axle Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
