DTC P0461: Fuel Level Sensor Circuit Range/Performance (Sensor 1) (4WD): Operation

The fuel gauge (main) drive signal is input in PCM (terminal No. 33). See Fig 1 . For component and connector locations, see Fig 2 .

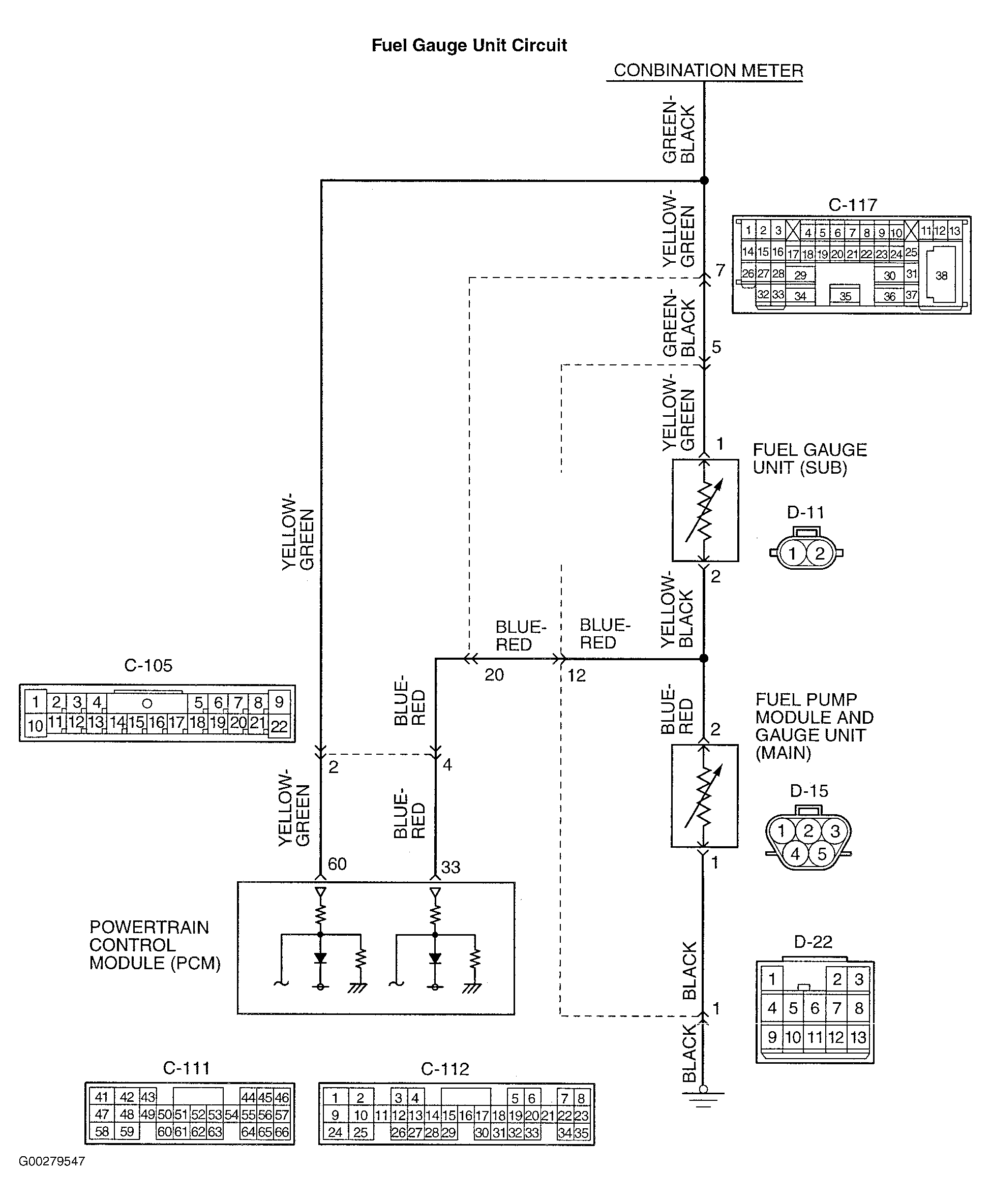

Fig 1: Fuel Level Sensor Circuit Wiring Diagram (4WD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

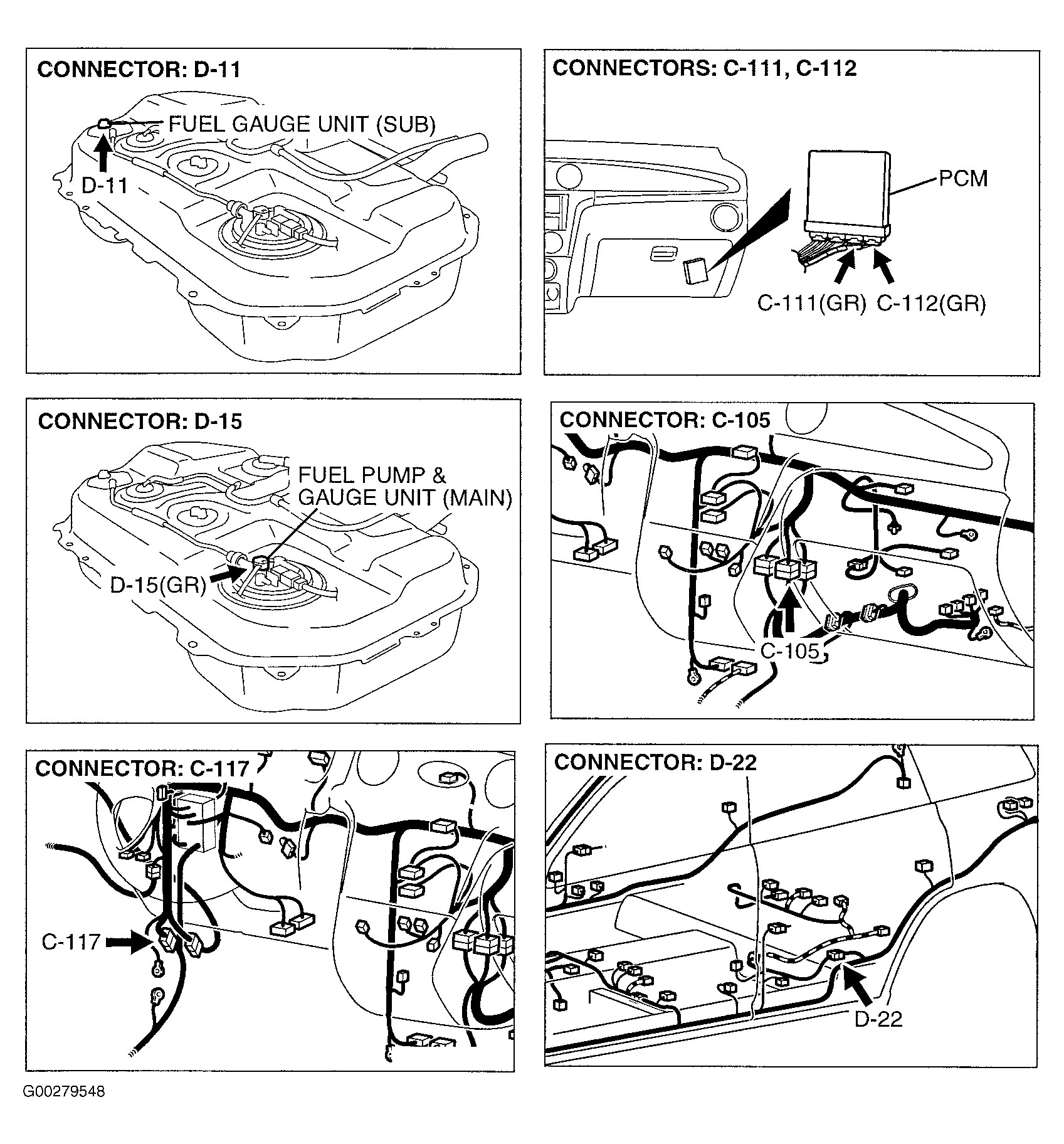

Fig 2: Locating Fuel Level Sensor Circuit Connectors & Components (4WD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
