Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

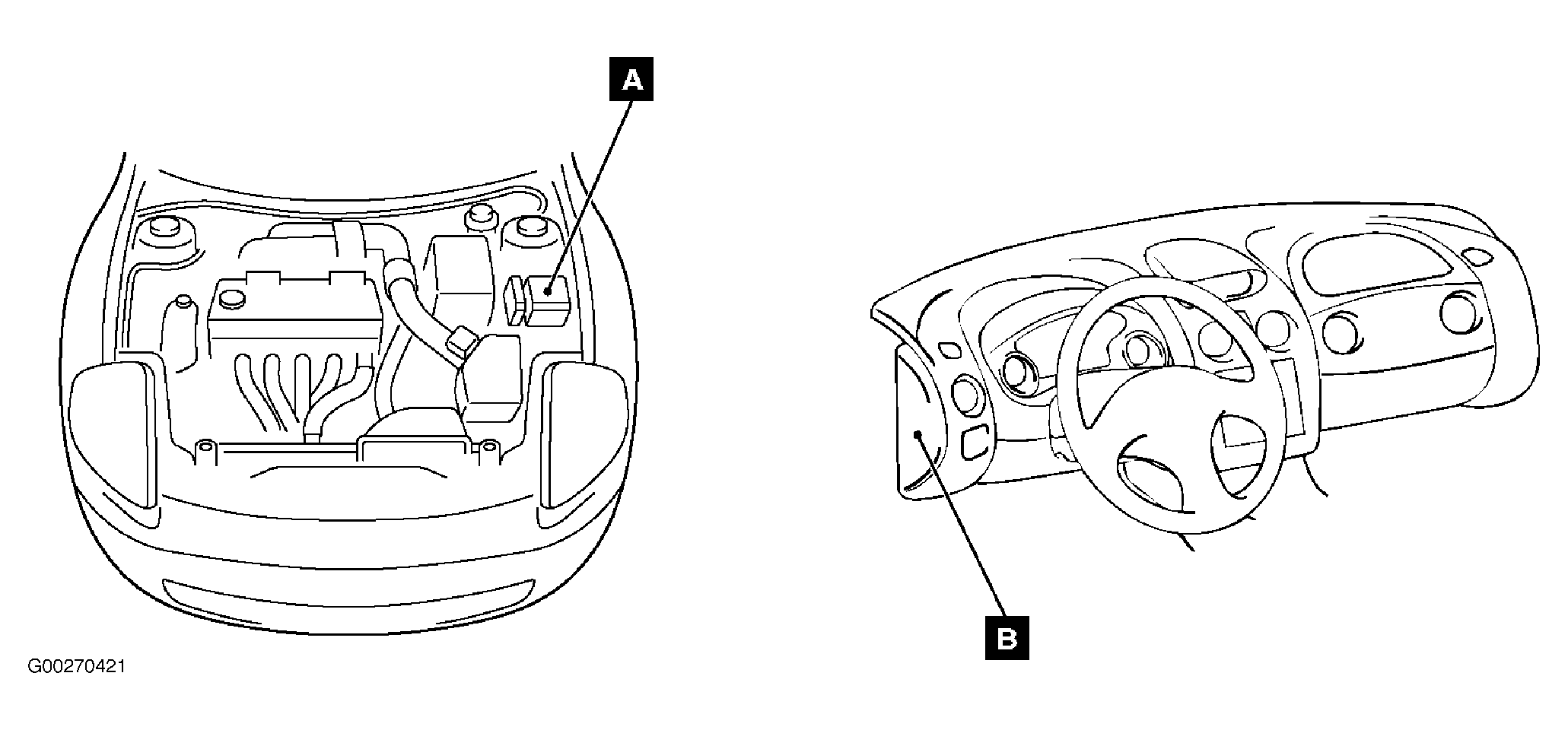

Engine Compartment Relay Box (A) Left side of engine compartment. See Figure .

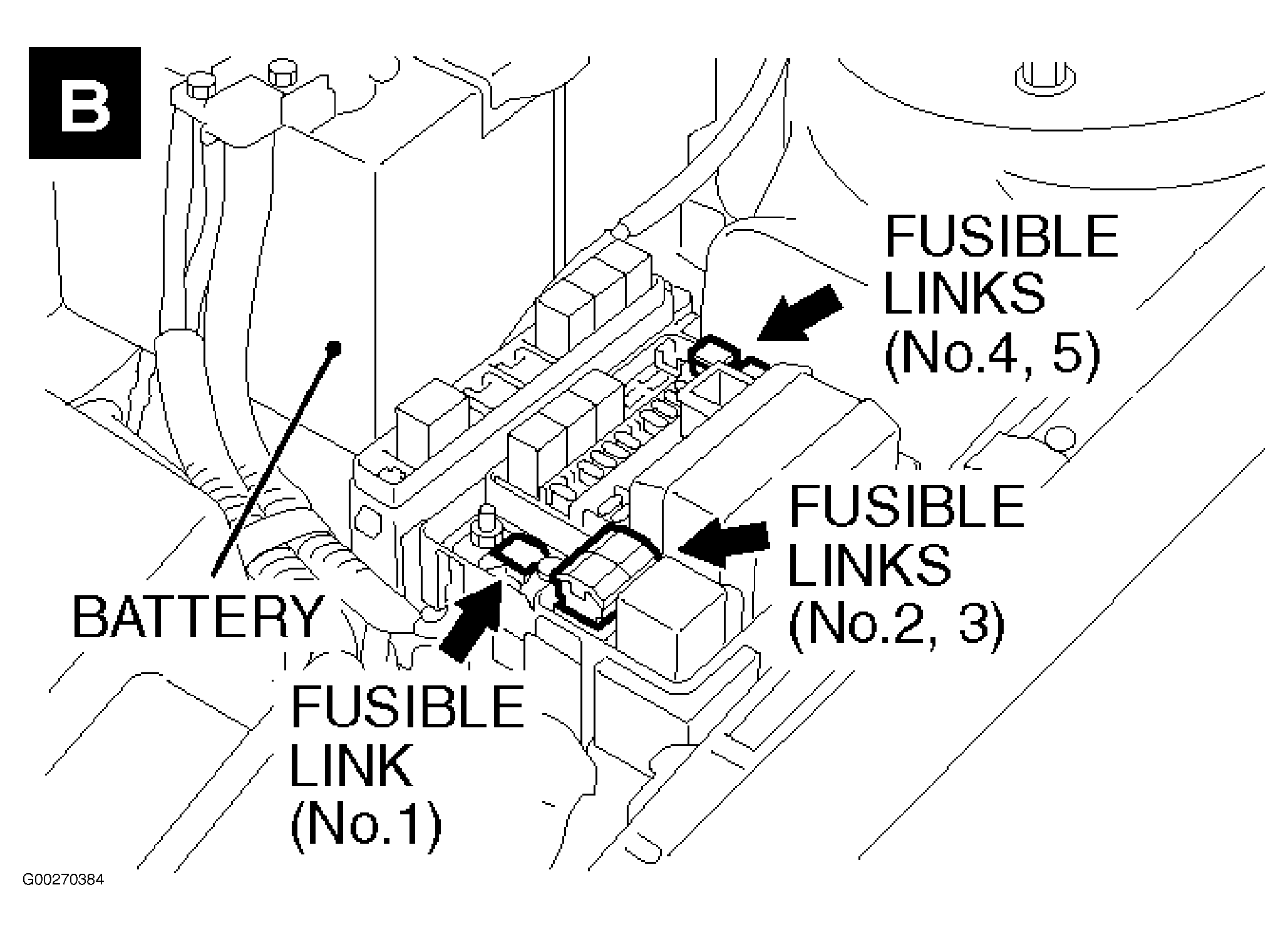

Fusible Link No. 1, 2, 3, 4 & 5 In engine compartment relay box. See Figure .

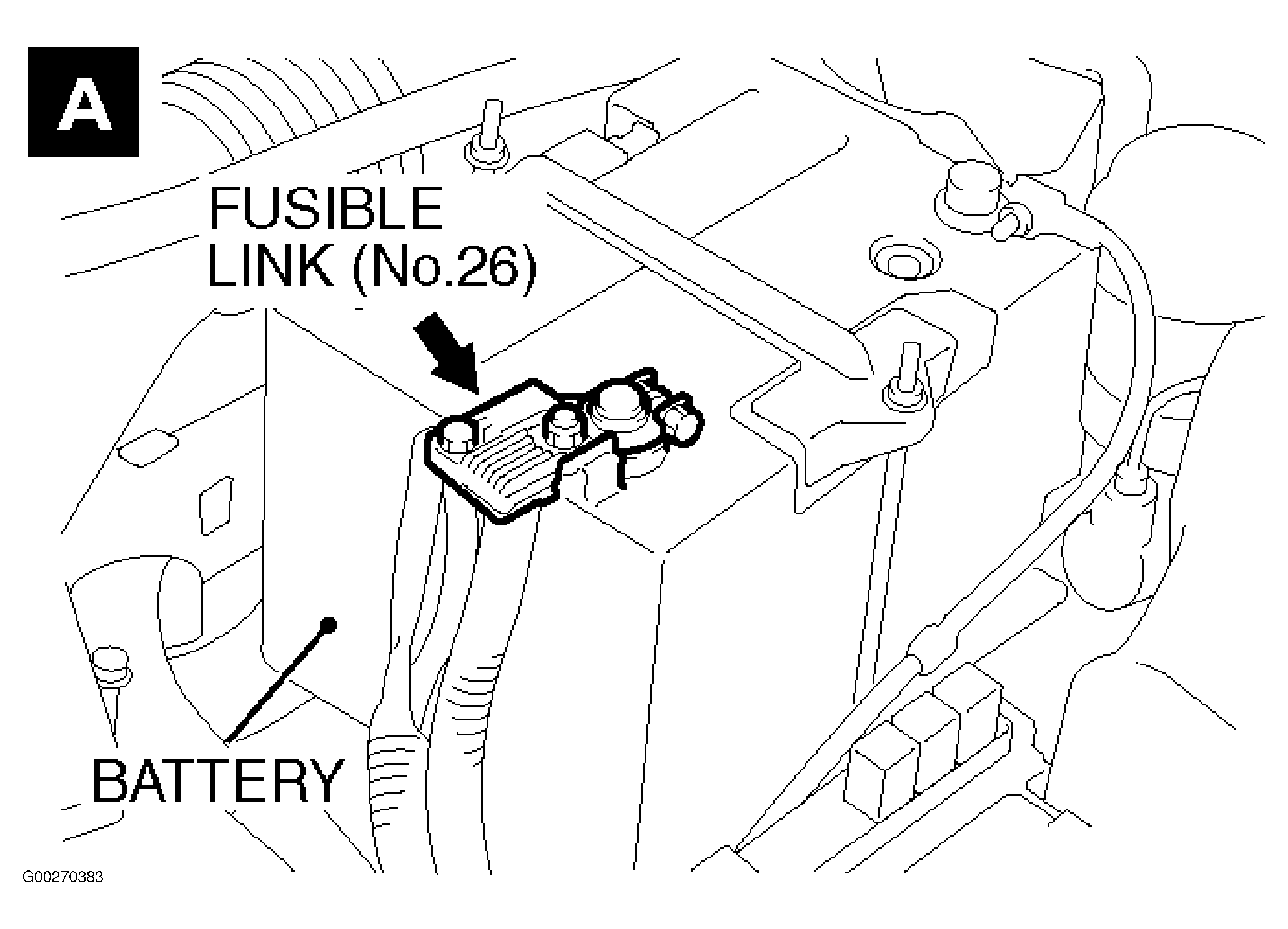

Fusible Link No. 26 Attached to positive battery cable. See Figure .

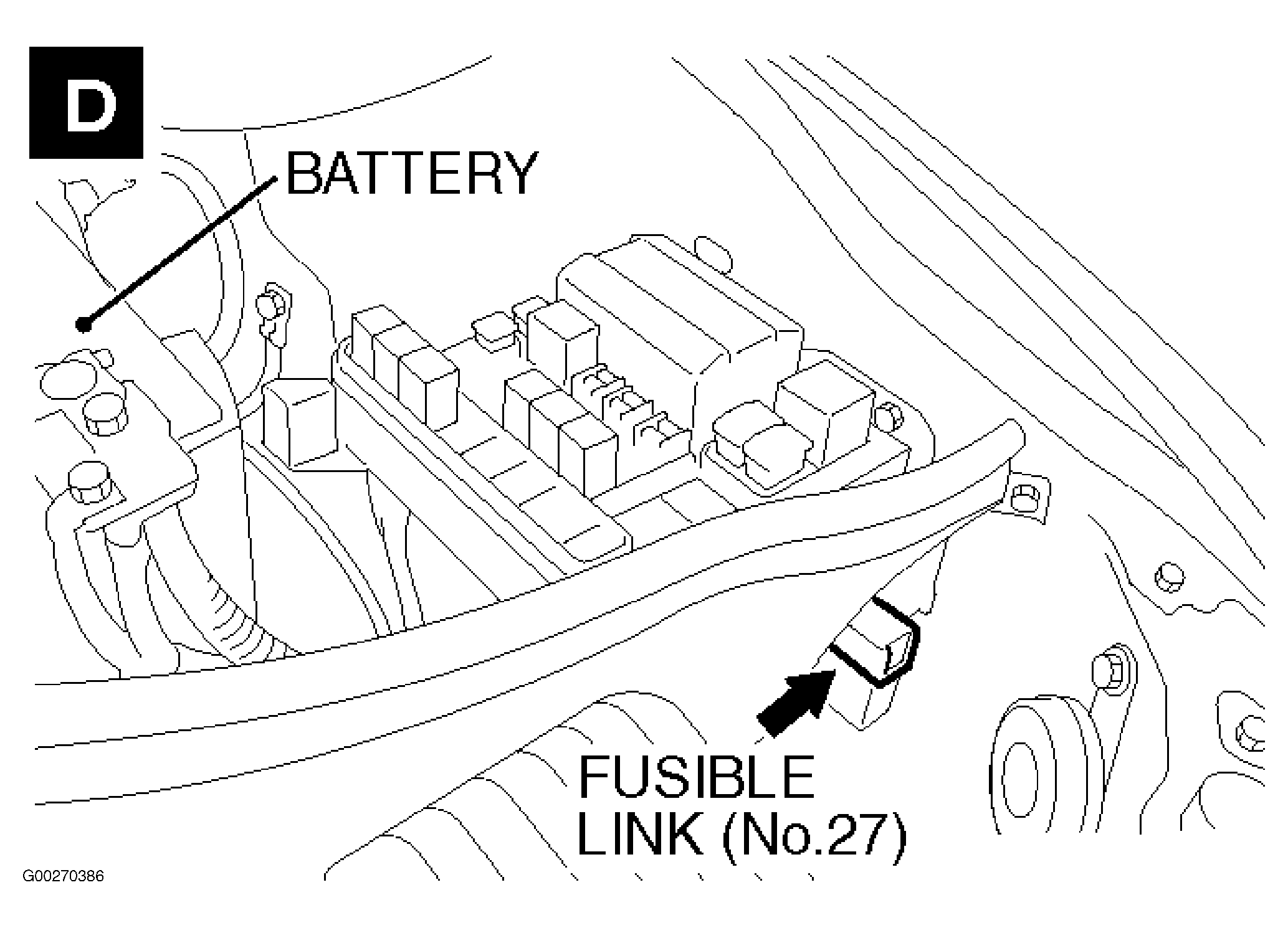

Fusible Link No. 27 Under front of engine compartment relay box. See Figure .

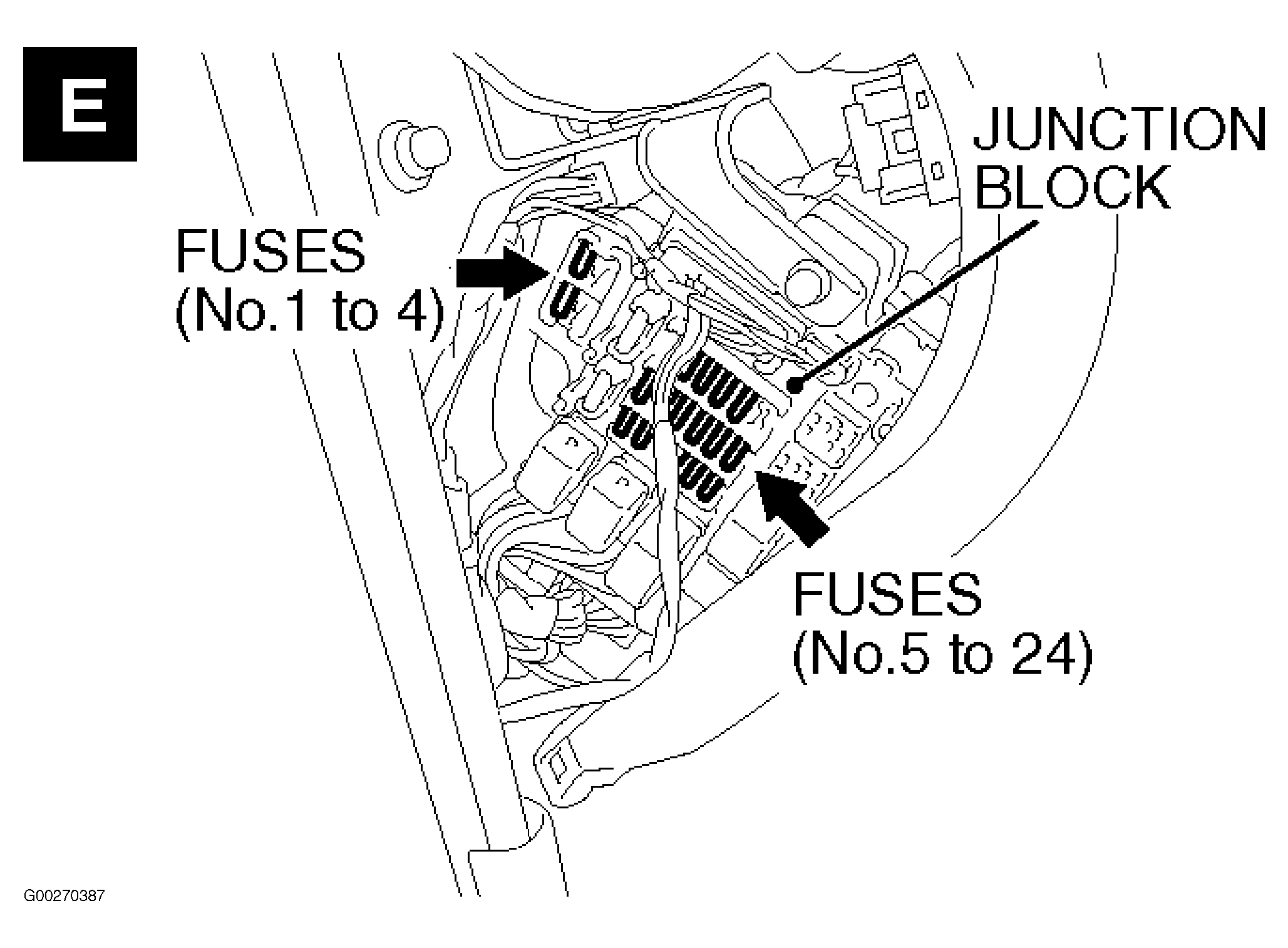

Junction Block (J/B) Under left end of dash. See Figure .
