Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and reassembly.
Never disassembly the BJ assembly except when replacing the BJ boot.

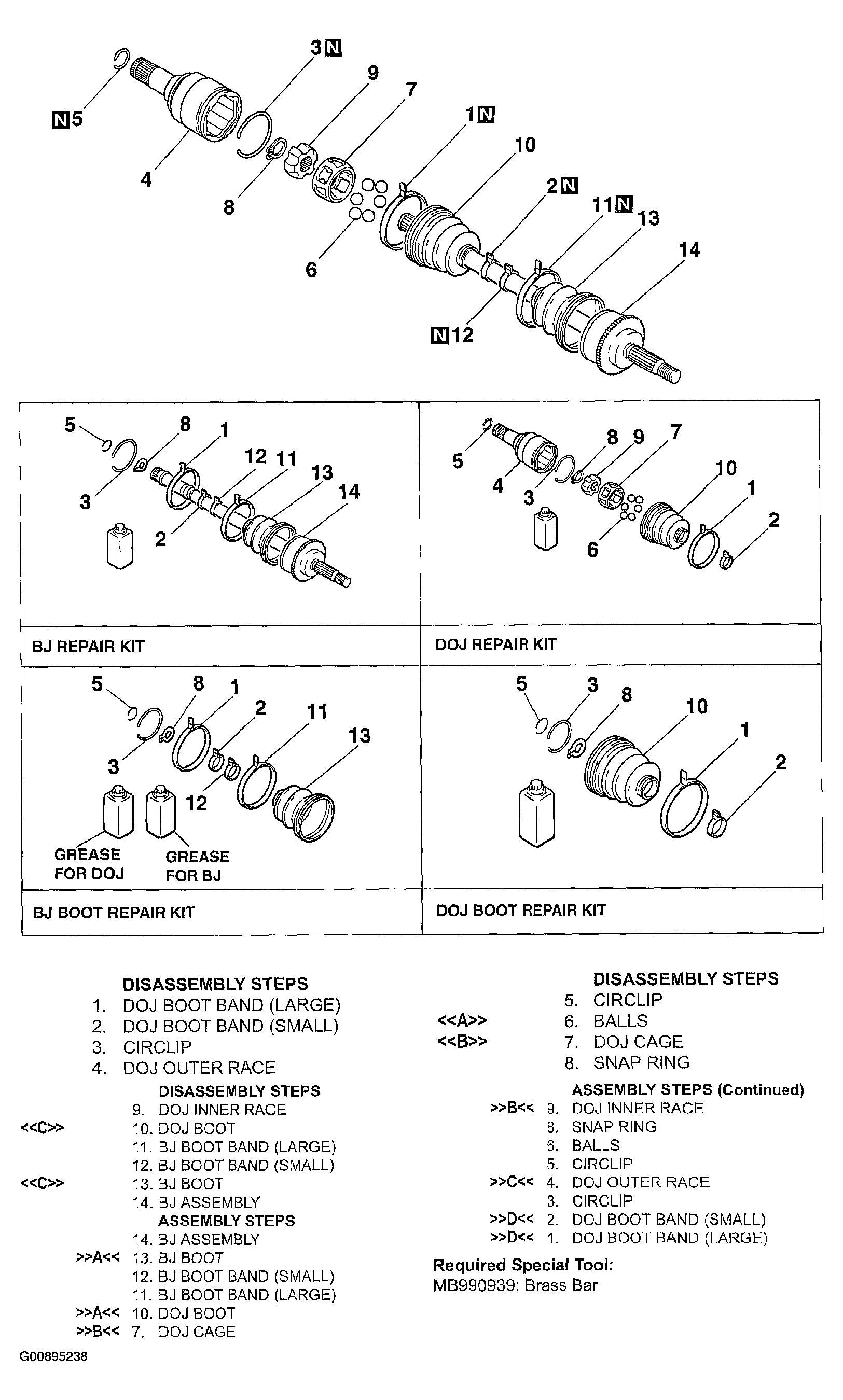

Fig 1: Disassembling/Assembling Rear Axle Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
