>> C << Transaxle Assembly Installation

  1. Install the transaxle assembly. (Refer to TRANSAXLE ASSEMBLY .)
  2. Remove from the car the 2 bolts, to assemble the radiator support upper insulator.

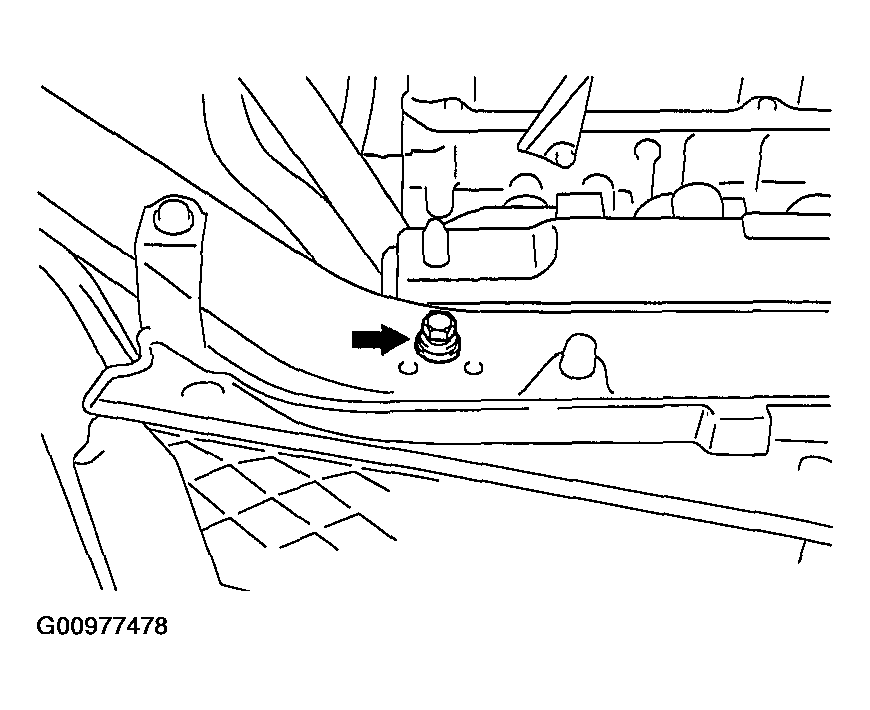

    Fig 1: Locating Support Bolt
    G00977478Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
