Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

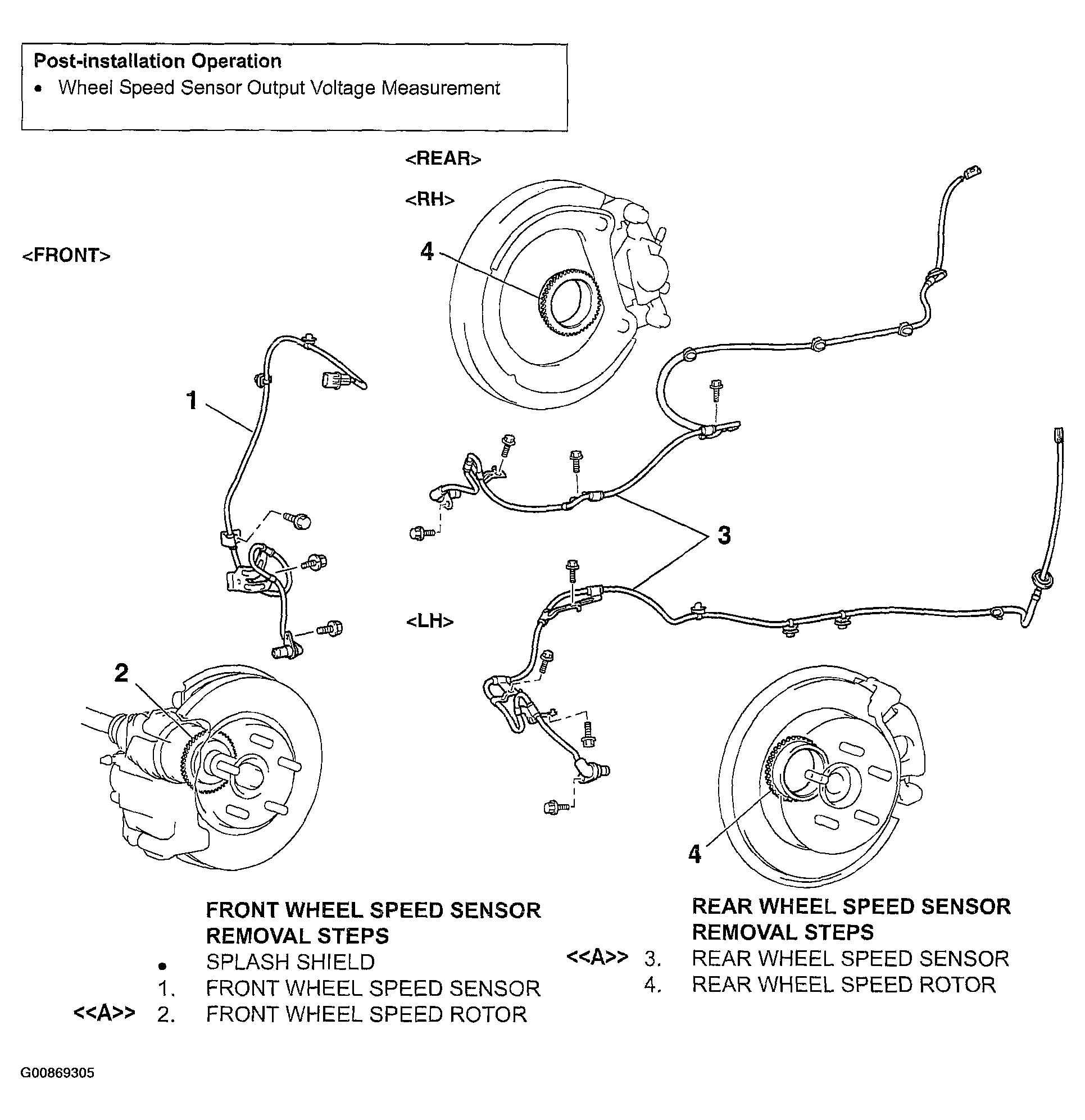

Fig 1: Removing And Installing Wheel Speed Sensor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Front wheel speed rotors are integrated with the BJ assembly of the drive shaft and cannot be disassembled.

NOTE: Rear wheel speed rotors are integrated with the rear hub assembly and cannot be disassembled.
