Combination Meter Terminal Check

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Measure the voltage between terminals using a voltmeter.

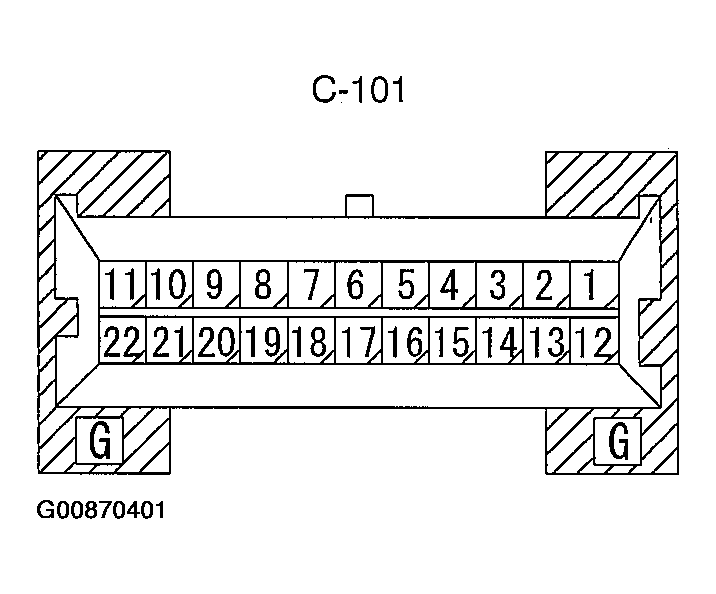

Fig 1: Identifying Combination Meter Terminal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The combination meter connector is fixed on the instrument panel directly, so you can not take measurement by backprobing.

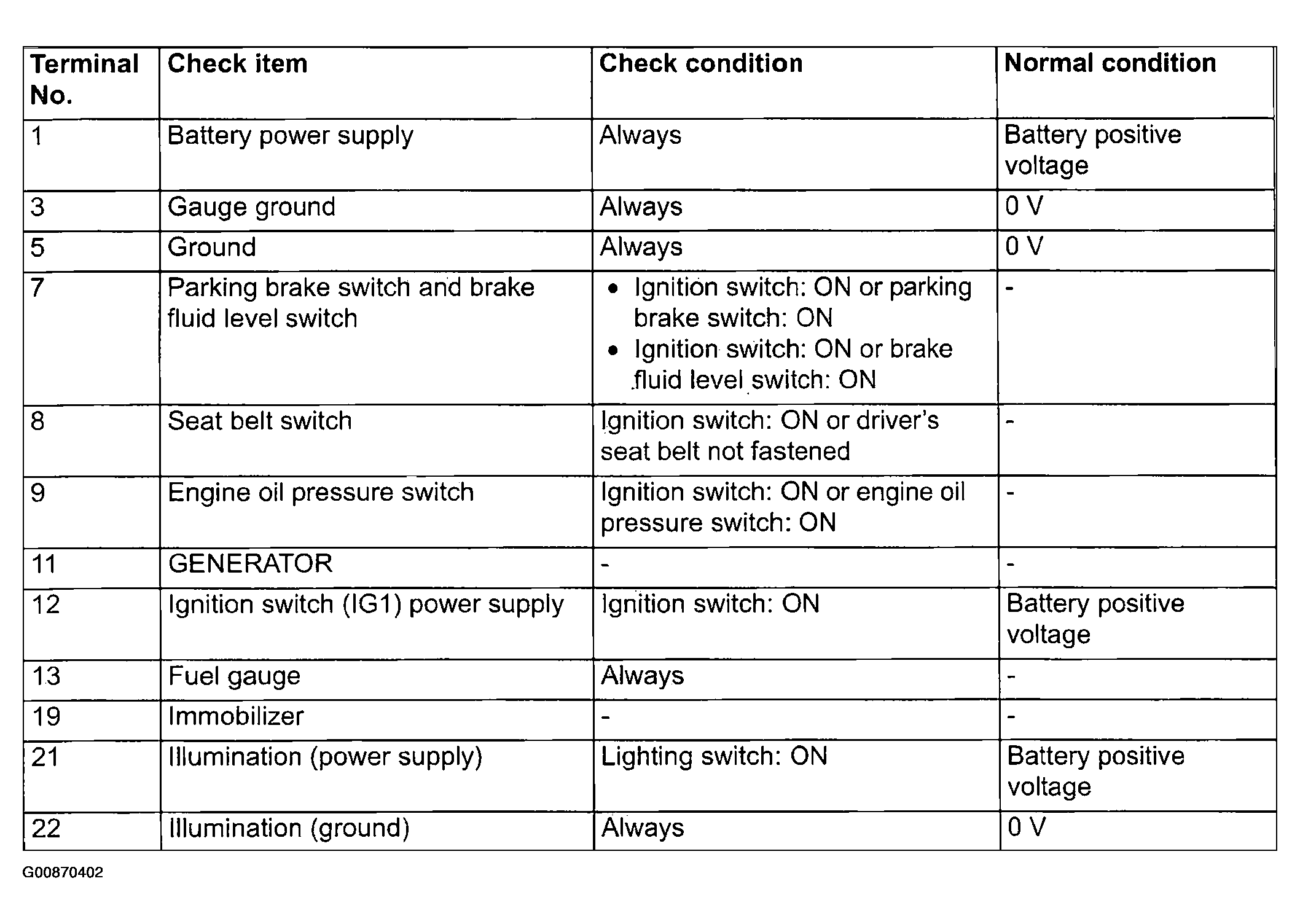

Fig 2: Combination Meter Terminal Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Never take a measurement at terminals 14 and 15. If you do this, the CAN bus lines will be impaired.
