Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
During diagnosis, a DTC code associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC code(s). If DTC code(s) are set, erase them all.

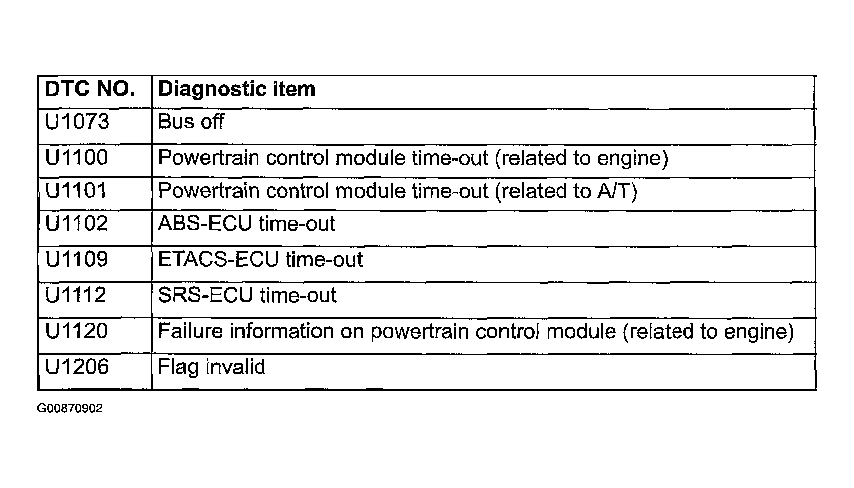

DIAGNOSTIC TROUBLE CODE (DTC) LIST
| DTC | Description |
|---|---|
| U1073 | BUS OFF |
| U1100 | POWERTRAIN CONTROL MODULE TIME-OUT (RELATED TO ENGINE) |
| U1101 | POWERTRAIN CONTROL MODULE TIME-OUT (RELATED TO A/T) |
| U1102 | ABS-ECU TIME-OUT |
| U1109 | ETACS-ECU TIME-OUT |
| U1112 | SRS-ECU TIME-OUT |
| U1120 | FAILURE INFORMATION ON POWERTRAIN CONTROL MODULE (RELATED TO ENGINE) |
| U1206 | FLAG INVALID |
