Past trouble
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
- Carry out diagnosis with particular emphasis on connector(s) or wiring harness in the CAN bus lines between the ABS-ECU and the combination meter, and the power supply system to the ABS-ECU. For diagnosis procedures, refer to "HOW TO TREAT PAST TROUBLE " (Refer to HOW TO USE TROUBLESHOOTING/INSPECTION SERVICE .)
NOTE:

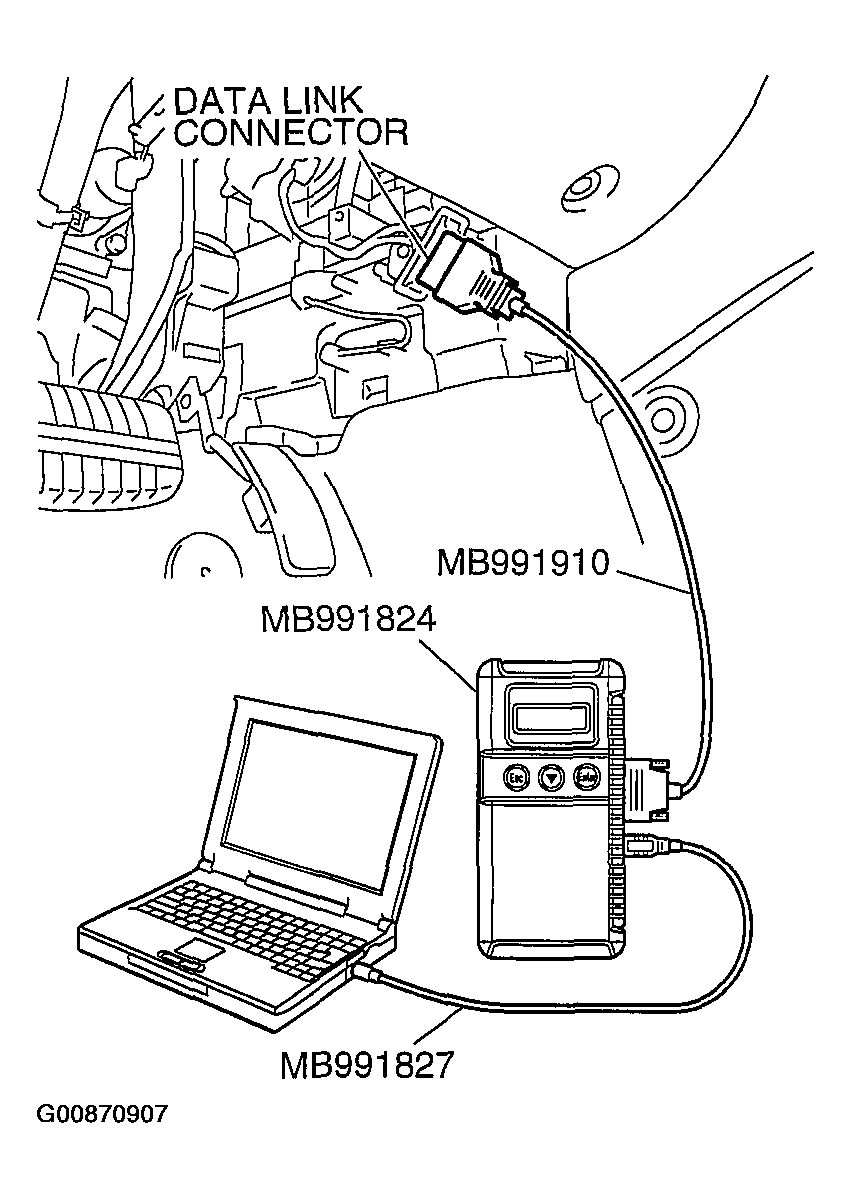

For a past trouble, you may not find it by the MUT-III CAN bus diagnostics even if there is any failure in CAN bus lines. In this case, refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.)
and check the CAN bus lines. You can narrow down the possible cause of the trouble by referring to the DTC, which is set regarding the CAN communication-linked ECUs (Refer to CAN BUS DIAGNOSTICS TABLE
).
