DTC U1109: ETACS-Ecu Time-Out: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

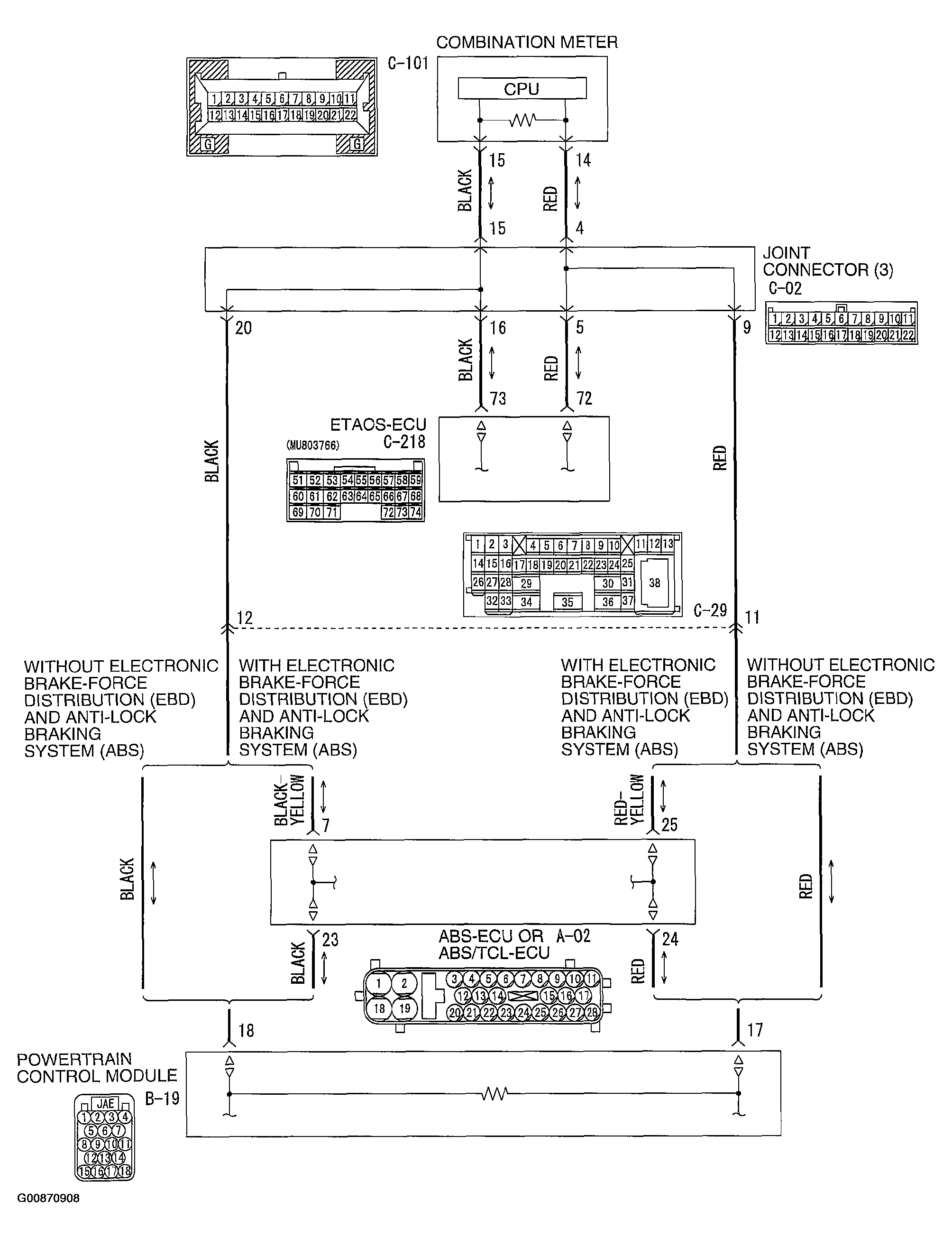

Fig 1: View Of Time-Our During CAN Communication With ETACS-ECU

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

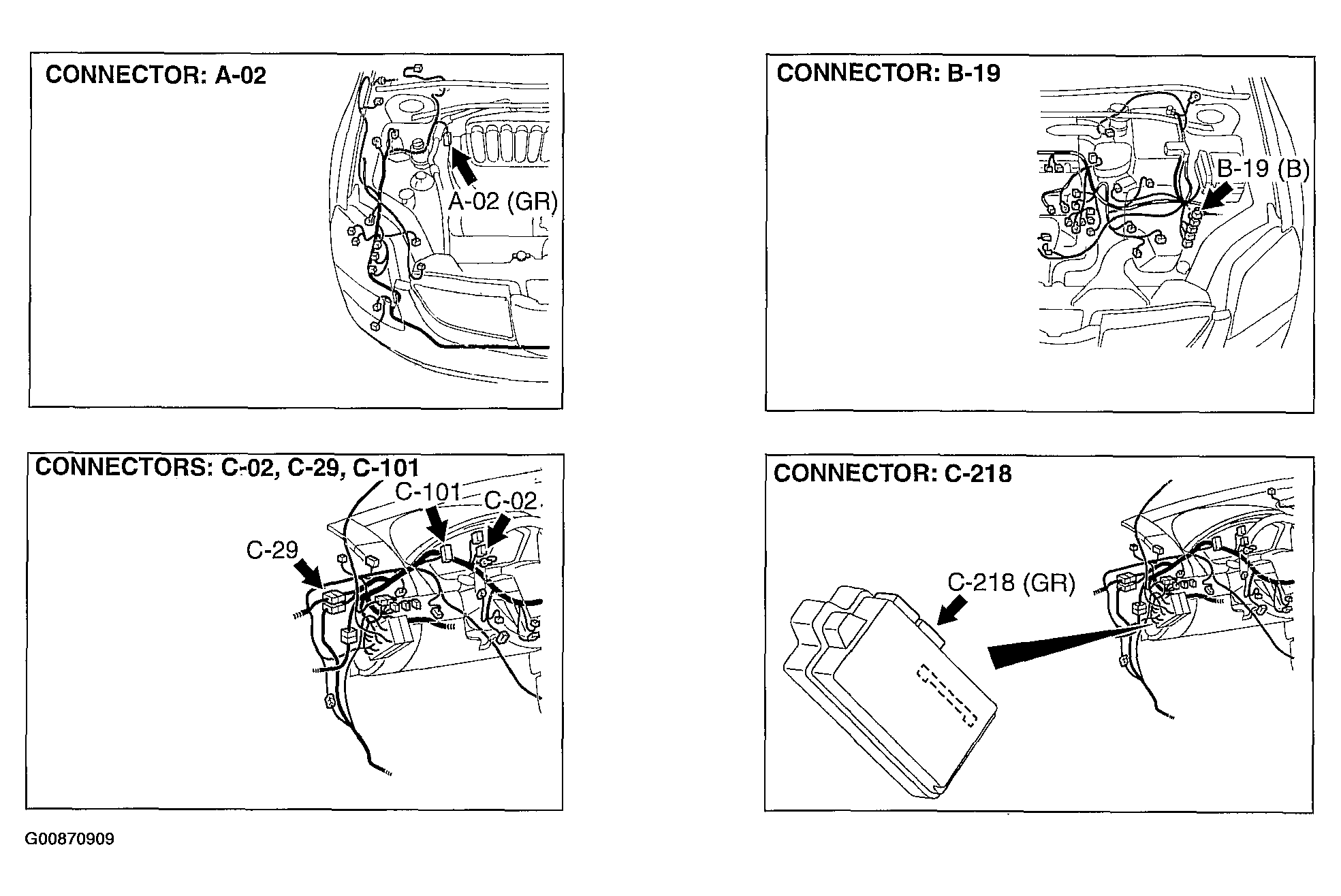

Fig 2: Identifying Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If DTC U1109 is set in the combination meter, diagnose the CAN main bus line.

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.
