Inspection Procedure 8: Tachometer Does Not Work: Notes

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

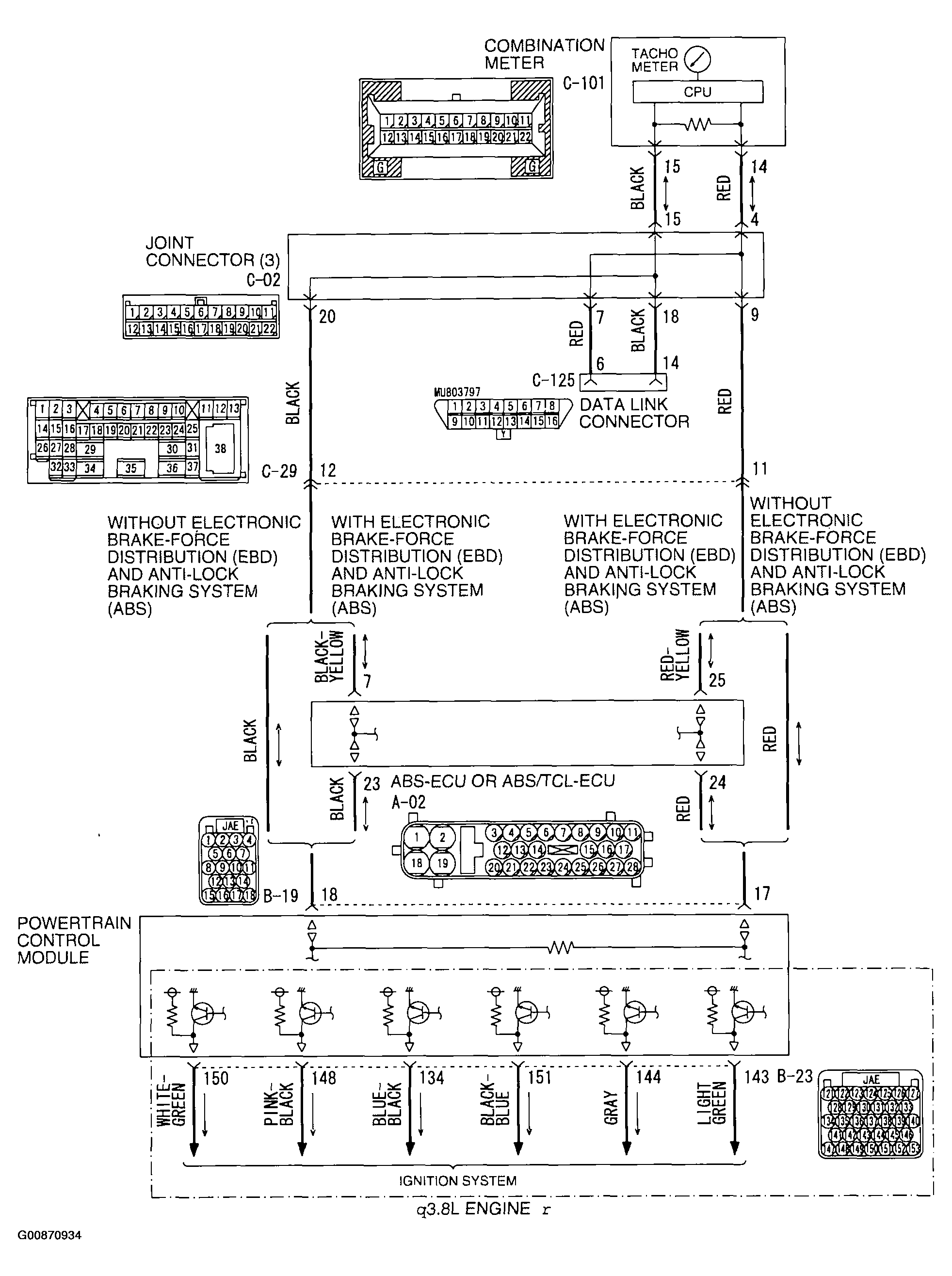

Fig 1: View Of Tachometer Circuit Diagram
G00870934Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

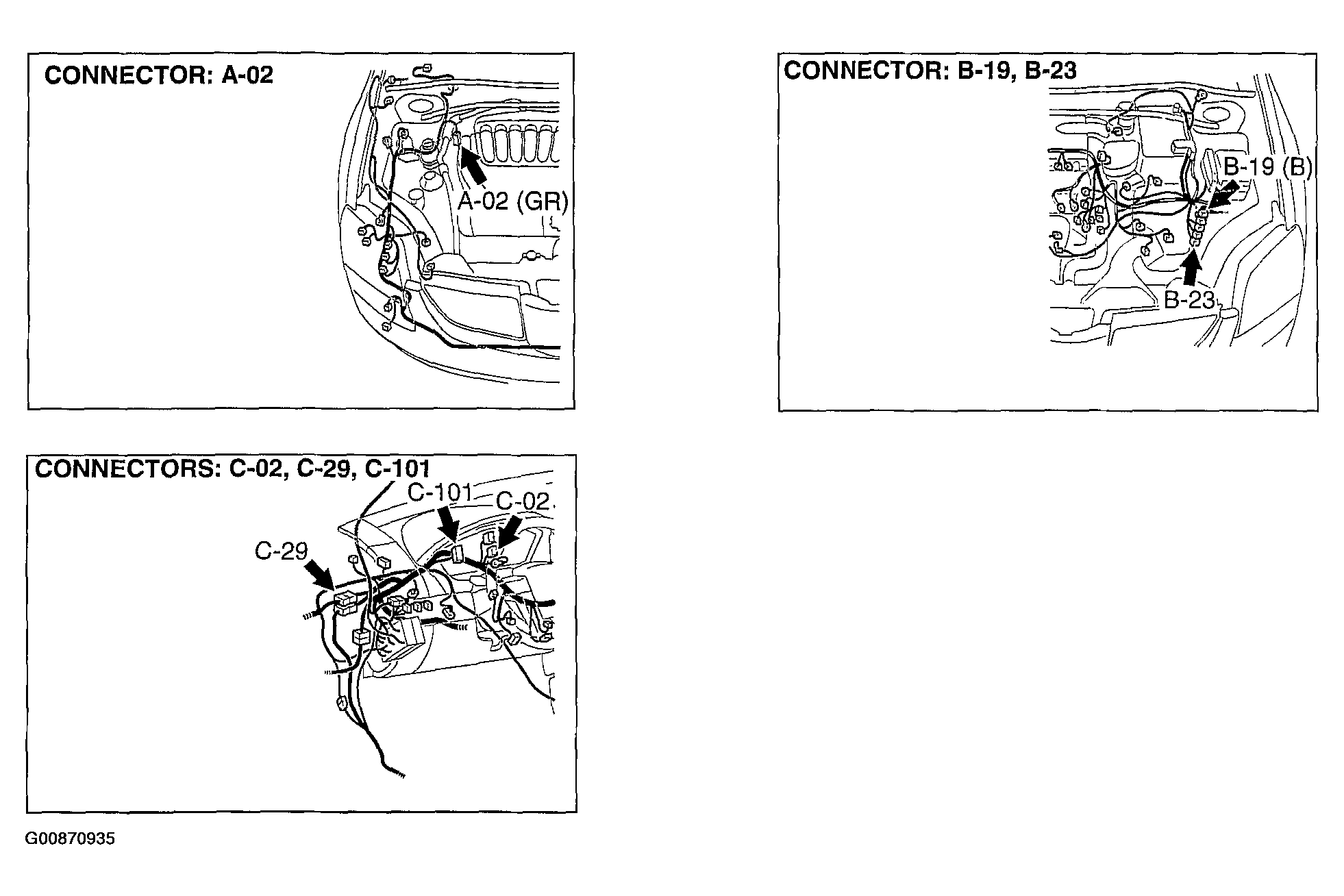

Fig 2: Identifying Connectors
G00870935Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
