Section 51 (Combination Meter Assembly & Vehicle Speed Sensor): General Description
WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

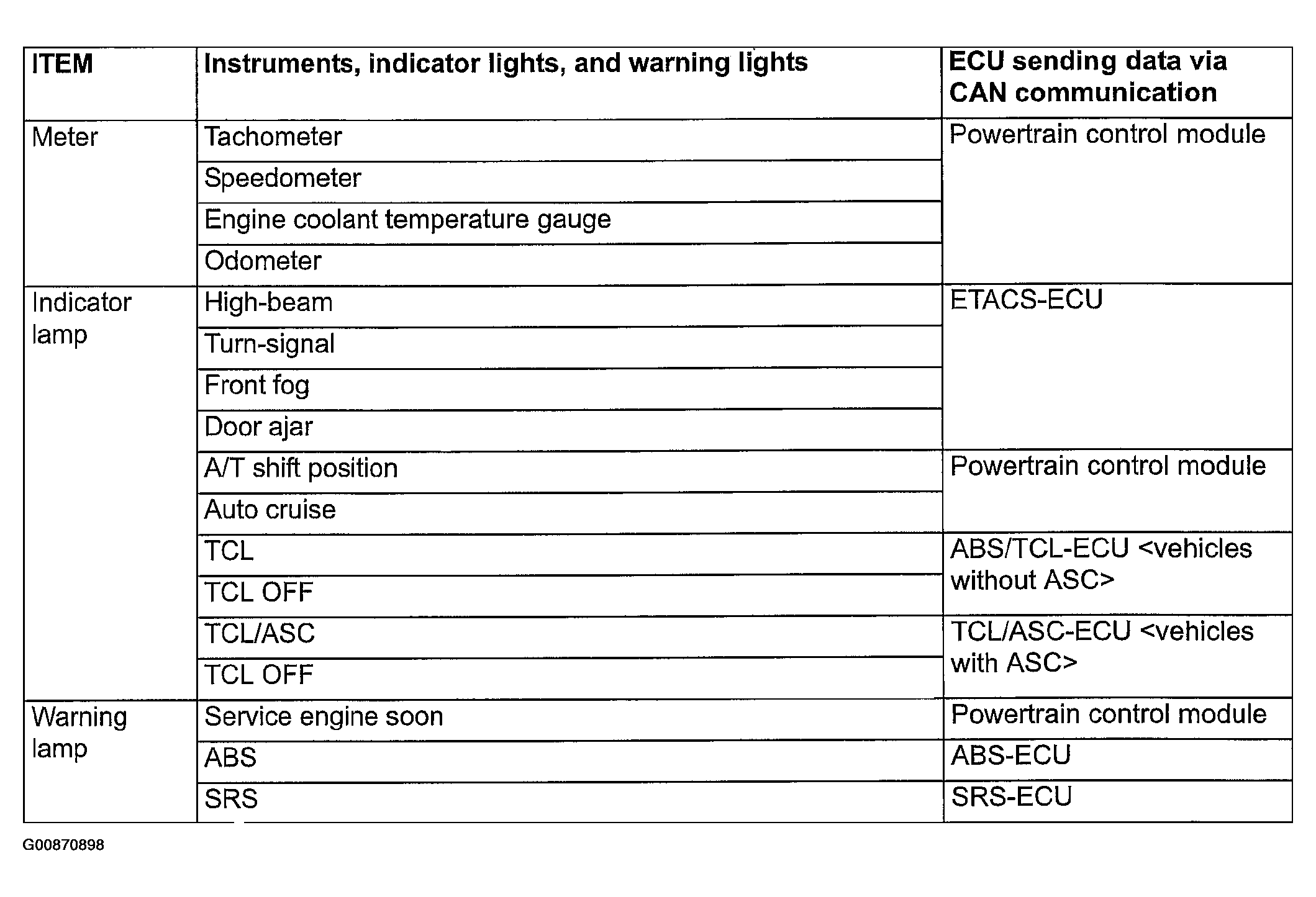

Some of the combination meter indications are based on information from ECUs via CAN bus communication. If there is any failure in the meters connected via the CAN bus communication, diagnose the CAN bus communication system. The following instruments, indicator lights and warning lights in the combination meter are controlled by ECUs via CAN bus communication.
