Fuel Level Sensor Float Height

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).
Standard value:

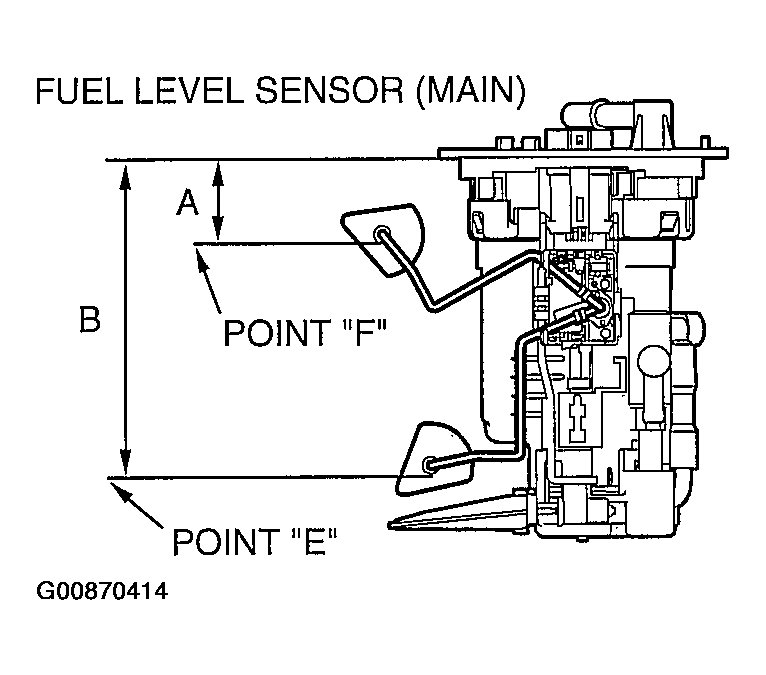

Fig 1: Measuring Fuel Level Sensor Highest Point
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

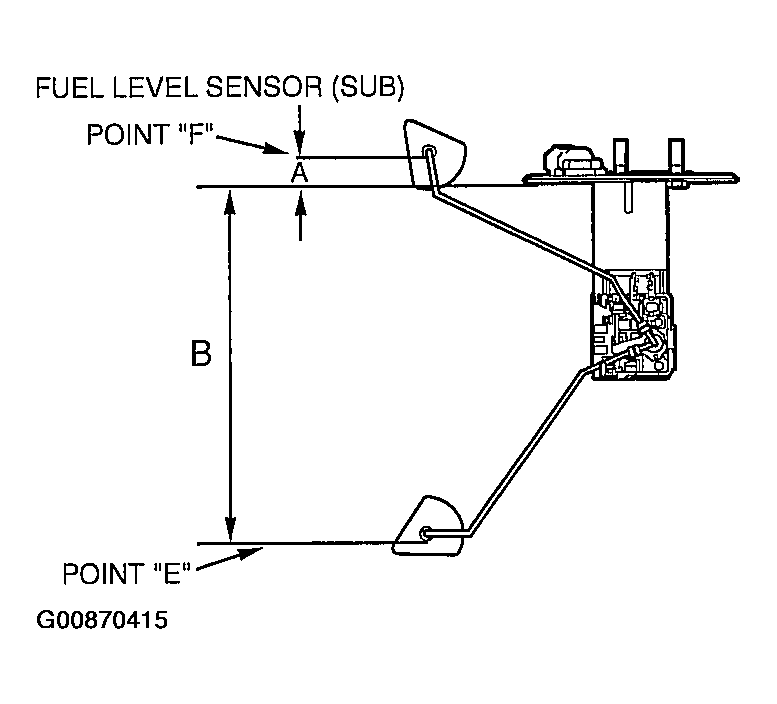

Fig 2: Measuring Fuel Level Sensor Lowest Point
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If any check is not correct, replace the fuel pump module or fuel level sensor (sub).

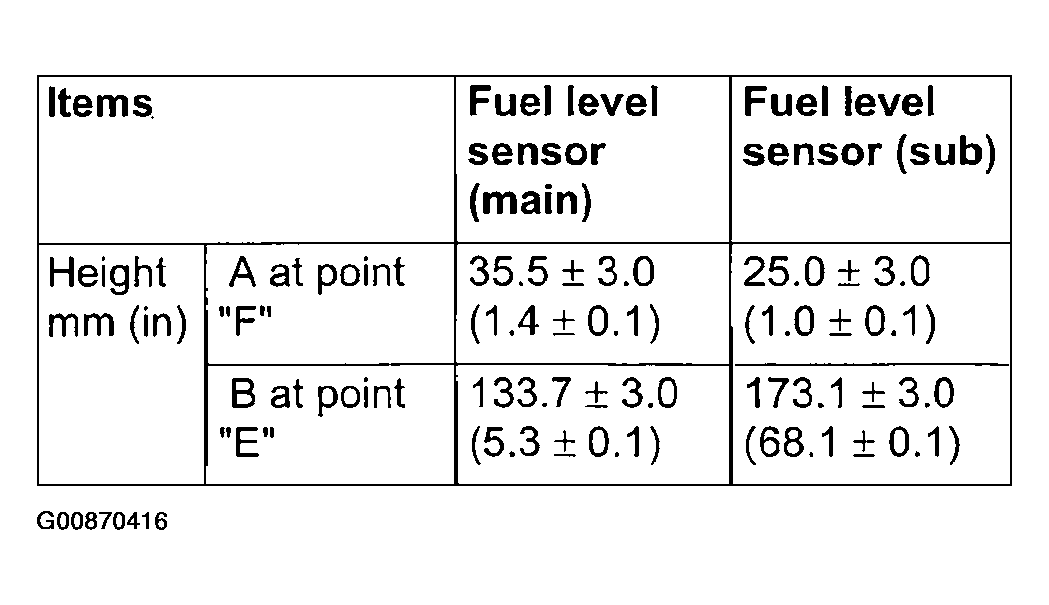

Fig 3: Fuel Level Sensor Float Height
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
