Fuel Level Sensor Resistance

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Check the resistances between fuel level sensor main terminals 1 and 2 as well as sub terminals 1 and 2 of the fuel pump module, respectively.

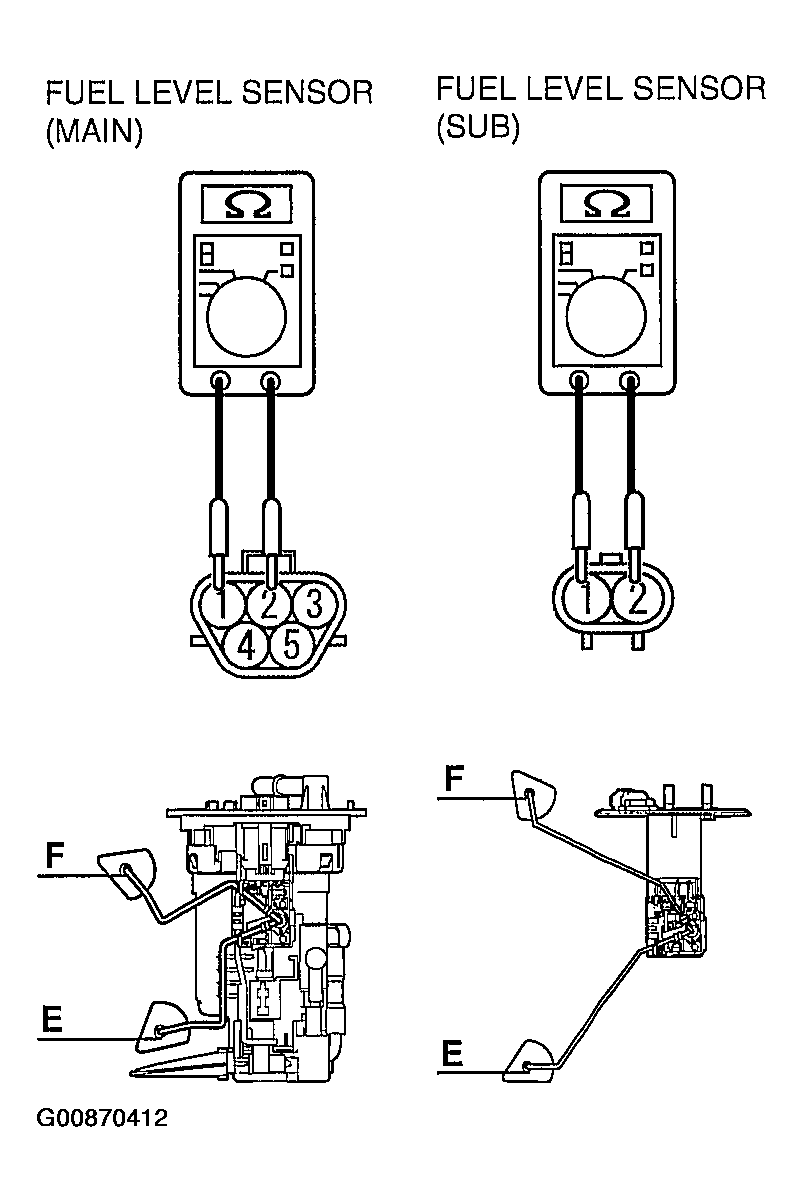

Fig 1: Identifying Fuel Level Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

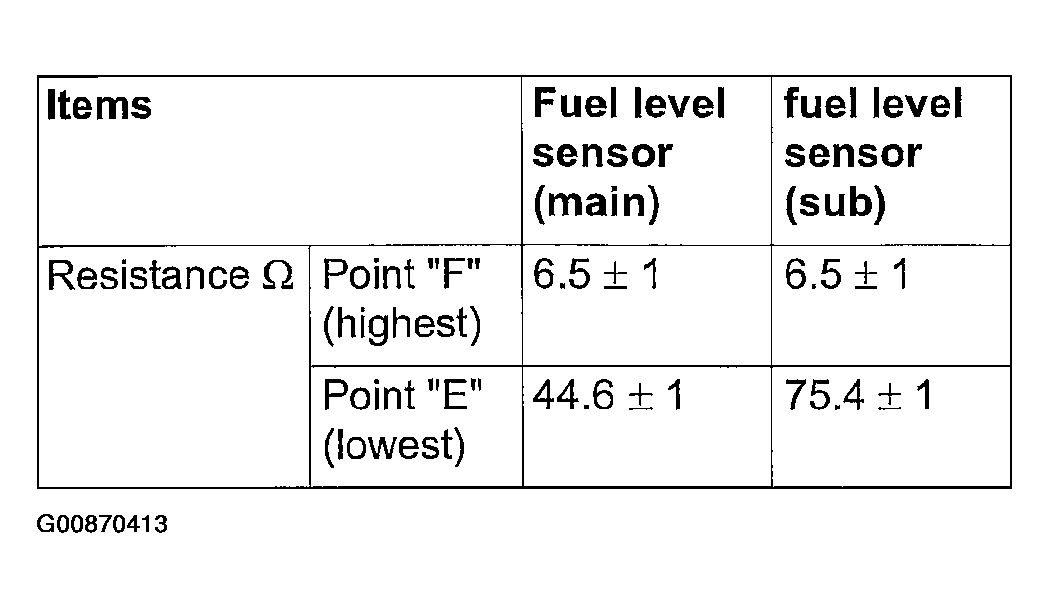

Fig 2: Fuel Level Sensor Resistance Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check that resistance value changes smoothly when the float moves slowly between points.
If all checks are correct, go to fuel unit height check. If any check is not correct, replace the fuel pump module or fuel level sensor (sub).
