INSPECTION PROCEDURE 5: When the TCL Switch is Push On, TCL System dose not Cancelled.: Diagnosis

WARNING: This page is about a different car, the 2004 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Measure the terminal voltage at ABS/TCL-ECU connector A-02.
    1. Disconnect all the connectors from the ABS/TCL-ECU.

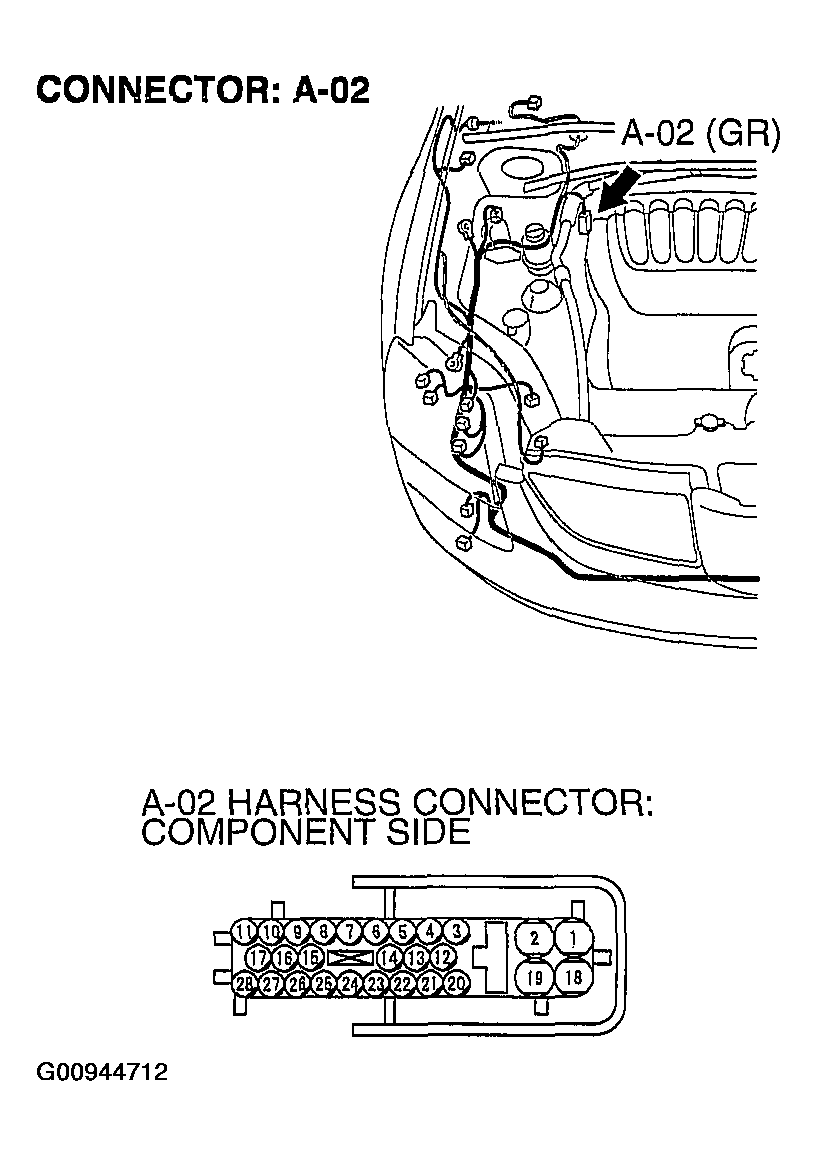

      Fig 1: Identifying ABS/TCL-ECU Connector A-02
      G00944712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Connect special tool MB991970 between the ABS/TCL-EUC and the body-side harness connector.
    3. Turn the ignition switch to the "ON" position.
    4. Measure the terminal voltage between special tool MB991970 connector terminal 6 (ABS/TCL-ECU connector A-02 terminal 6) and ground.
      • When the TCL switch is not pressed, the voltage should measure battery positive voltage (approximately 12 volts).
      • When the TCL switch is pressed, the voltage should measure 1 volt or less.
    5. Turn the ignition switch to the "LOCK" (OFF) position.
    6. Disconnect special tool MB991970 between the ABS/TCL-ECU and the body-side harness connector.
    7. Connect all the connectors from the ABS/TCL-ECU.

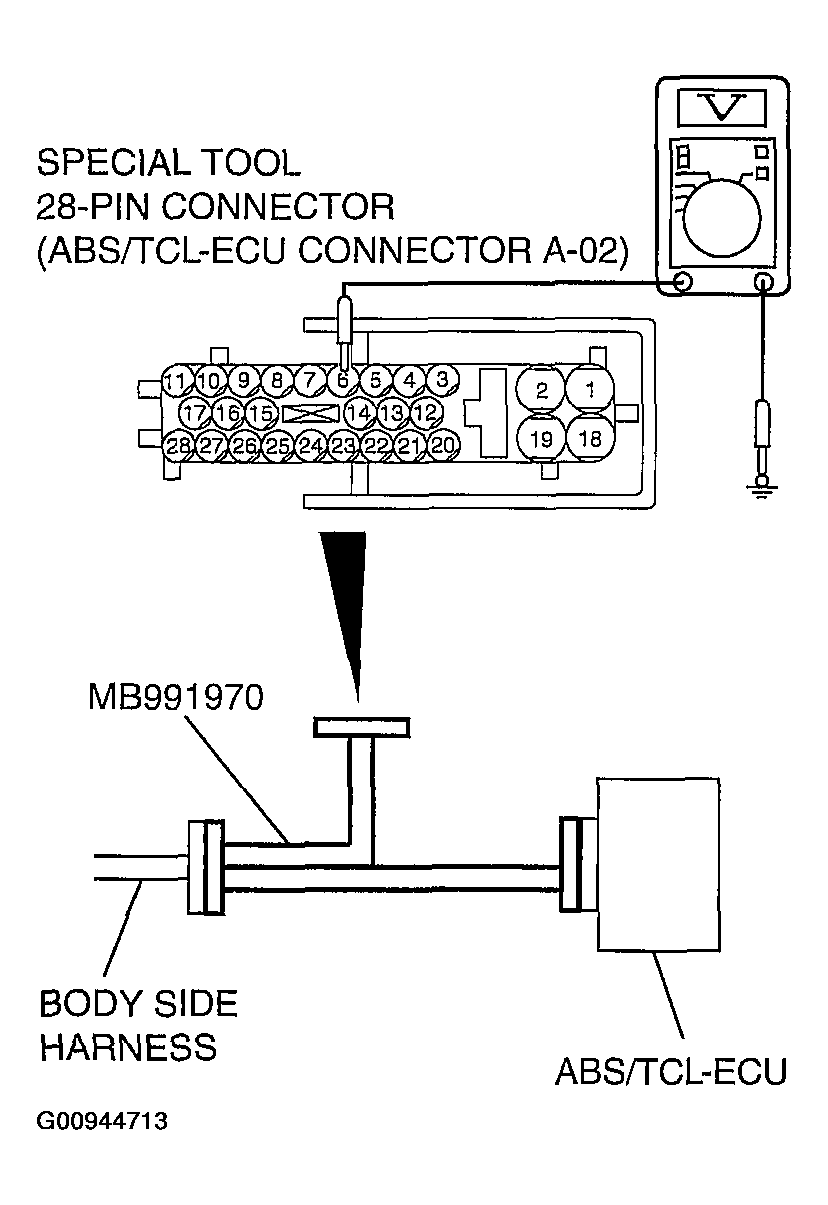

      Fig 2: Measuring Voltage Between Special Tool And Ground
      G00944713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

      Q: Is the terminal voltage battery terminal voltage when the TCL switch is not pressed, and is the terminal voltage 1 volt or less when the TCL switch is pressed?

      1. YES:  Go to  Step 6.
      2. NO:  Go to Step 2.
  2. STEP 2. Check the TCL switch.
    1. Remove the TCL switch (Refer to TCL SWITCH ).
    2. Connect an ohmmeter to the TCL switch between terminals 1 and 2.
    3. Check the continuity between terminals 1 and 2 when the TCL switch is operated.
      • There is no continuity between terminals 1 and 2 when the TCL switch is not pressed.
      • There is continuity between terminals 1 and 2 when the TCL switch is pressed.

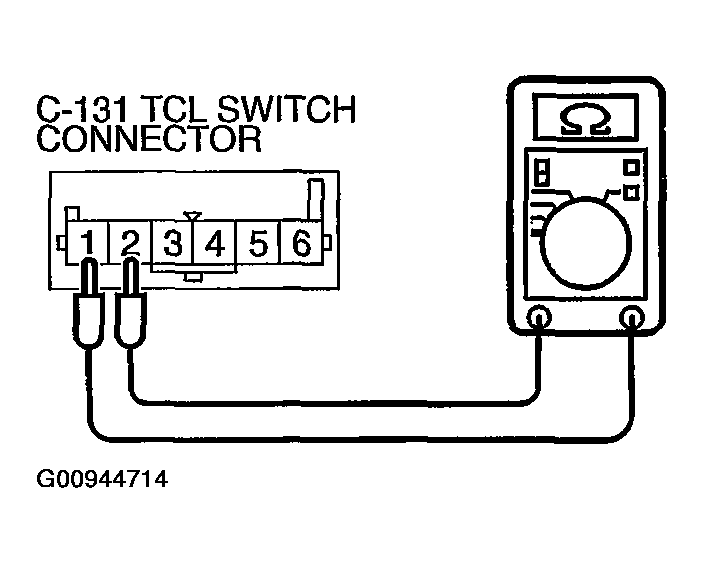

        Fig 3: Checking Continuity Between TCL Switch Terminals 1 And 2
        G00944714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

        Q: Is there no continuity between terminals 1 and 2 when the TCL switch is not pressed, and is there continuity when the TCL switch is pressed?

        1. YES:  Install the TCL switch (Refer to TCL SWITCH ). Then go to  Step 6.
        2. NO:  Replace the TCL switch (Refer to TCL SWITCH ). Then go to  Step 7.
  3. STEP 3. Check ABS/TCL-ECU connector A-02, intermediate connector C-29 and TCL switch connectors C-131 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

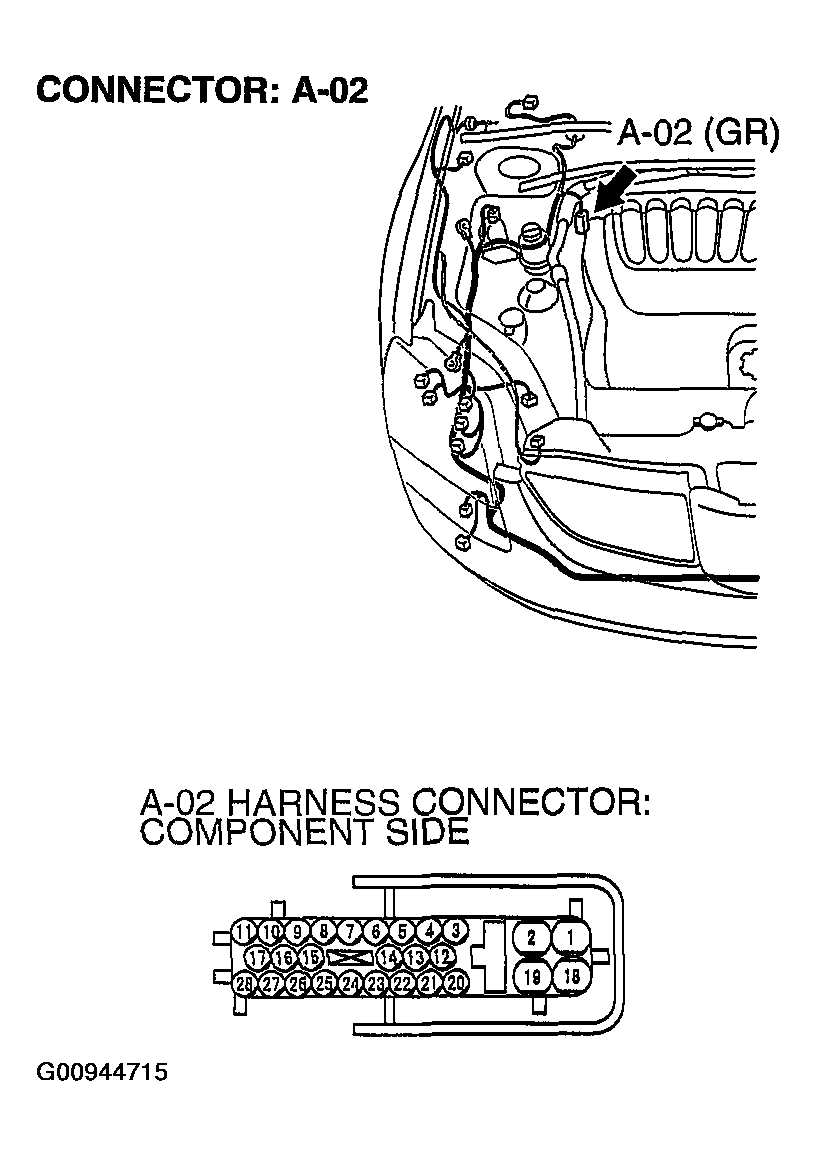

    Fig 4: Identifying Connector A-02
    G00944715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

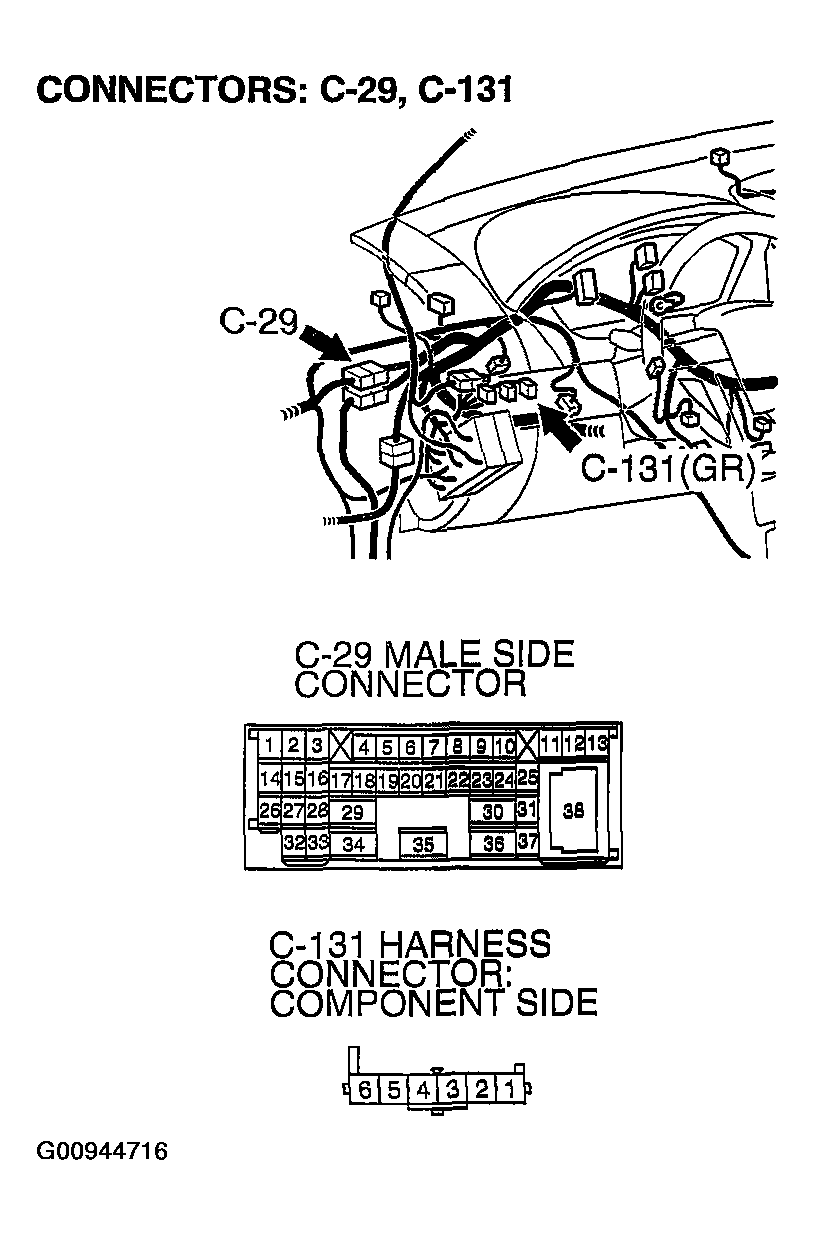

    Fig 5: Identifying Connectors C-29 & C-131
    G00944716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are there connectors and terminals in good condition?

    1. YES:  Go to Step 4.
    2. NO:  Repair or replace the faulty connector (Refer to HARNESS CONNECTOR INSPECTION ). Then go to  Step 7.
  4. STEP 4. Check the harness wire between ABS/TCL-ECU connector A-02 terminal 6 and TCL switch connector C-131 terminal 1 for damage.

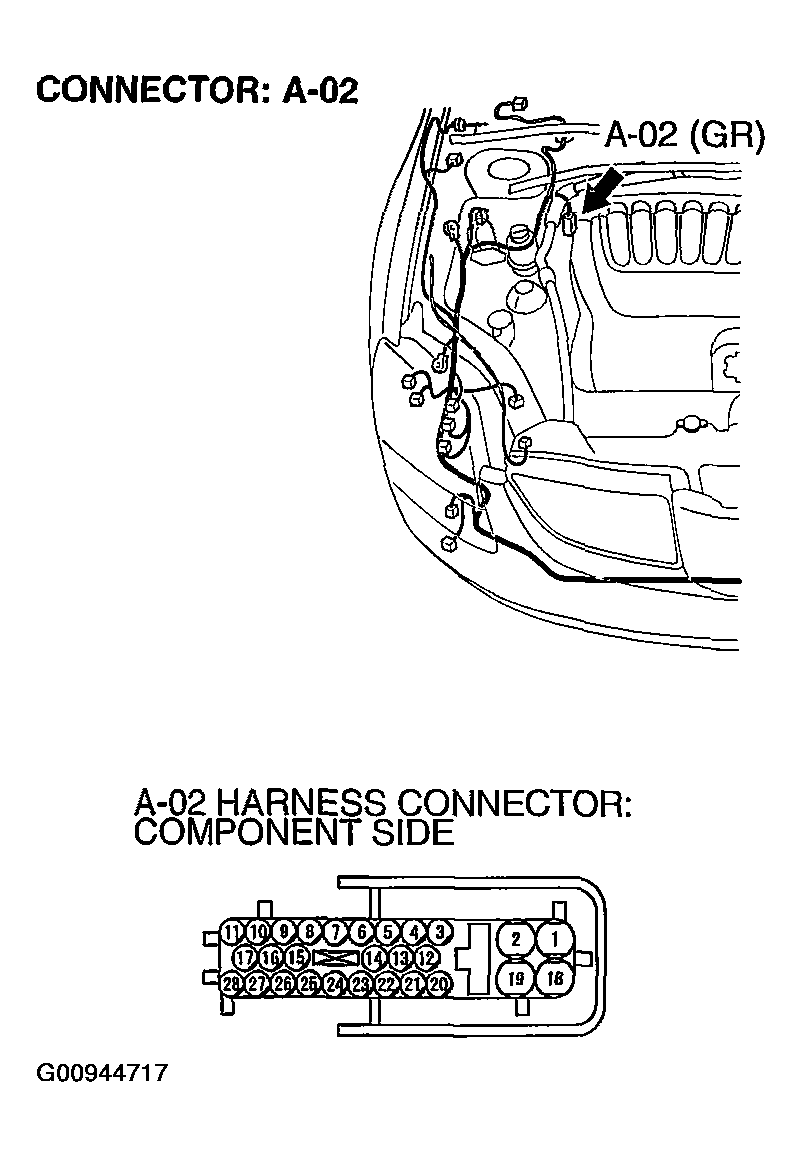

    Fig 6: Identifying ABS/TCL-ECU Connector A-02
    G00944717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

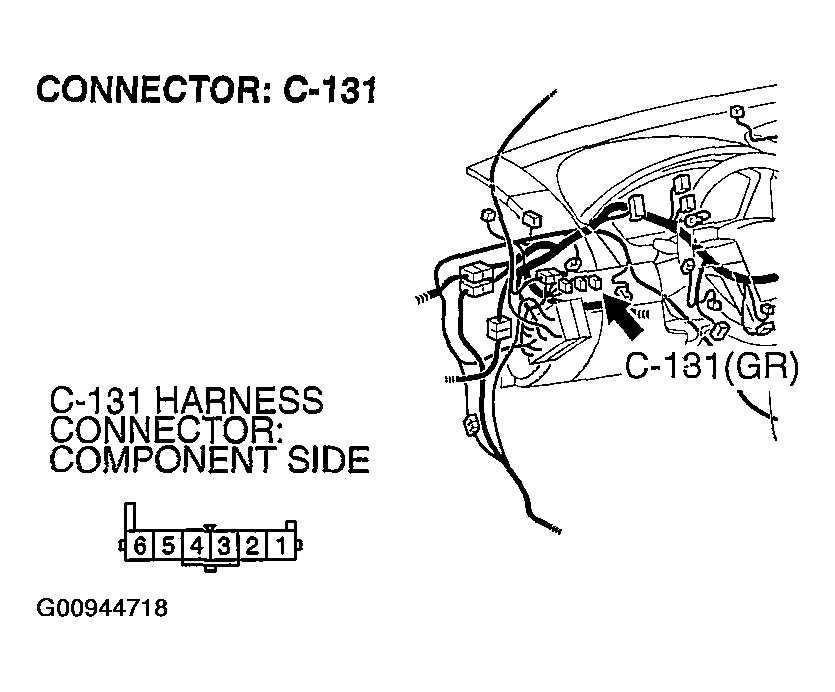

    Fig 7: Identifying TCL Switch Connector C-131
    G00944718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Are there harness wires in good condition?

    1. YES:  Go to Step 5.
    2. NO:  Repair the damaged harness wire. Then go to  Step 7.
  5. STEP 5. Check the harness wire between TCL switch connector C-131 terminal 2 and ground for damage.

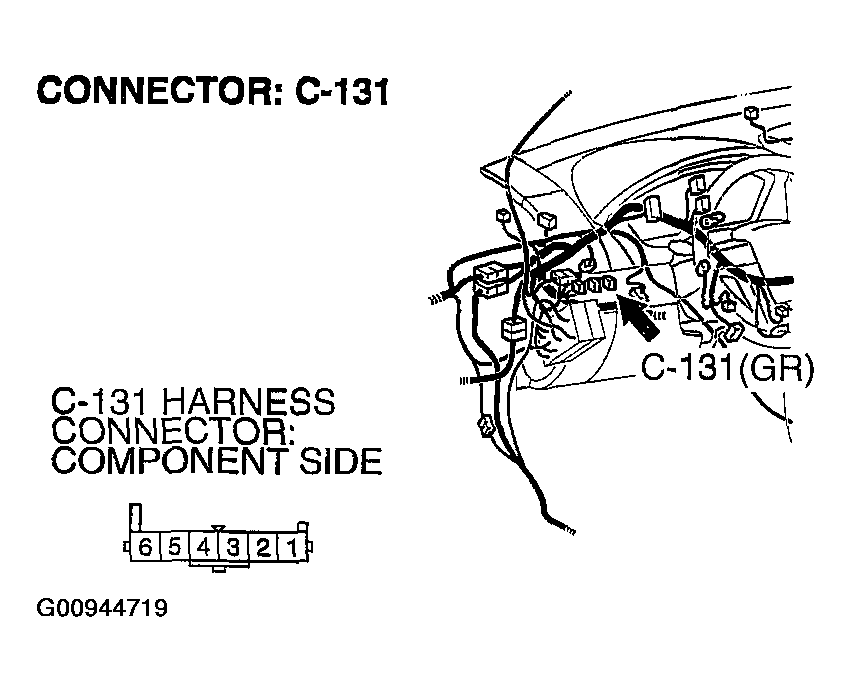

    Fig 8: Identifying TCL Switch Connector C-131
    G00944719Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

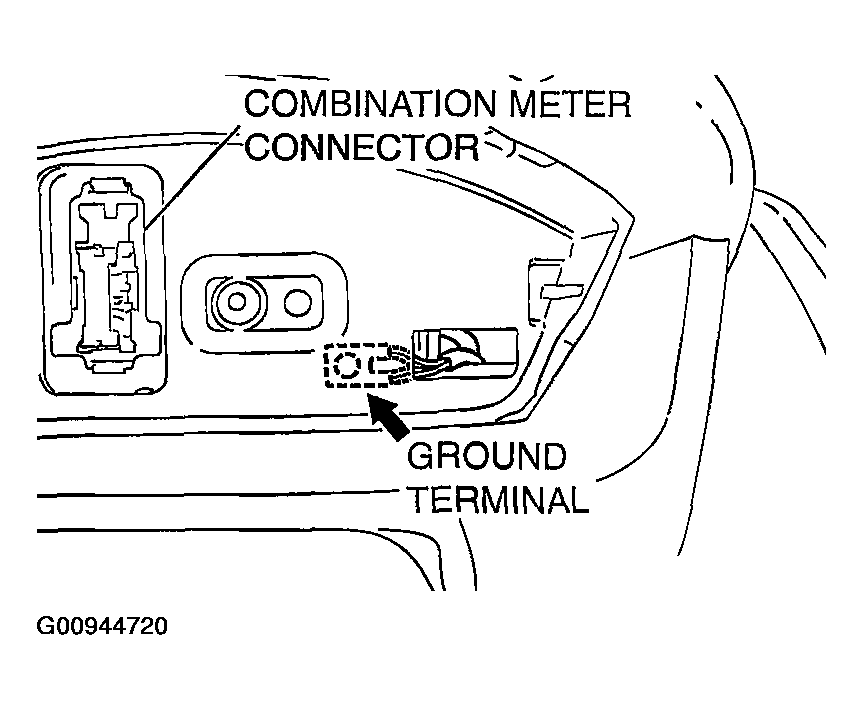

    Fig 9: Identifying Ground
    G00944720Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Q: Is the harness wire in good condition?

    1. YES:  Go to Step 6.
    2. NO:  Repair the damaged harness wire. Then go to  Step 7.
  6. STEP 6. Retest the system

    Q: Dose TCL system cancelled, when the TCL switch is push on?

    1. YES:  It can be assumed that this malfunction is intermittent (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
    2. NO:  Replace the hydraulic unit (integrated with ABS/TCL-ECU) (Refer to HYDRAULIC UNIT ). Then go to Step 7.
  7. STEP 7. Retest the system

    Q: Dose TCL system cancelled, when the TCL switch is push on?

    1. YES:  The procedure is complete.
    2. NO:  Return to  Step 1.
