Starter Relay Check

WARNING: This page is about a different variant/trim than selected.

For starter relay location see Fig 1 .

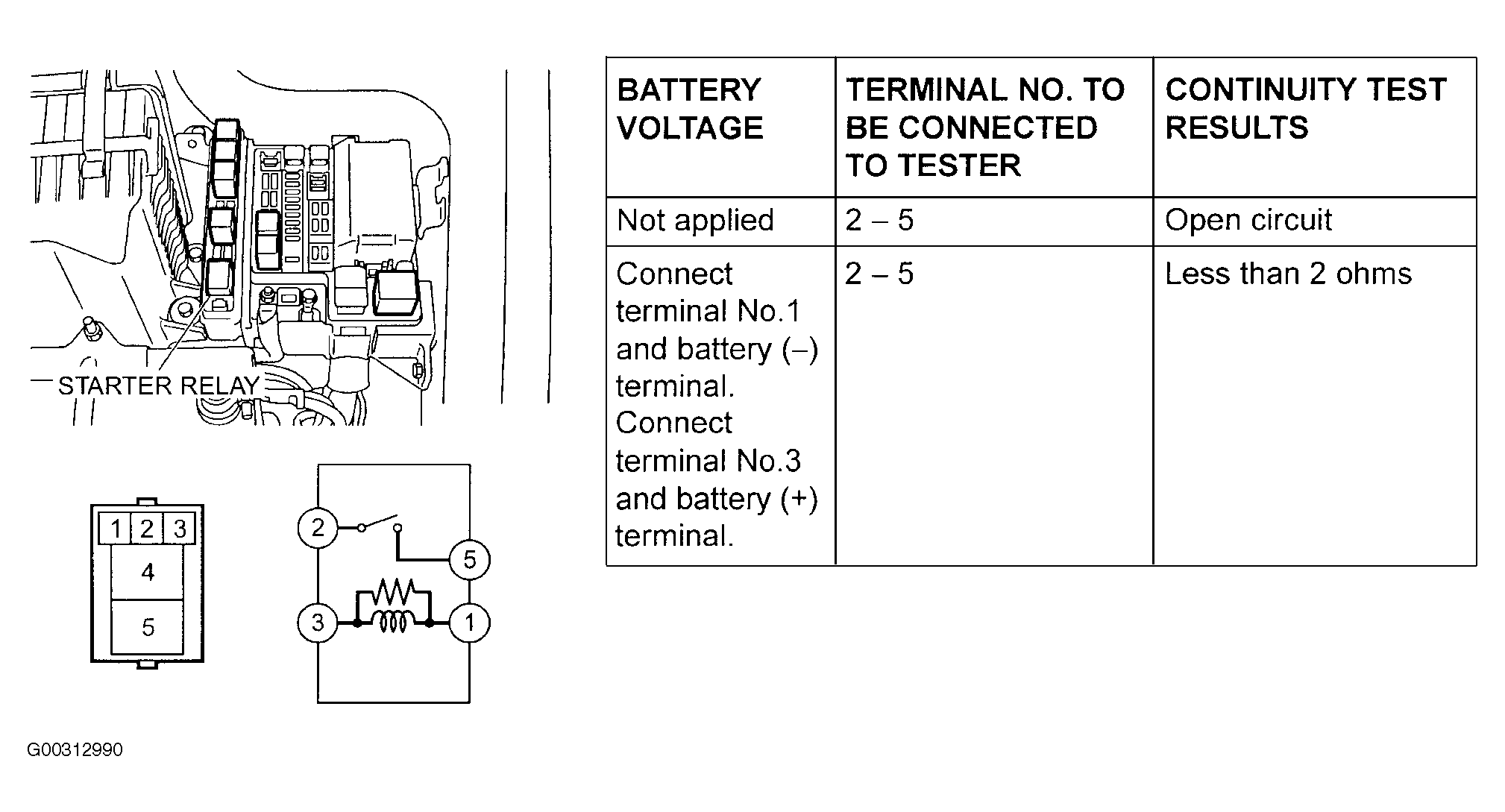

Fig 1: Testing Starter Relay
G00312990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
