Sectional View (Vehicles With Helical Gear LSD)

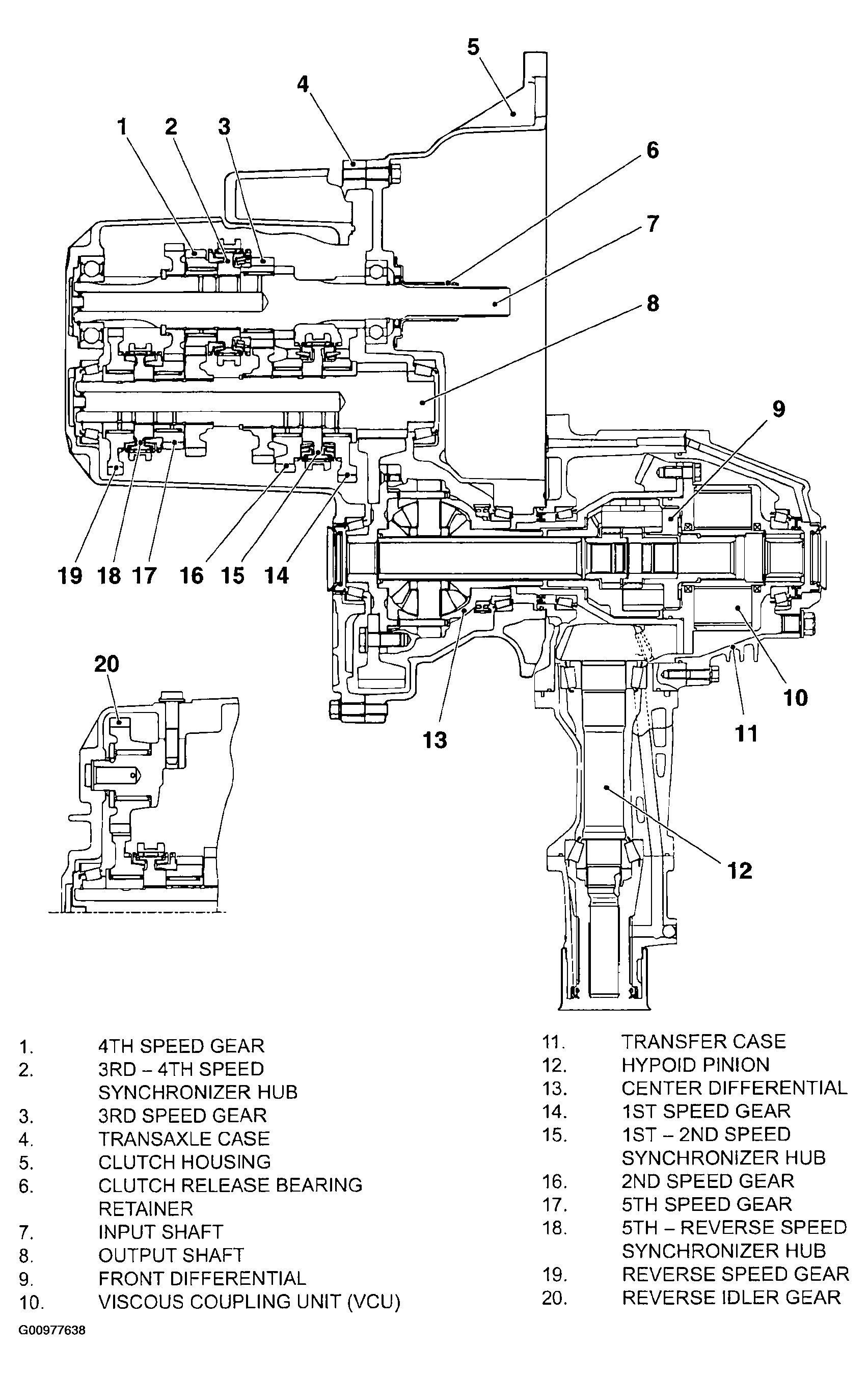

Fig 1: Identifying Sectional View(With LSD)
G00977638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
